CD1632-50 Isolation Transformer Specification

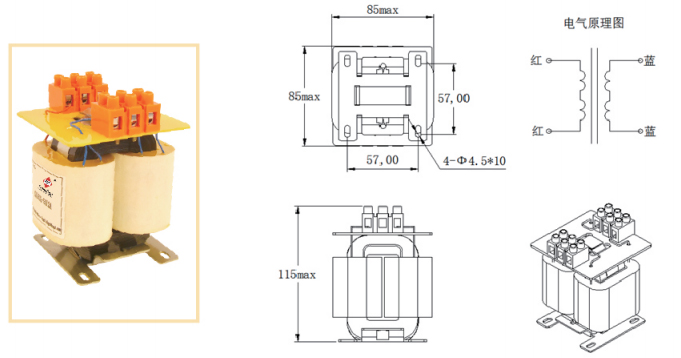

Dimensions
Parameters
| Iterm |
Parameters |
||
| CD1632-5011A | CD1632-5012A | CD1632-5013A | |
| Primary side voltage | 1000V/50Hz | 750V/50Hz | 500V/50Hz |
| Secondary side voltage |
100V |
||
| Maximum Capacity |
50VA |
||
| Insulation resistance |
≥100MΩ(DC1000V) |
||
| Electric Strength |
Primary side and secondary side to the ground: AC3000V/50Hz/60s/1min, Io≤5mA Primary side to secondary side: AC3000V/50Hz/60s, Io≤5mA |
||
| Insulation endurance class |
B Class |
||
| Type of cooling |
Dry self-cooling |
||
| Temperature rise |
≤50K(environment temperature45℃) |
||
Product use environment
4.1 Working environment temperature: -5-45℃
4.2 Storage Temperature：-20-45℃
4.3 Working relative humidity: ≤90%，Non-congealing cream.
4.4 Working altitude: 2000m below
Product standards
5.1 IEC60076-11: 2016 dry transformer
5.2 GB/T1094.11-2007 Dry type transformer
Precautions for installation and use
6.1 Check whether the air cooling facilities are good before reactor operation;
6.2 Before operation of the reactor, check the connection bolts, whether the mounting bolts are tight, and whether there are foreign objects on the reactor;
6.3 During the reactor maintenance, it is forbidden to change the core air gap and winding position;
6.4 Reactor core and metal structural parts should be reliably connected to the ground.
