CDL21-303.5TX Reactor

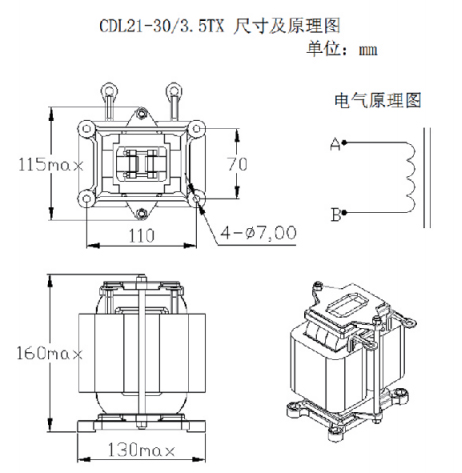

Dimensions
Parameters
| Iterm |
Parameter |
| System voltage |
3*380V/50hZ |
| Rated current |
30A 550A |
| Rated inductance |
3.5mH±10% |
| Insulation resistance |
﹥100MΩ(DC1000V) |
| Electric Strength | Winding to core: AC2000V/50Hz/60s, leakage current ≤ 5mA |
| Insulation endurance class |
B Class |
| Type of cooling |
Natural cooling |
| temperature rise |
≤90K(@rated current) |
Product use environment
4.1 Working environment temperature: -5-45℃
4.2 Storage Temperature：-5-45℃
4.3 Working relative humidity: 95%, no condensation cream
4.4 Working altitude: 2000m below
Product standards
5.1 IEC60076-6:2007 reactor
5.2 GB/T1094.6-2011 reactor

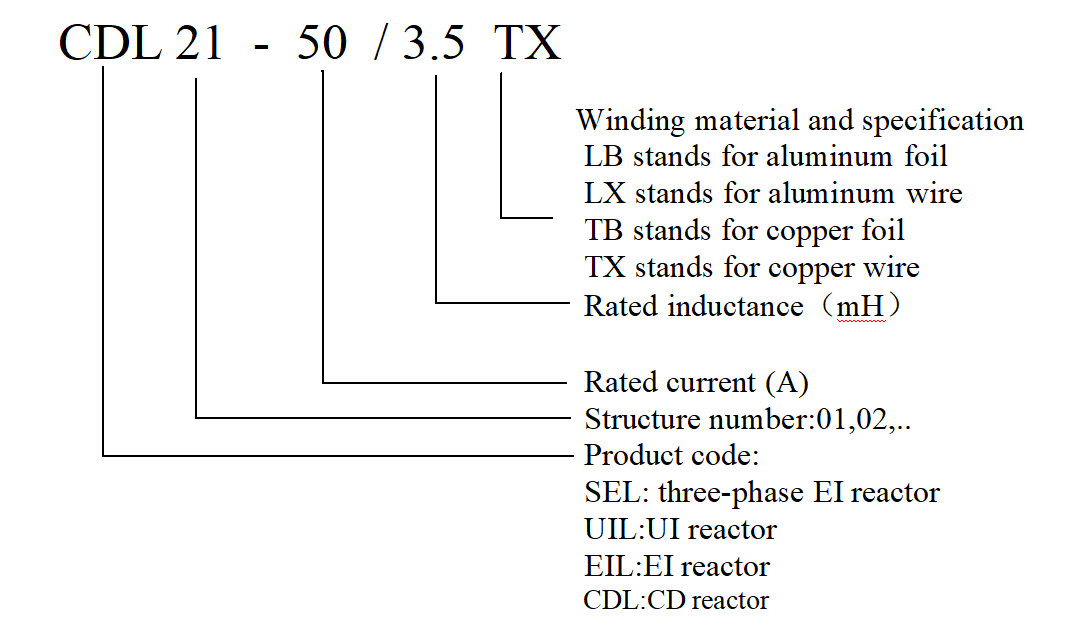

Naming rule
Precautions for installation and use
7.1 Check whether the air cooling facilities are good before reactor operation;
7.2 Before operation of the reactor, check the connection bolts, whether the mounting bolts are tight, and whether there are foreign objects on the reactor;
7.3 During the reactor maintenance, it is forbidden to change the core air gap and winding position;
7.4 Reactor core and metal structural parts should be reliably connected to the ground.
