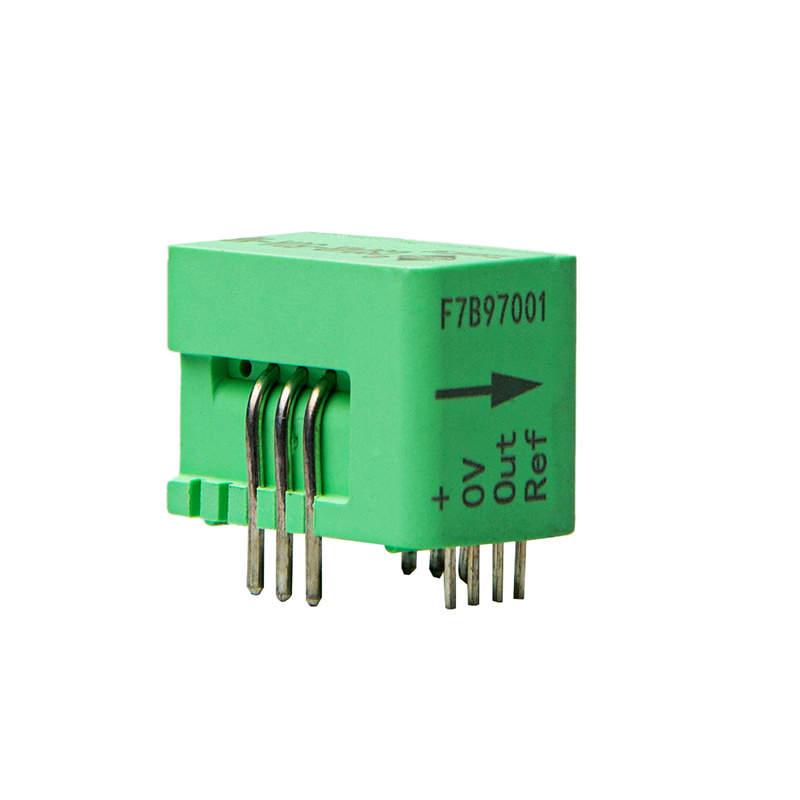

CS04R-A-NP Series Current Sensor(Transducer)

Fluxgate current sensor, with board plug design, suitable for isolated DC, AC pulse and any irregular current measurement; The product has fast response time, high precision, wide bandwidth and strong anti-interference ability.

product details

Features

◆ Closed loop current sensor using the Fluxgate technology

◆ Galvanic separation between the primary and the secondary circuit

◆ Low power consumption

◆ Wide range

◆ No insertion loss

◆ Raw materials recognized according to UL 94-V0

Application

◆ AC variable speed and servo motor drives

◆ Uninterruptible Power supplies (UPS)

◆ Static converters for DC motor drives

◆ Switched Mode Power Supplies (SMPS)

◆ Solar Inverter Power Supplies

Model list

Product MODEL
Model	Rated input current I_PN(A)	Measuring range I_P_M(A)
CS04- 6A-NP	6	±20
CS04-15A-NP	15	±51
CS04-25A-NP	25	±85
CS04-50A-NP	50	±150
