Reactor
Description Of The Harmonic Elimination Reactor

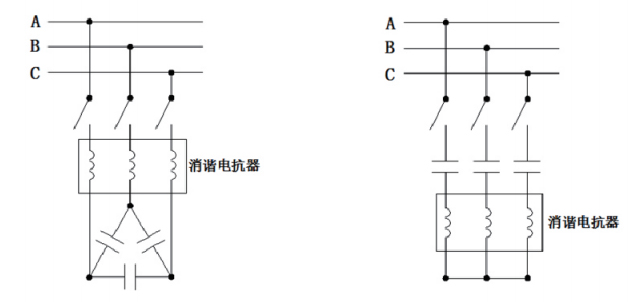

Two modes of connection of the antiharmonic reactor

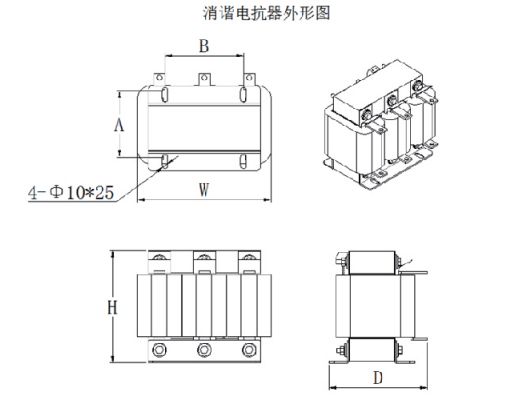

Dimensions
Parameters
|
Model |
Condenser capacity (KVAR) |
Rated voltage |
Reactance rate |
Rated current(A) |
Rated inductance（mH） |
Overall dimensions W*D*H(mm) |
Mounting dimension A*B(mm) |
|
CKSG24-15/480-7LB |
15 |
3*480V/50Hz |
7% |
18.05 |
3.42 |
210*155*150 |
105*100 |
|
CKSG24-20/480-7LB |
20 |
3*480V/50Hz |
7% |
24.06 |
2.57 |
210*155*150 |
105*100 |
|
CKSG25-25/480-7LB |
25 |
3*480V/50Hz |
7% |
30.08 |
2.05 |
245*140*200 |
90*120 |
|
CKSG25-30/480-7LB |
30 |
3*480V/50Hz |
7% |
36.1 |
1.71 |
245*140*200 |
90*120 |
|
CKSG26-40/480-7LB |
40 |
3*480V/50Hz |
7% |
48.13 |
1.28 |
245*140*200 |
90*120 |
|
CKSG27-50/480-7LB |
50 |
3*480V/50Hz |
7% |
60.17 |
1.03 |
245*165*200 |
115*140 |
|
CKSG28-60/480-7LB |
60 |
3*480V/50Hz |
7% |
72.2 |
0.86 |
245*170*200 |
125*140 |
|
CKSG29-70/480-7LB |
70 |
3*480V/50Hz |
7% |
84.23 |
0.73 |
245*175*200 |
130*140 |
|
CKSG30-80/480-7LB |
80 |
3*480V/50Hz |
7% |
96.27 |
0.64 |
265*175*200 |
125*140 |
|
CKSG31-90/480-7LB |
90 |
3*480V/50Hz |
7% |
108.3 |
0.57 |
265*185*200 |
135*140 |
|
CKSG32-100/480-7LB |
100 |
3*480V/50Hz |
7% |
120.3 |
0.51 |
265*195*200 |
145*140 |
|
CKSG33-30/525-14LB |
30 |
3*480V/50Hz |
14% |
33 |
4.09 |
330*180*220 |
110*140 |
|
CKSG34-60/525-14LB |
60 |
3*480V/50Hz |
14% |
66 |
2.04 |
330*190*220 |
135*140 |
| Iterm |
Parameters |
| Unbalance of three-phase inductance |
≤3% |
| Overload capacity |
1.35 times rated for 1min,1.8 times rated for 30s |
| insulation resistance |
﹥100MΩ(DC1000V) |
| Electric Strength | Winding to core: AC3500V/50Hz/60s, leakage current ≤ 5mA Winding to winding: AC3500V/50Hz/60s, leakage current ≤5mA |
| Insulation endurance class |
F\H Class |
| Type of cooling |
Dry self-cooling |
| temperature rise |
≤90K(@1.35 times rated current) |
| Noise |
≤65dB(power frequency, horizontal distance 1m) |
| Overtemperature protection |
Phase B is equipped with l pcs 135°C normally closed temperature switch and connected to the terminal block |
Product use environment
Product standards

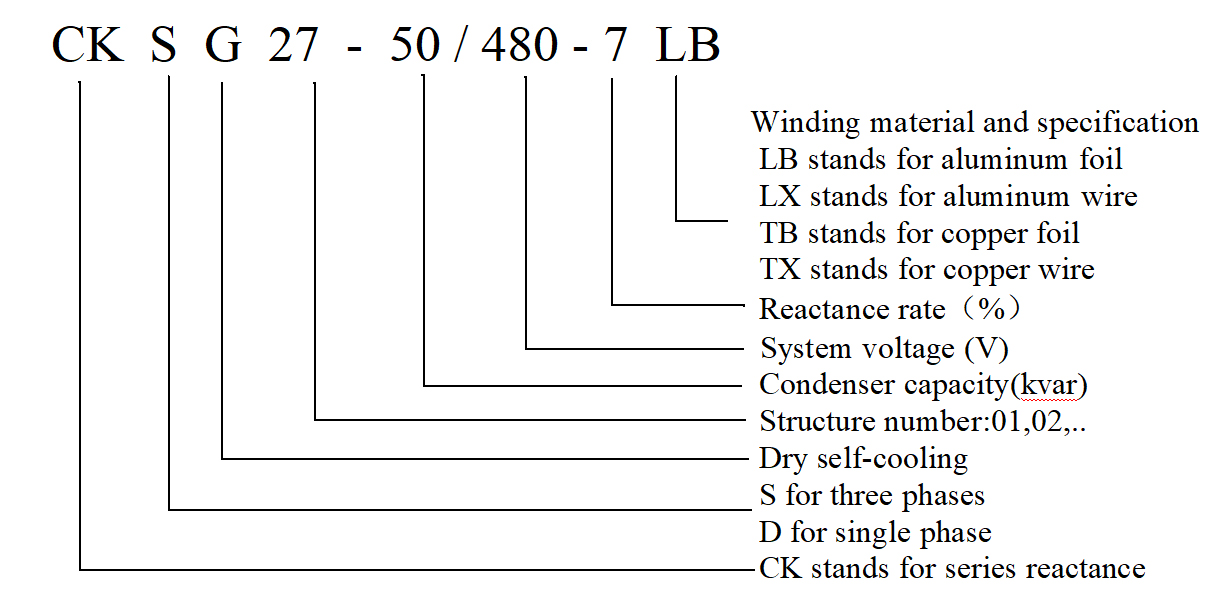

Naming rule
