FAD2.5~30W Series

1. The total power range of dual output is from 2.5W to 30W.
2. The output voltage range is 5V for the main circuit and from 5V to 24V for the auxiliary circuit.
3. The input voltage range is 85 to 305VAC in all working conditions.
4. Horizontal installation.
5. The switching frequency is 60kHz.
6. Various product models can meet different input voltage and output current requirements.

    Contact us Download
    FAD2.5~30W Dual Isolation Series
    FAD2.5~30W Dual Road Common Ground Series

    product description

    1. Output voltage accuracy ±2%;
    2. 4000V high isolation voltage;
    3. -40~+60℃ working temperature;
    4. Insulation resistance ≥100MΩ;
    5. Typical efficiency ranges from 70% to 80%.
    6. Short circuit protection, overheat protection;

    Typical performance

    ● Dual output mode
    ● Total output power 2.5~30W
    ● The main output voltage is 5V
    ● Auxiliary circuit output voltage 5~24V
    ● High isolation voltage 2500VAC(3000VAC or 4000VAC according to customer requirements)
    ● Horizontal mounting
    ● Isolated output mode
    ● Switching frequency 60kHz

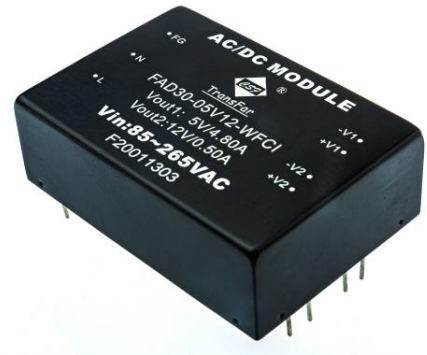

    product-description1

    Input characteristic

    Input voltage range 85~265VAC    100~360VDC
    165~265VAC    200~360VDC

    Output characteristic

    Output voltage accuracy Vout1 nominal output voltage ±2%/Vout2 nominal output voltage ±5%
    Load effect 10%~100%Ionom Change time △ Voutnom≤±0.5%
    Source effect Vinmin~Vinmax Change time △ Voutnom≤±0.2%
    Ripple noise ≤1%  Voutnom（max）
    Conversion efficiency See product selection table
    Temperature coefficient ≤±0.02%/℃ （Maximum value）

    General characteristic

    Isolation voltage Vin-vout, VIN-FG, VOUT-FG are 2500VAC/min(3000VAC or 4000VAC can be achieved according to customer requirements)
    Insulation resistance ≥100MΩ
    Mean time between failures ≥5×10⁵h
    Protection function Short-circuit protection (self-recovery), overheat protection (self-recovery)
    Operating temperature −25~+55 ° C full load /+55~+85 ° C derated use (-40 ~+60 ° C can be achieved according to customer requirements)
    Storage temperature −55~+125℃
    Relative humidity 10RH~90RH
    Cooling mode Natural cooling

    Selection list

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current

    (V₁)/(A₁)  (V₂)/(A₂)

    Maximum capacitive load（µF）

    Typical efficiency （%）

    FAD10-0505-NFCI

    165V-265V/200V-360V

    5/2.00

    		 5/0.10

    76

    FAD10-0512-NFCI

    165V-265V/200V-360V

    5/1.80

    		 12/0.10

    80

    FAD10-0515-NFCI

    165V-265V/200V-360V

    5/1.80

    		 15/0.10

    80

    FAD10-0524-NFCI

    165V-265V/200V-360V

    5/1.60

    		 24/0.10

    80

    FAD15-0505-NFCI

    165V-265V/200V-360V

    5/3.00

    		 5/0.10

    76

    FAD15-0512-NFCI

    165V-265V/200V-360V

    5/2.80

    		 12/0.10

    80

    FAD15-0515-NFCI

    165V-265V/200V-360V

    5/2.80

    		 15/0.10

    80

    FAD15-0524-NFCI

    165V-265V/200V-360V

    5/2.60

    		 24/0.10

    80

    FAD20-0505-NFCI

    165V-265V/200V-360V

    5/4.00

    		 5/0.10

    77

    FAD20-0512-NFCI

    165V-265V/200V-360V

    5/3.80

    		 12/0.10

    80

    FAD20-0515-NFCI

    165V-265V/200V-360V

    5/3.80

    		 15/0.10

    80

    FAD20-0524-NFCI

    165V-265V/200V-360V

    5/3.50

    		 24/0.10

    80

    FAD30-0505-NFCI

    165V-265V/200V-360V

    5/6.00

    		 5/0.10

    75

    FAD30-0512-NFCI

    165V-265V/200V-360V

    5/5.80

    		 12/0.10

    80

    FAD30-0515-NFCI

    165V-265V/200V-360V

    5/5.80

    		 15/0.10

    80

    FAD30-0524-NFCI

    165V-265V/200V-360V

    5/5.60

    		 24/0.10

    80

    FAD2.5-0505-WFCI

    85V-265V/100V-360V

    5/0.40

    		 5/0.10

    72

    FAD2.5-0512-WFCI

    85V-265V/100V-360V

    5/0.40

    		 12/0.05

    78

    FAD2.5-0515-WFCI

    85V-265V/100V-360V

    5/0.35

    		 15/0.05

    78

    FAD2.5-0524-WFCI

    85V-265V/100V-360V

    5/0.35

    		 24/0.03

    78

    FAD5-0505-WFCI

    85V-265V/100V-360V

    5/1.00

    		 5/0.10

    74

    FAD5-0512-WFCI

    85V-265V/100V-360V

    5/0.80

    		 12/0.10

    80

    FAD5-0515-WFCI

    85V-265V/100V-360V

    5/0.80

    		 15/0.10

    80

    FAD5-0524-WFCI

    85V-265V/100V-360V

    5/0.60

    		 24/0.10

    80

    FAD10-0505-WFCI

    85V-265V/100V-360V

    5/2.00

    		 5/0.10

    75

    FAD10-0512-WFCI

    85V-265V/100V-360V

    5/1.80

    		 12/0.10

    80

    FAD10-0515-WFCI

    85V-265V/100V-360V

    5/1.80

    		 15/0.10

    80

    FAD10-0524-WFCI

    85V-265V/100V-360V

    5/1.60

    		 24/0.10

    80

    FAD15-0505-WFCI

    85V-265V/100V-360V

    5/3.00

    		 5/0.10

    76

    FAD15-0512-WFCI

    85V-265V/100V-360V

    5/2.80

    		 12/0.10

    80

    FAD15-0515-WFCI

    85V-265V/100V-360V

    5/2.80

    		 15/0.10

    80

    FAD15-0524-WFCI

    85V-265V/100V-360V

    5/2.60

    		 24/0.10

    80

    FAD20-0505-WFCI

    85V-265V/100V-360V

    5/4.00

    		 5/0.10

    77

    FAD20-0512-WFCI

    85V-265V/100V-360V

    5/3.80

    		 12/0.10

    80

    FAD20-0515-WFCI

    85V-265V/100V-360V

    5/3.80

    		 15/0.10

    80

    FAD20-0524-WFCI

    85V-265V/100V-360V

    5/3.50

    		 24/0.10

    80

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current(V₁)/(A₁)  (V₂)/(A₂)

    Maximum capacitive load（µF）

    Typical efficiency （%）

    FAD10-05H05-NFCI

    165V-265V/200V-360V

    5/1.80   5/0.20

    75

    FAD10-05H12-NFCI

    165V-265V/200V-360V

    5/1.50   12/0.20

    80

    FAD10-05H15-NFCI

    165V-265V/200V-360V

    5/1.40   15/0.20

    80

    FAD10-05H24-NFCI

    165V-265V/200V-360V

    5/1.00   24/0.20

    80

    FAD15-05H05-NFCI

    165V-265V/200V-360V

    5/2.80   5/0.20

    76

    FAD15-05H12-NFCI

    165V-265V/200V-360V

    5/2.40   12/0.20

    80

    FAD15-05H15-NFCI

    165V-265V/200V-360V

    5/2.00   15/0.20

    80

    FAD15-05H24-NFCI

    165V-265V/200V-360V

    5/2.00   24/0.20

    80

    FAD20-05H05-NFCI

    165V-265V/200V-360V

    5/3.80   5/0.20

    77

    FAD20-05H12-NFCI

    165V-265V/200V-360V

    5/3.50   12/0.20

    80

    FAD20-05H15-NFCI

    165V-265V/200V-360V

    5/3.40   15/0.20

    80

    FAD20-05H24-NFCI

    165V-265V/200V-360V

    5/3.00   24/0.20

    80

    FAD30-05H05-NFCI

    165V-265V/200V-360V

    5/5.80   5/0.20

    75

    FAD30-05H12-NFCI

    165V-265V/200V-360V

    5/5.60   12/0.20

    80

    FAD30-05H15-NFCI

    165V-265V/200V-360V

    5/5.40   15/0.20

    80

    FAD30-05H24-NFCI

    165V-265V/200V-360V

    5/5.00   24/0.20

    80

    FAD5-05H05-WFCI

    85V-265V/100V-360V

    5/0.90   5/0.20

    74

    FAD5-05H12-WFCI

    85V-265V/100V-360V

    5/0.60   12/0.20

    80

    FAD5-05H15-WFCI

    85V-265V/100V-360V

    5/0.60   15/0.15

    80

    FAD10-05H05-WFCI

    85V-265V/100V-360V

    5/1.80   5/0.20

    75

    FAD10-05H12-WFCI

    85V-265V/100V-360V

    5/1.50   12/0.20

    80

    FAD10-05H15-WFCI

    85V-265V/100V-360V

    5/1.40   15/0.20

    80

    FAD10-05H24-WFCI

    85V-265V/100V-360V

    5/1.00   24/0.20

    80

    FAD15-05H05-WFCI

    85V-265V/100V-360V

    5/2.80   5/0.20

    76

    FAD15-05H12-WFCI

    85V-265V/100V-360V

    5/2.40   12/0.20

    80

    FAD15-05H15-WFCI

    85V-265V/100V-360V

    5/2.00   15/0.20

    80

    FAD15-05H24-WFCI

    85V-265V/100V-360V

    5/2.00   24/0.20

    80

    FAD20-05H05-WFCI

    85V-265V/100V-360V

    5/3.80   5/0.20

    77

    FAD20-05H12-WFCI

    85V-265V/100V-360V

    5/3.50   12/0.20

    80

    FAD20-05H15-WFCI

    85V-265V/100V-360V

    5/3.40   15/0.20

    80

    FAD20-05H24-WFCI

    85V-265V/100V-360V

    5/3.00   24/0.20

    80

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current(V₁)/(A₁)  (V₂)/(A₂)

    Maximum capacitive load（µF）

    Typical efficiency （%）

    FAD10-05V05-NFCI

    165V-265V/200V-360V

    5/1.60   5/0.40

    75

    FAD10-05V12-NFCI

    165V-265V/200V-360V

    5/1.20   12/0.30

    80

    FAD10-05V15-NFCI

    165V-265V/200V-360V

    5/1.10   15/0.30

    80

    FAD10-05V24-NFCI

    165V-265V/200V-360V

    5/0.80   24/0.25

    80

    FAD15-05V05-NFCI

    165V-265V/200V-360V

    5/2.50   5/0.50

    76

    FAD15-05V12-NFCI

    165V-265V/200V-360V

    5/1.80   12/0.50

    80

    FAD15-05V15-NFCI

    165V-265V/200V-360V

    5/1.80   15/0.40

    80

    FAD15-05V24-NFCI

    165V-265V/200V-360V

    5/1.60   24/0.30

    80

    FAD20-05V05-NFCI

    165V-265V/200V-360V

    5/3.50   5/0.50

    77

    FAD20-05V12-NFCI

    165V-265V/200V-360V

    5/2.80   12/0.50

    80

    FAD20-05V15-NFCI

    165V-265V/200V-360V

    5/2.50   15/0.50

    80

    FAD20-05V24-NFCI

    165V-265V/200V-360V

    5/2.50   24/0.30

    80

    FAD30-05V05-NFCI

    165V-265V/200V-360V

    5/5.50   5/0.50

    75

    FAD30-05V12-NFCI

    165V-265V/200V-360V

    5/4.80   12/0.50

    80

    FAD30-05V15-NFCI

    165V-265V/200V-360V

    5/4.50   15/0.50

    80

    FAD30-05V24-NFCI

    165V-265V/200V-360V

    5/3.60   24/0.50

    80

    FAD5-05V05-WFCI

    85V-265V/100V-360V

    5/0.70   5/0.30

    74

    FAD5-05V12-WFCI

    85V-265V/100V-360V

    5/0.30   12/0.30

    80

    FAD10-05V05-WFCI

    85V-265V/100V-360V

    5/1.60   5/0.40

    75

    FAD10-05V12-WFCI

    85V-265V/100V-360V

    5/1.20   12/0.30

    80

    FAD10-05V15-WFCI

    85V-265V/100V-360V

    5/1.10   15/0.30

    80

    FAD10-05V24-WFCI

    85V-265V/100V-360V

    5/0.80   24/0.25

    80

    FAD15-05V05-WFCI

    85V-265V/100V-360V

    5/2.50   5/0.50

    76

    FAD15-05V12-WFCI

    85V-265V/100V-360V

    5/1.80   12/0.50

    80

    FAD15-05V15-WFCI

    85V-265V/100V-360V

    5/1.80   15/0.40

    80

    FAD15-05V24-WFCI

    85V-265V/100V-360V

    5/1.60   24/0.30

    80

    FAD20-05V05-WFCI

    85V-265V/100V-360V

    5/3.50   5/0.50

    77

    FAD20-05V12-WFCI

    85V-265V/100V-360V

    5/2.80   12/0.50

    80

    FAD20-05V15-WFCI

    85V-265V/100V-360V

    5/2.50   15/0.50

    80

    FAD20-05V24-WFCI

    85V-265V/100V-360V

    5/2.50   24/0.30

    80

    Product diagram

    product-description2

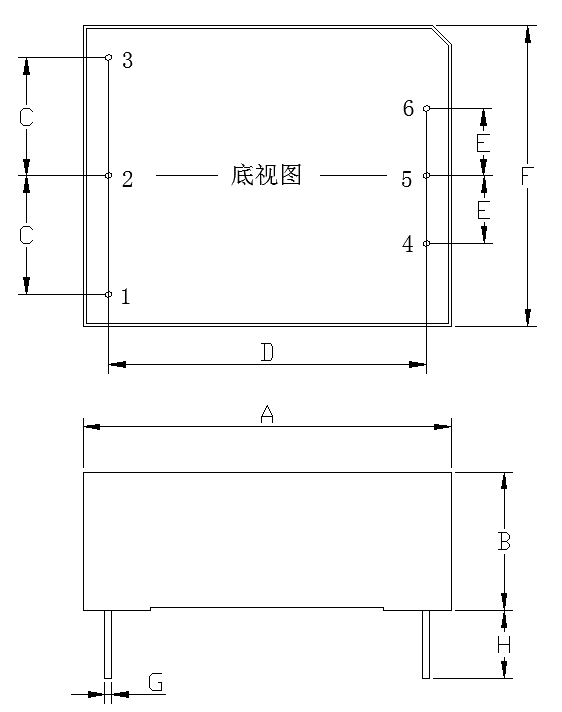

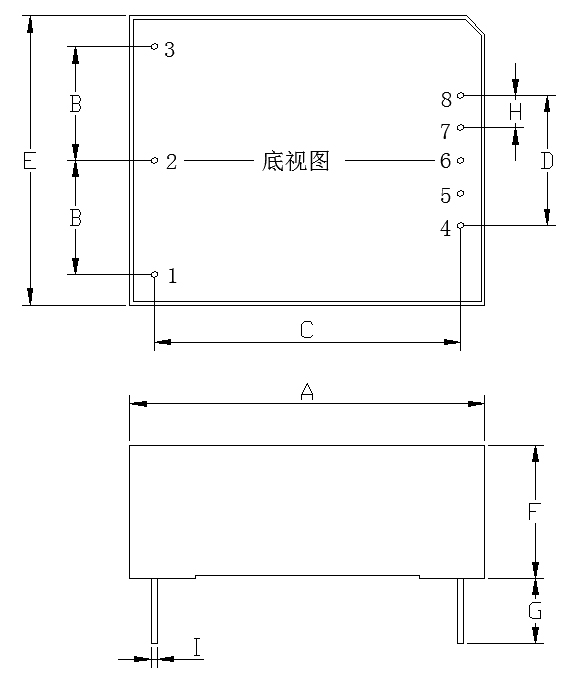

    Dimensions and shell material

    Shell material

    Plastic case

    Aluminium case

    Dim

    2.5W(mm)

    5W(mm)

    10/15W(mm

    20W(mm)

    30W(mm)

    A

    48.5±0.5

    55±0.5

    62±0.5

    70±0.5

    71.5±0.5

    B

    12±0.3

    17.5±0.3

    17.5±0.3

    20.5±0.3

    20.5±0.3

    C

    40.5±0.5

    47±0.5

    54±0.5

    62±0.5

    62±0.5

    D

    16±0.5

    20±0.5

    20±0.5

    23±0.5

    23±0.5

    E

    36±0.5

    45±0.5

    45±0.5

    48±0.5

    49.5±0.5

    F

    20.5±0.5

    21.5±0.5

    22.5±0.5

    23.5±0.5

    23.5±0.5

    G

    10Min

    8Min

    H

    4.0±0.3

    5.0±0.3

    5.75±0.3

    I*

    1.2±0.1
    *：The metal encapsulated power module is1.0±0.1

    Pin definition

    Definition

    1

    2

    		 3

    4

    5

    6

    7

    8

    Instructions

    FG

    N

    L

    −V₁

    +V₁

    NP

    −V₂

    +V₂

    product description

    1. Output voltage accuracy ±2%;
    2. 4000V high isolation voltage;
    3. -40~+60℃ working temperature;
    4. Insulation resistance ≥100MΩ;
    5. Typical efficiency ranges from 70% to 80%.
    6. Short circuit protection, overheat protection;

    Typical performance

    ● Dual output mode
    ● Total output power 2.5~30W
    ● Output voltage ±3.3~±48V
    ● Input voltage range 165~265VAC/85~265VAC
    ● High isolation voltage 2500VAC(3000VAC or 4000VAC according to customer requirements)
    ● Horizontal mounting
    ● Switching frequency 60kHz

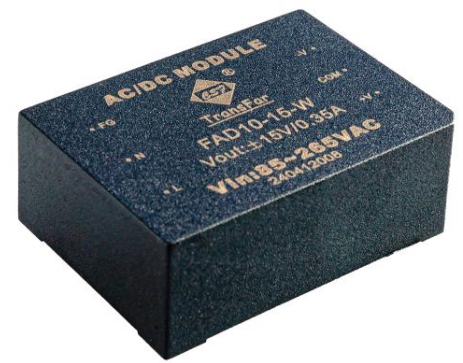

    product-description1

    Input characteristic

    Input voltage range 85~265VAC    100~360VDC
    165~265VAC    200~360VDC

    Output characteristic

    Output voltage accuracy Nominal output voltage ±2%
    Load effect 10%~100%Ionom Change time △ Voutnom≤±0.5%
    Source effect Vinmin~Vinmax Change time △ Voutnom≤±0.2%
    Ripple noise ≤1%  Voutnom（max）
    Conversion efficiency See product selection table
    Temperature coefficient ≤±0.02%/℃ （Maximum value）

    General characteristic

    Isolation voltage Between Vin and Vout 2500VAC/min(3000VAC or 4000VAC can be achieved according to customer requirements)
    Insulation resistance ≥100MΩ
    Mean time between failures ≥5×10⁵h
    Protection function Short-circuit protection (self-recovery), overheat protection (self-recovery)
    Operating temperature −25~+55 °C full load /+55~+85 °C derated use (-40 ~+60 °C can be achieved according to customer requirements)
    Storage temperature −55~+125℃
    Relative humidity 10RH~90RH
    Cooling mode Natural cooling

    Selection list

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current （V）/（A）

    Maximum capacitive load（µF）

    Typical efficiency （%）

    FAD10-5-N

    165V-265V/200V-360V

    ±5/1.00

    75

    FAD10-12-N

    165V-265V/200V-360V

    ±12/0.45

    80

    FAD10-15-N

    165V-265V/200V-360V

    ±15/0.35

    80

    FAD10-24-N

    165V-265V/200V-360V

    ±24/0.22

    80

    FAD15-5-N

    165V-265V/200V-360V

    ±5/1.50

    75

    FAD15-12-N

    165V-265V/200V-360V

    ±12/0.65

    80

    FAD15-15-N

    165V-265V/200V-360V

    ±15/0.50

    80

    FAD15-24-N

    165V-265V/200V-360V

    ±24/0.32

    80

    FAD20-5-N

    165V-265V/200V-360V

    ±5/2.00

    75

    FAD20-12-N

    165V-265V/200V-360V

    ±12/0.83

    80

    FAD20-15-N

    165V-265V/200V-360V

    ±15/0.65

    80

    FAD20-24-N

    165V-265V/200V-360V

    ±24/0.45

    80

    FAD30-5-N

    165V-265V/200V-360V

    ±5/3.00

    75

    FAD30-12-N

    165V-265V/200V-360V

    ±12/1.25

    80

    FAD30-15-N

    165V-265V/200V-360V

    ±15/1.00

    80

    FAD30-24-N

    165V-265V/200V-360V

    ±24/0.65

    80

    FAD2.5-5-W

    85V-265V/100V-360V

    ±5/0.25

    75

    FAD2.5-12-W

    85V-265V/100V-360V

    ±12/0.11

    80

    FAD2.5-15-W

    85V-265V/100V-360V

    ±15/0.08

    80

    FAD2.5-24-W

    85V-265V/100V-360V

    ±24/0.06

    80

    FAD5-5-W

    85V-265V/100V-360V

    ±5/0.50

    75

    FAD5-12-W

    85V-265V/100V-360V

    ±12/0.22

    80

    FAD5-15-W

    85V-265V/100V-360V

    ±15/0.18

    80

    FAD5-24-W

    85V-265V/100V-360V

    ±24/0.11

    80

    FAD10-5-W

    85V-265V/100V-360V

    ±5/1.00

    75

    FAD10-12-W

    85V-265V/100V-360V

    ±12/0.45

    80

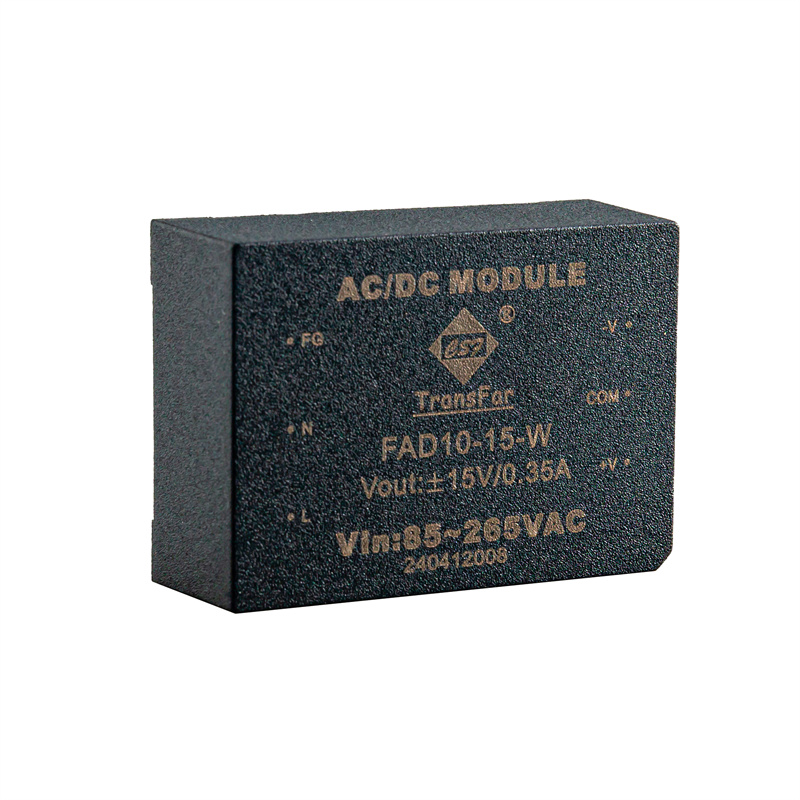

    FAD10-15-W

    85V-265V/100V-360V

    ±15/0.35

    80

    FAD10-24-W

    85V-265V/100V-360V

    ±24/0.22

    80

    FAD15-5-W

    85V-265V/100V-360V

    ±5/1.50

    75

    FAD15-12-W

    85V-265V/100V-360V

    ±12/0.65

    80

    FAD15-15-W

    85V-265V/100V-360V

    ±15/0.50

    80

    FAD15-24-W

    85V-265V/100V-360V

    ±24/0.32

    80

    FAD20-5-W

    85V-265V/100V-360V

    ±5/2.00

    75

    FAD20-12-W

    85V-265V/100V-360V

    ±12/0.83

    80

    FAD20-15-W

    85V-265V/100V-360V

    ±15/0.65

    80

    FAD20-24-W

    85V-265V/100V-360V

    ±24/0.45

    80

    Product diagram

    product-description2

    Dimensions and shell material

    Shell material

    Plastic case

    Aluminium case

    Dim

    2.5W(mm)

    5W(mm)

    10/15W(mm

    20W(mm)

    30W(mm)

    A

    48.5±0.5

    55±0.5

    62±0.5

    70±0.5

    71.5±0.5

    B

    20.5±0.5

    21.5±0.5

    22.5±0.5

    23.5±0.5

    23.5±0.5

    C

    12±0.3

    17.5±0.3

    17.5±0.3

    20.5±0.3

    20.5±0.3

    D

    40.5±0.5

    47±0.5

    54±0.5

    62±0.5

    62±0.5

    E

    16±0.3

    20±0.3

    20±0.3

    23±0.3

    23±0.3

    F

    36±0.5

    45±0.5

    45±0.5

    48±0.5

    49.5±0.5

    G*

    1.2±0.1

    H

    10Min

    8Min
    *：The metal encapsulated power module is 1.0±0.1

    Pin definition

    Definition

    1

    2

    3

    4

    5

    6

    Instructions

    FG

    N

    L

    -V

    COM

    +V

    Leave Your Message
