AC-DC Module Power Supply
01

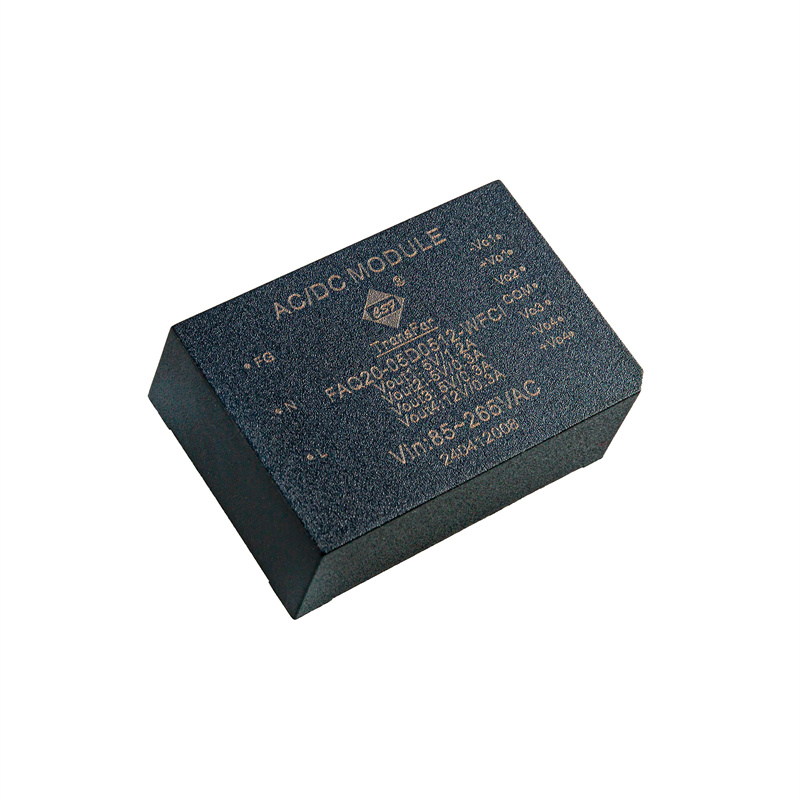

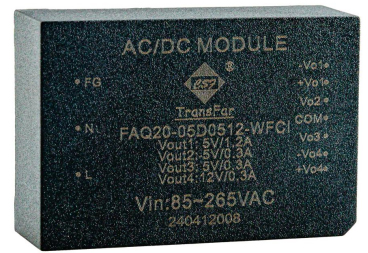

FAQ20-05D0512-WFCI Power Supply
product description
1. Output voltage accuracy ±2%;
2. 4000V high isolation voltage;
3. -40~+60℃ working temperature;
4. Insulation resistance ≥100MΩ;
5. Typical efficiency ranges from 70% to 80%.
6. Short circuit protection, overheat protection;
Typical performance
● Four way output mode
● Total output power 20W
● Output voltage Vo1:5V;Vo2:5V;Vo3:5V;Vo4:12V
● Input voltage range 85~265VAC
● Isolation voltage 2500VAC
● Overall dimension 69.5*47.5*23.5
Input characteristic
| Input Voltage Range (DC) | 85~265VAC |
Output characteristic
| Output voltage accuracy | Vo1 nominal output voltage ±2%; Vo2,Vo3,Vo4 Nominal output voltage ±5% |
| Load effect | 0%~100% load，≤±0.5% |
| Source effect | Rated load，≤±0.2% |
| Ripple noise | ≤1% Voutnom（max） |
| Conversion efficiency | Nominal input, rated loadtyp.80% |
| Temperature coefficient | ≤±0.02%/℃ |
General characteristic
| Isolation voltage | Vin~Vout、Vin~FG、Vout~FG All three are 2500VAC/min |
| Insulation resistance | ≥100MΩ |
| Mean time between failures | ≥1×106h |
| Protection function | Short circuit protection (self-recovery), overcurrent protection (self-recovery) |
| Operating temperature | −25~+55℃Full load service/+55~+85℃Derated use |
| Storage temperature | −40~+105℃ |
| Storage humidity | ≤95%RH |
| Cooling mode | Natural cooling |

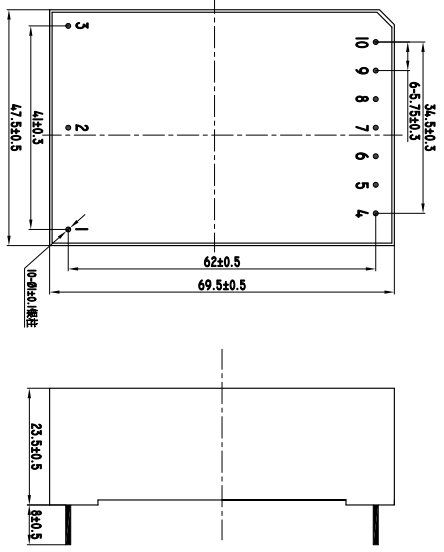

Product diagram
Pin definition
|
Definition |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Instructions |
FG |
N |
L |
-Vo1 |
+Vo1 |
Vo2 |
COM |
Vo3 |
-Vo4 |
+Vo4 |
