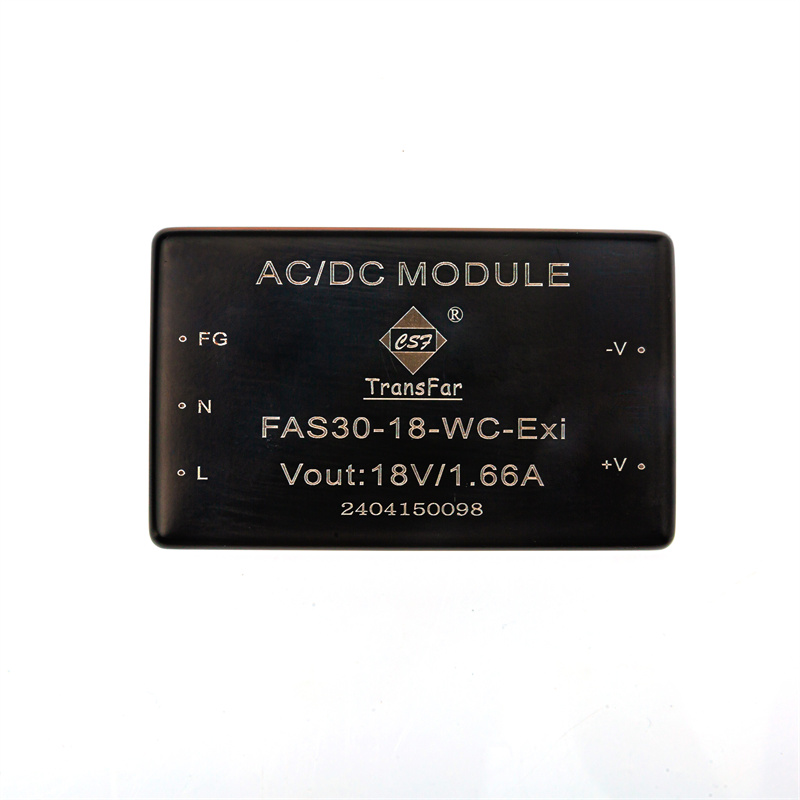

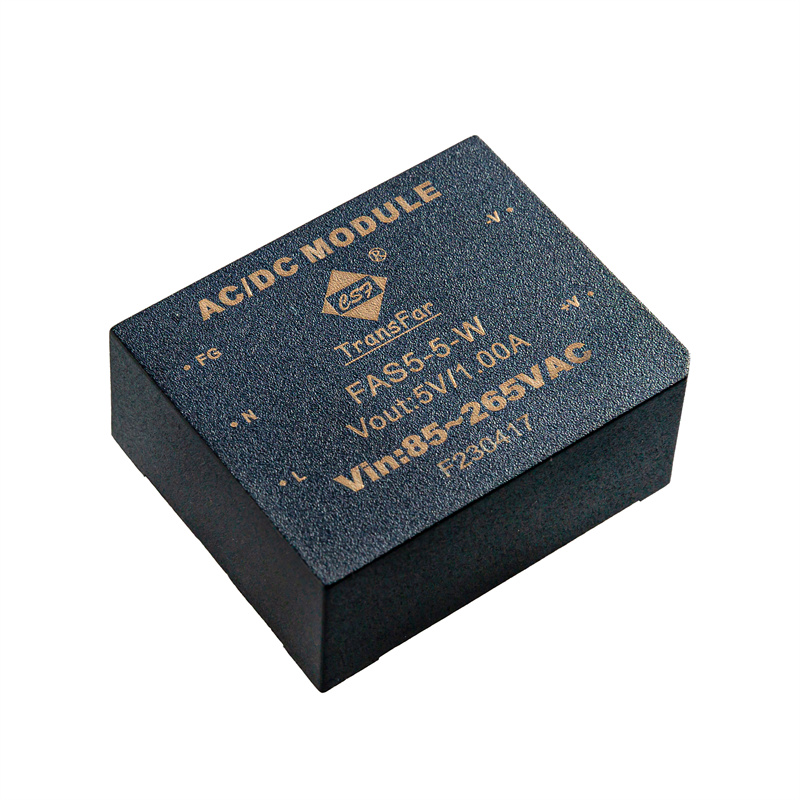

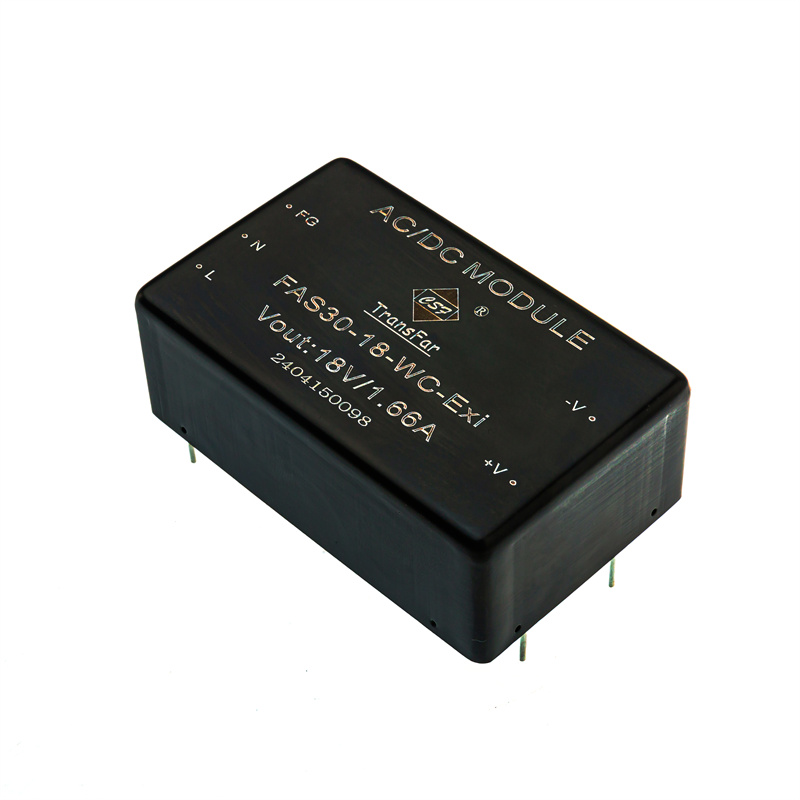

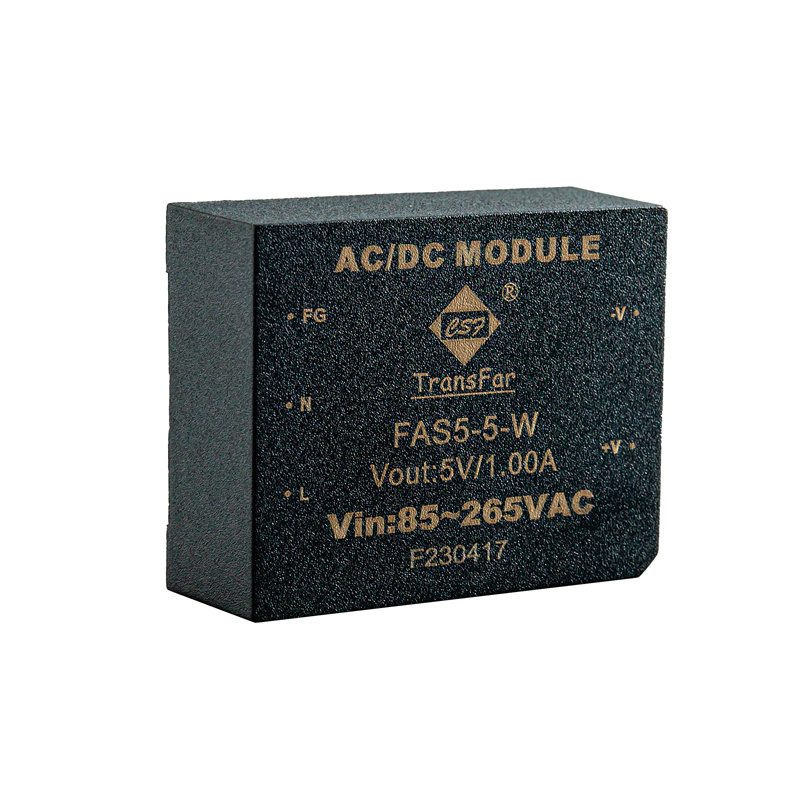

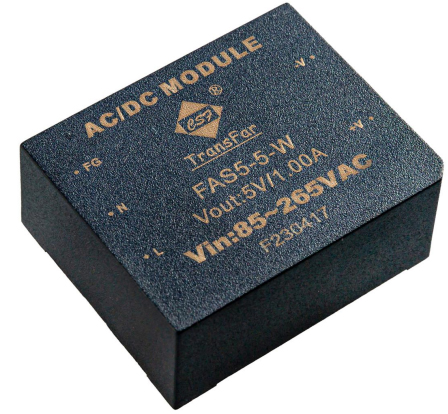

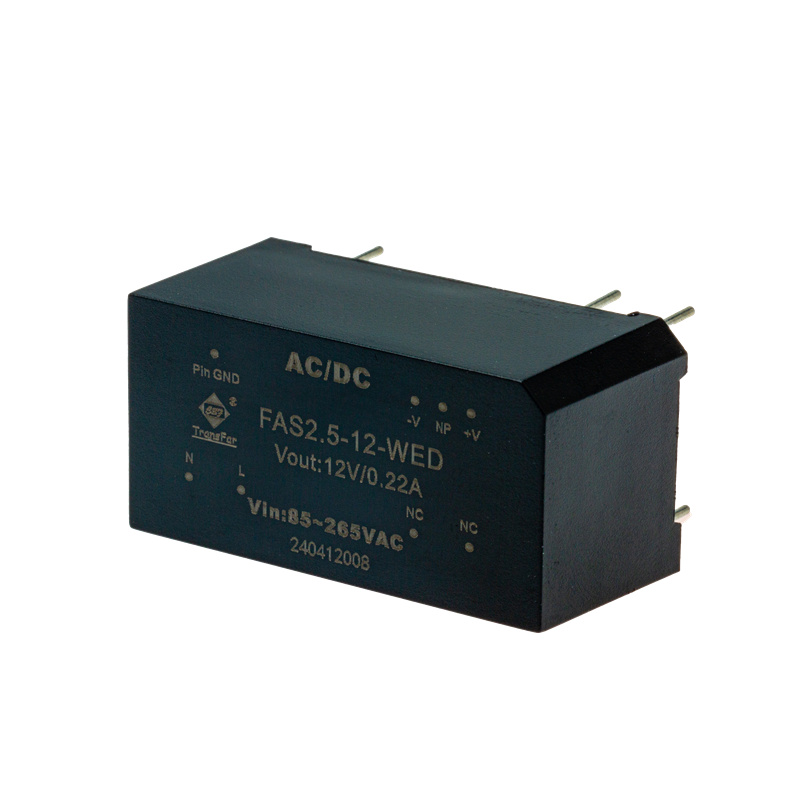

FAS2.5~30W Single Channel Series

1. Single output power module from AD to DC.
2. A variety of output power and output voltage can be adjusted according to demand.
3. The input voltage conforms to the voltage range of 85 to 305V in all working conditions.
4. Various installation methods, including horizontal, vertical, DIP, SMT.
5. 60kHz high frequency switch.

product details

product description

1. Output voltage accuracy ±2%;

2. 4000V high isolation voltage;

3. -40~+60℃ working temperature;

4. Insulation resistance ≥100MΩ;

5. Typical efficiency ranges from 70% to 80%.

6. Short circuit protection, overheat protection;

Typical performance

● Single output mode

● Total output power 2.5~30W

● Output voltage 3.3~48V

● Input voltage range 85~265VAC

● High isolation voltage 2500VAC(3000VAC or 4000VAC according to customer requirements)

● Horizontal mounting

● Switching frequency 60kHz

Input characteristic

Input voltage range

85~265VAC 100~360VDC

Output characteristic

Output voltage accuracy	Nominal output voltage ±2%
Load effect	10%~100%Ionom change time △ Voutnom≤±0.5%
Source effect	Vinmin~Vinmax change time △ Voutnom≤±0.2%
Ripple noise	≤1% Voutnom（max）
Conversion efficiency	See product selection table
Temperature coefficient	≤±0.02%/℃ （Maximum value）

General characteristic

Isolation voltage	Vin~Vout Between them is 2500VAC/min(3000VAC or 4000VAC can be achieved according to customer requirements)
Insulation resistance	≥100MΩ
Mean time between failures	≥5×10⁵h
Protection function	Short-circuit protection (self-recovery), overheat protection (self-recovery)
Operating temperature	−25~+55 °C full load /+55~+85 °C derated use (-40 ~+60 °C can be achieved according to customer requirements)
Storage temperature	−55~+125℃
Relative humidity	10RH~90RH
Cooling mode	Natural cooling

Selection list

Model number	Input voltage range Vac/Vdc	Output voltage/current （V）/（A）	Maximum capacitive load（µF）	Typical efficiency （%）
FAS10-5-N	165V-265V/200V-360V	5/2.00		75
FAS10-12-N	165V-265V/200V-360V	12/0.85		80
FAS10-15-N	165V-265V/200V-360V	15/0.70		80
FAS10-24-N	165V-265V/200V-360V	24/0.64		80
FAS15-5-N	165V-265V/200V-360V	5/3.00		75
FAS15-12-N	165V-265V/200V-360V	12/1.25		80
FAS15-15-N	165V-265V/200V-360V	15/1.00		80
FAS15-24-N	165V-265V/200V-360V	24/0.64		80
FAS20-5-N	165V-265V/200V-360V	5/4.00		75
FAS20-12-N	165V-265V/200V-360V	12/1.66		80
FAS20-15-N	165V-265V/200V-360V	15/1.34		80
FAS20-24-N	165V-265V/200V-360V	24/1.25		80
FAS30-5-W	85V-264V/100V-370V	5/6.00		75
FAS30-12-W	85V-264V/100V-370V	12/2.50		80
FAS30-15-W	85V-264V/100V-370V	15/2.00		80
FAS30-24-W	85V-264V/100V-370V	24/1.25		80
FAS3-5-W	85V-265V/100V-360V	5/0.50		70
FAS3-12-W	85V-265V/100V-360V	12/0.22		75
FAS3-15-W	85V-265V/100V-360V	15/0.17		75
FAS3-24-W	85V-265V/100V-360V	24/0.11		75
FAS5-5-W	85V-265V/100V-360V	5/1.00		75
FAS5-12-W	85V-265V/100V-360V	12/0.45		80
FAS5-15-W	85V-265V/100V-360V	15/0.35		80
FAS5-24-W	85V-265V/100V-360V	24/0.22		80
FAS10-5-W	85V-265V/100V-360V	5/2.00		75
FAS10-12-W	85V-265V/100V-360V	12/0.85		80
FAS10-15-W	85V-265V/100V-360V	15/0.70		80
FAS10-24-W	85V-265V/100V-360V	24/0.42		80
FAS15-5-W	85V-265V/100V-360V	5/3.00		75
FAS15-12-W	85V-265V/100V-360V	12/1.25		80
FAS15-15-W	85V-265V/100V-360V	15/1.00		80
FAS15-24-W	85V-265V/100V-360V	24/0.64		80
FAS20-5-W	85V-265V/100V-360V	5/4.00		75
FAS20-12-W	85V-265V/100V-360V	12/1.66		80
FAS20-15-W	85V-265V/100V-360V	15/1.34		80
FAS20-24-W	85V-265V/100V-360V	24/0.88		80
