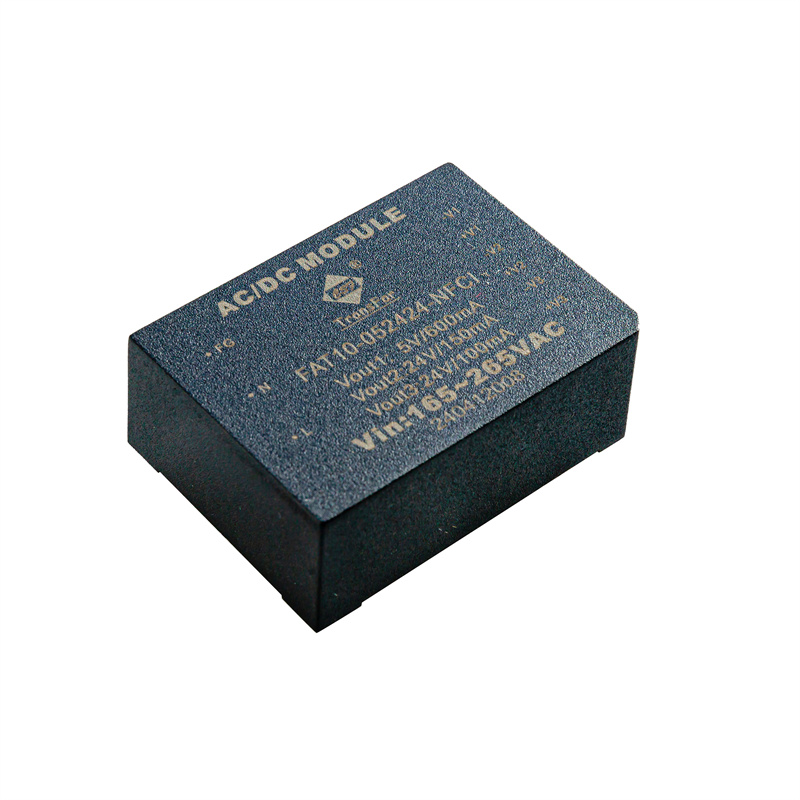

AC-DC Module Power Supply
FAT5~30W Three-way Isolation Series
product description
Typical performance
Input characteristic
| Input voltage range | 85~265VAC 100~360VDC |
| 165~265VAC 200~360VDC |
Output characteristic
| Output characteristic | Vout1 nominal output voltage ±2%/Vout2 nominal output voltage ±5% |
| Load effect | 10%~100%Ionom Change time △Voutnom≤±0.5% |
| Source effect | Vinmin~Vinmax Change time △Voutnom≤±0.2% |
| Ripple noise | ≤1% Voutnom（max） |
| Conversion efficiency | See product selection table |
| Temperature coefficient | ≤±0.02%/℃ （Maximum value） |
General characteristic
| Isolation voltage | Vin-vout, VIN-FG, VOUT-FG are 2500VAC/min(3000VAC or 4000VAC can be achieved according to customer requirements) |
| Insulation resistance | ≥100MΩ |
| Mean time between failures | ≥5×10⁵h |
| Protection function | Short-circuit protection (self-recovery), overheat protection (self-recovery) |
| Operating temperature | −25~+55 °C full load /+55~+85 °C derated use (-40 ~+60 °C can be achieved according to customer requirements) |
| Storage temperature | −55~+125℃ |
| Relative humidity | 10RH~90RH |
| Cooling mode | Natural cooling |
Selection list
|
Model number |
Input voltage range Vac/Vdc |
Output voltage/current(V₁)/(A₁) (V₂)/(A₂) |
Maximum capacitive load（µF） |
Typical efficiency （%） |
|
FAT10-0505-NFCI |
165V-265V/200V-360V |
5/1.80 ±5/0.10 |
75 |
|
|
FAT10-0512-NFCI |
165V-265V/200V-360V |
5/1.60 ±12/0.10 |
80 |
|
|
FAT10-0515-NFCI |
165V-265V/200V-360V |
5/1.40 ±15/0.10 |
80 |
|
|
FAT10-0524-NFCI |
165V-265V/200V-360V |
5/1.10 ±24/0.10 |
80 |
|
|
FAT15-0505-NFCI |
165V-265V/200V-360V |
5/2.80 ±5/0.10 |
76 |
|
|
FAT15-0512-NFCI |
165V-265V/200V-360V |
5/2.60 ±12/0.10 |
80 |
|
|
FAT15-0515-NFCI |
165V-265V/200V-360V |
5/2.40 ±15/0.10 |
80 |
|
|
FAT15-0524-NFCI |
165V-265V/200V-360V |
5/2.10 ±24/0.10 |
80 |
|
|
FAT20-0505-NFCI |
165V-265V/200V-360V |
5/3.80 ±5/0.10 |
77 |
|
|
FAT20-0512-NFCI |
165V-265V/200V-360V |
5/3.50 ±12/0.10 |
80 |
|
|
FAT20-0515-NFCI |
165V-265V/200V-360V |
5/3.40 ±15/0.10 |
80 |
|
|
FAT20-0524-NFCI |
165V-265V/200V-360V |
5/3.00 ±24/0.10 |
80 |
|
|
FAT30-0505-NFCI |
165V-265V/200V-360V |
5/5.80 ±5/0.10 |
75 |
|
|
FAT30-0512-NFCI |
165V-265V/200V-360V |
5/5.50 ±12/0.10 |
80 |
|
|
FAT30-0515-NFCI |
165V-265V/200V-360V |
5/5.40 ±15/0.10 |
80 |
|
|
FAT30-0524-NFCI |
165V-265V/200V-360V |
5/5.00 ±24/0.10 |
80 |
|
|
FAT5-0505-WFCI |
85V-265V/100V-360V |
5/0.80 ±5/0.10 |
74 |
|
|
FAT5-0512-WFCI |
85V-265V/100V-360V |
5/0.70 ±12/0.10 |
80 |
|
|
FAT5-0515-WFCI |
85V-265V/100V-360V |
5/0.60 ±15/0.10 |
80 |
|
|
FAT5-0524-WFCI |
85V-265V/100V-360V |
5/0.60 ±24/0.05 |
80 |
|
|
FAT10-0505-WFCI |
85V-265V/100V-360V |
5/1.80 ±5/0.10 |
75 |
|
|
FAT10-0512-WFCI |
85V-265V/100V-360V |
5/1.60 ±12/0.10 |
80 |
|
|
FAT10-0515-WFCI |
85V-265V/100V-360V |
5/1.40 ±15/0.10 |
80 |
|
|
FAT10-0524-WFCI |
85V-265V/100V-360V |
5/1.10 ±24/0.10 |
80 |
|
|
FAT15-0505-WFCI |
85V-265V/100V-360V |
5/2.80 ±5/0.10 |
76 |
|
|
FAT15-0512-WFCI |
85V-265V/100V-360V |
5/2.60 ±12/0.10 |
80 |
|
|
FAT15-0515-WFCI |
85V-265V/100V-360V |
5/2.40 ±15/0.10 |
80 |
|
|
FAT15-0524-WFCI |
85V-265V/100V-360V |
5/2.10 ±24/0.10 |
80 |
|
|
FAT20-0505-WFCI |
85V-265V/100V-360V |
5/3.80 ±5/0.10 |
77 |
|
|
FAT20-0512-WFCI |
85V-265V/100V-360V |
5/3.50 ±12/0.10 |
80 |
|
|
FAT20-0515-WFCI |
85V-265V/100V-360V |
5/3.40 ±15/0.10 |
80 |
|
|
FAT20-0524-WFCI |
85V-265V/100V-360V |
5/3.00 ±24/0.10 |
80 |
|
Model number |
Input voltage range Vac/Vdc |
Output voltage/current (V₁)/(A₁) (V₂)/(A₂) |
Maximum capacitive load（µF） |
Typical efficiency （%） |
|
FAT10-05V05-NFCI |
165V-265V/200V-360V |
5/1.00 ±5/0.50 |
75 |
|
|
FAT10-05V12-NFCI |
165V-265V/200V-360V |
5/0.80 ±12/0.25 |
80 |
|
|
FAT15-05V05-NFCI |
165V-265V/200V-360V |
5/2.00 ±5/0.50 |
76 |
|
|
FAT15-05V12-NFCI |
165V-265V/200V-360V |
5/1.60 ±12/0.30 |
80 |
|
|
FAT15-05V15-NFCI |
165V-265V/200V-360V |
5/1.20 ±15/0.30 |
80 |
|
|
FAT20-05V05-NFCI |
165V-265V/200V-360V |
5/3.00 ±5/0.50 |
77 |
|
|
FAT20-05V12-NFCI |
165V-265V/200V-360V |
5/2.60 ±12/0.30 |
80 |
|
|
FAT20-05V15-NFCI |
165V-265V/200V-360V |
5/2.20 ±15/0.30 |
80 |
|
|
FAT20-05V24-NFCI |
165V-265V/200V-360V |
5/2.00 ±24/0.20 |
80 |
|
|
FAT30-05V05-NFCI |
165V-265V/200V-360V |
5/5.00 ±5/0.50 |
75 |
|
|
FAT30-05V12-NFCI |
165V-265V/200V-360V |
5/3.60 ±12/.050 |
80 |
|
|
FAT30-05V15-NFCI |
165V-265V/200V-360V |
5/3.60 ±15/0.40 |
80 |
|
|
FAT30-05V24-NFCI |
165V-265V/200V-360V |
5/3.10 ±24/0.30 |
80 |
|
|
FAT10-05V05-WFCI |
85V-265V/100V-360V |
5/1.00 ±5/0.50 |
75 |
|
|
FAT10-05V12-WFCI |
85V-265V/100V-360V |
5/0.80 ±12/0.25 |
80 |
|
|
FAT15-05V05-WFCI |
85V-265V/100V-360V |
5/2.00 ±5/0.50 |
76 |
|
|
FAT15-05V12-WFCI |
85V-265V/100V-360V |
5/1.60 ±12/0.30 |
80 |
|
|
FAT15-05V15-WFCI |
85V-265V/100V-360V |
5/1.20 ±15/0.30 |
80 |
|
|
FAT20-05V05-WFCI |
85V-265V/100V-360V |
5/3.00 ±5/0.50 |
77 |
|
|
FAT20-05V12-WFCI |
85V-265V/100V-360V |
5/2.60 ±12/0.30 |
80 |
|
|
FAT20-05V15-WFCI |
85V-265V/100V-360V |
5/2.20 ±15/0.30 |
80 |
|
|
FAT20-05V24-WFCI |
85V-265V/100V-360V |
5/2.00 ±24/0.20 |
80 |

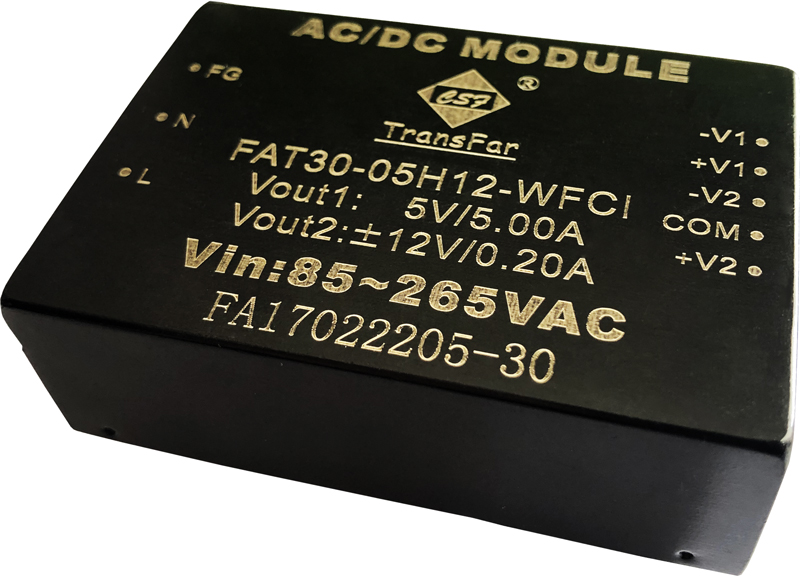

Product diagram

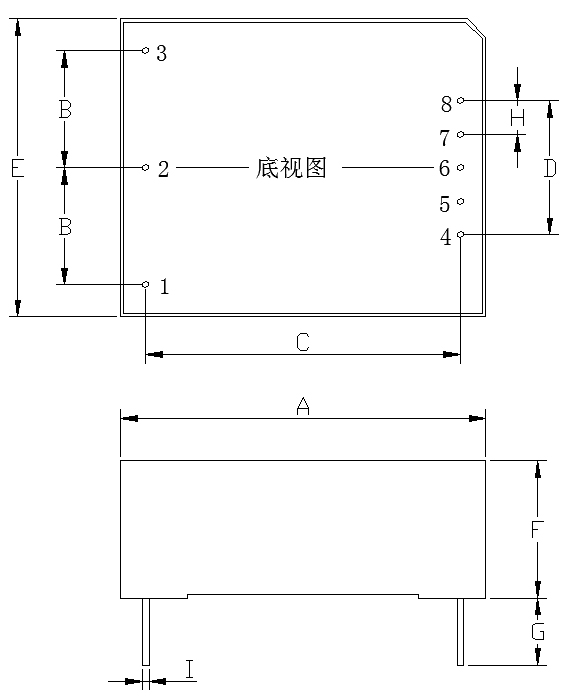

Dimensions and shell material
|
Shell material |
Plastic case |
Aluminium case |
|||
|
Dim |
2.5W(mm) |
5W(mm) |
10/15W(mm |
20W(mm) |
30W(mm) |
|
A |
48.5±0.5 |
55±0.5 |
62±0.5 |
70±0.5 |
71.5±0.5 |
|
B |
12±0.3 |
17.5±0.3 |
17.5±0.3 |
20.5±0.3 |
20.5±0.3 |
|
C |
40.5±0.5 |
47±0.5 |
54±0.5 |
62±0.5 |
62±0.5 |
|
D |
16±0.5 |
20±0.5 |
20±0.5 |
23±0.5 |
23±0.5 |
|
E |
36±0.5 |
45±0.5 |
45±0.5 |
48±0.5 |
49.5±0.5 |
|
F |
20.5±0.5 |
21.5±0.5 |
22.5±0.5 |
23.5±0.5 |
23.5±0.5 |
|
G |
10Min |
8Min |
|||
|
H |
4.0±0.3 |
5.0±0.3 |
5.75±0.3 |
||
|
I* |
1.2±0.1 |
||||
Pin definition
|
Definition |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Instructions |
FG |
N |
L |
−V₁ |
+V₁ |
−V₂ |
COM |
+V₂ |
