DC Charging Station

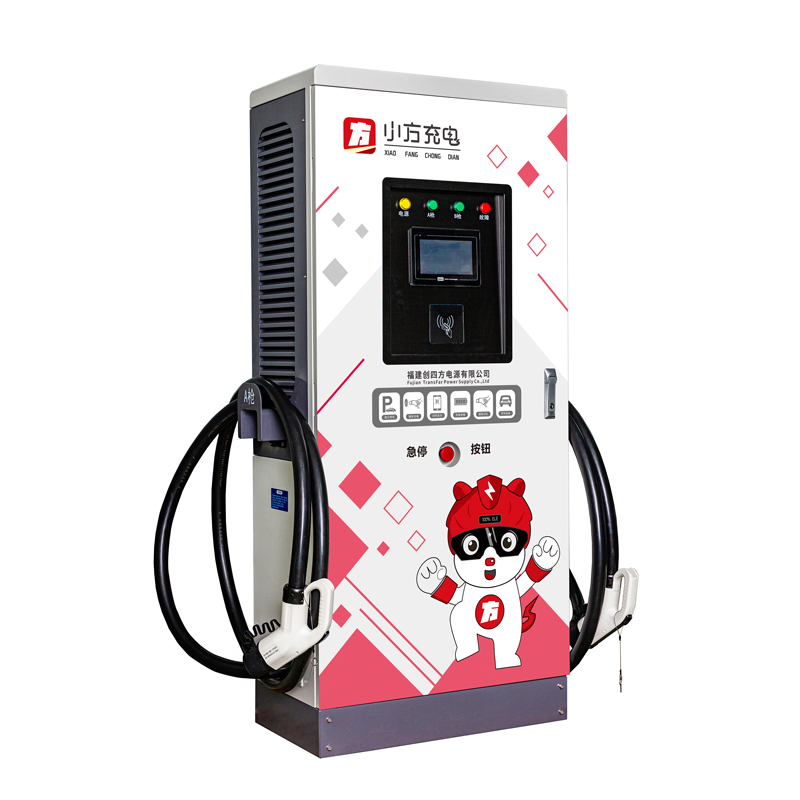

Floor Type DC Charging Pile for Electric Vehicle
Product introduction
Application
Specification
|
Specification |
||
|
Structure |
User interface |
7-inch LCD display |
|
Installation methods |
Floor type |
|
|
Routing mode |
Down in, down out |
|
|
Cable length |
5m |
|
|
Environmental |
Operating temperature |
,-25℃ - 60℃ |
|
Humidity |
5%-95%Non-congealing cream |
|
|
Working dial |
<3000 |
|
|
Protection grade |
IP54 |
|
|
Type of cooling |
Forced air cooling |
|
|
Noise control |
≤60dB |
|
|
Safety |
MTBF |
≥100000h |
|
Executive standard |
GB/T20234 GB/T18487 GB/T27930 NB/T33008 NB/T33002 |
|
|
Safety function |
Charging gun temperature detection, over voltage protection, under voltage protection, overload protection, short circuit protection, ground protection, over temperature protection, low temperature protection, insulation monitoring protection, polarity reverse connection protection, lightning protection, scram protection, leakage protection |
|
|
Electrical |
Input voltage |
AC380V土20 % |
|
Input frequency |
45-65Hz |
|
|
Output voltage |
150-1000V |
|
|
Maximum output current |
0-133A |
|
|
Measuring accuracy |
Level 0.5 |
|
|
Current limiting protection value |
>110% |
|
|
Stabilized Voltage precision |
≤土0. 5% |
|
|
Stabilized current precision |
≤土1% |
|
|
Ripple factor |
土 0. 5% |
|
|
Efficiency |
94.5% |
|
|
Power factor |
≥0.99 (50% load up) |
|
|
Harmonic content THD |
≤5% (50% load up) |
|
|
Functional |
Interface |
7-inch LCD display |
|
Charging mode |
Automatic charge/charge/amount of charge |
|
|
Mode of payment |
Swipe card/wechat scan code/APP |
|
|
Communication interface |
The large network 2/3/4G (optional) |
|
