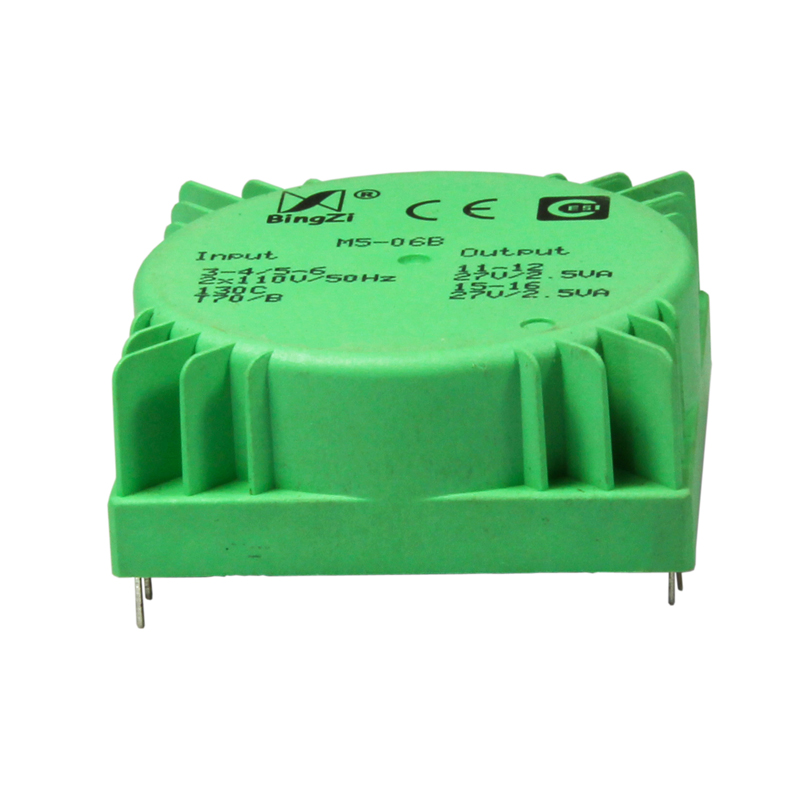

"Green Cube" M Series Circular Printed Circuit Board Welded Power Transformer

The "Green Cube" M Series ring-type fully enclosed epoxy pot-sealed power transformer includes two product lines: M and MS series. The M Series features dual input, allowing for convenient series or parallel configurations to meet different input requirements. The MS Series offers a single input for simple connection and ease of use. Both series have built-in temperature protectors for safe operation, high efficiency, minimal magnetic leakage, excellent output characteristics, strong EMC capability, compact size, and light weight. The casing is made of green flame-retardant PPO engineering plastic. These performance indicators meet the national requirements for "green, environmental protection, energy saving, and high efficiency" in the power supply industry, earning it the name "Green Cube" for its outstanding qualities.

product details

Features

① The transformers have fully-encapsulated printed circuit boards that can be directly welded and assembled, making them easy to use with a perfect outline.

② They have a compact and solid structure that is vibration-proof, moisture-proof, flame-resistant, and has high dielectric strength.

③ The transformers allow for different input and output configurations by changing the connection method.

④ They have low idle current, high power factor, good capacity to withstand over input voltage, and are strong in EMC.

⑤ A built-in temperature protector makes them safer to use.

Ambient Conditions

① Ambient temperature: -25℃～+70℃°C

② Relative humidity: ≤90% at 40°C

③ Atmospheric pressure: 860～1060mbar (about650～800mmHg)

Insulation Rating

Class B (130℃).

Safety Features

① Dielectric resistance: >1,000MΩ in normal condition

② Insulation withstand voltage: 4,000V (50Hz)/1 minute

③ Insulation withstand voltages: continuously 20 times impact of 6kV (50Hz)/50μS

④ Fire-retardant: in conformity with UL94-V0

Rated Power

1.6VA, 3.2VA, 5VA, 7VA, 10VA, 15VA, 25VA, 35VA, 50VA, 90VA, 110VA, 160VA

Rated Voltage

① Primary: 2x110V±10% 50Hz-60Hz

Secondary: 2x6V, 2x7.5V, 2x9V, 2x12V, 2x15V, 2x18V, 2x21V, 2x24V, 2x27V

② We offer a non-standard series that can be customized to meet the specific requirements of our customers.

Universal technical parameters

o Idle current: ≤4mA

o Idle loss: ≤0.4W

o Voltage regulation ratio: ≤18%

o Temperature rise: ≤28°C

o Weight: 300g

o Dimensions (LxWxH): 60x60x37.5mm

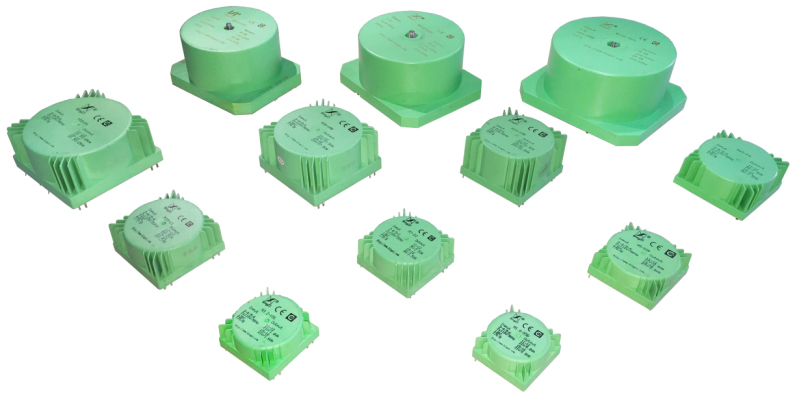

M Series standard product specification

SN	Model	Output Power	Idle Current	Idle Loss	Voltage Regulation	Temperature Rise	Weight	L×W×H Tolerance±0.5(mm)³
1	M1.6	1.6VA	≤1.0mA	≤0.08W	≤30％	≤22℃	80g	39.6×39.6×18.5
2	MS1.6	1.6VA	≤1.0mA	≤0.08W	≤30％	≤22℃	80g	39.6×39.6×18.5
3	M3.2	3.2VA	≤1.5mA	≤0.1W	≤28％	≤23℃	120g	44.7×44.7×19.5
4	MS3.2	3.2VA	≤1.5mA	≤0.1W	≤28％	≤23℃	120g	44.7×44.7×19.5
5	M5	5VA	≤2.0mA	≤0.15W	≤25％	≤24℃	150g	49.7×49.7×19.5
6	MS5	5VA	≤2.0mA	≤0.15W	≤25％	≤24℃	150g	49.7×49.7×19.5
7	M7	7VA	≤2.5mA	≤0.2W	≤20％	≤25℃	180g	49.7×49.7×23.1
8	MS7	7VA	≤2.5mA	≤0.2W	≤20％	≤25℃	180g	49.7×49.7×23.1

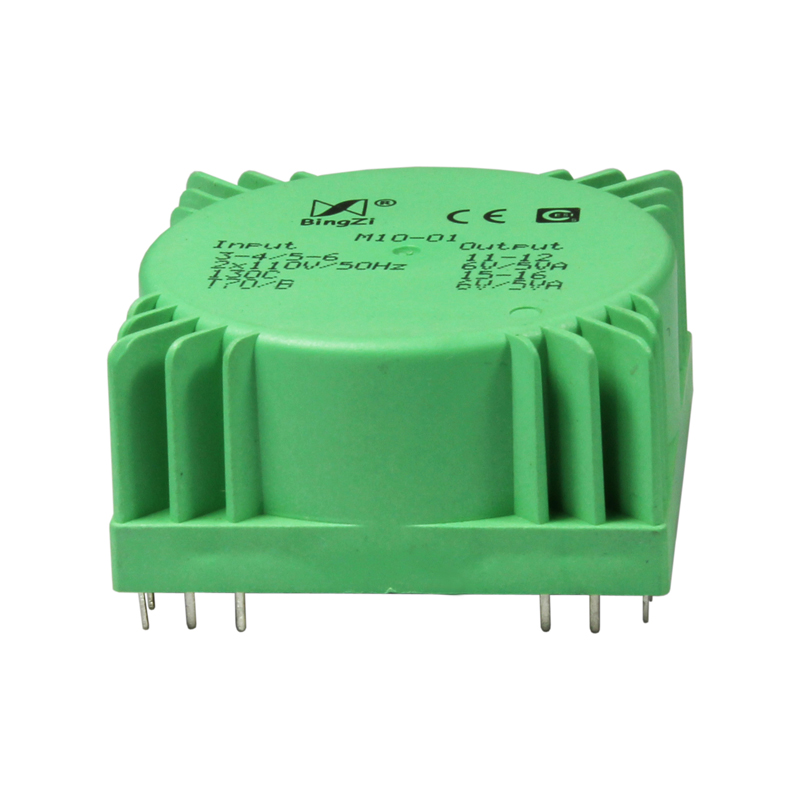

9	M10	10VA	≤3.5mA	≤0.3W	≤18％	≤26℃	250g	55×55×26
10	MS10	10VA	≤3.5mA	≤0.3W	≤18％	≤26℃	250g	55×55×26

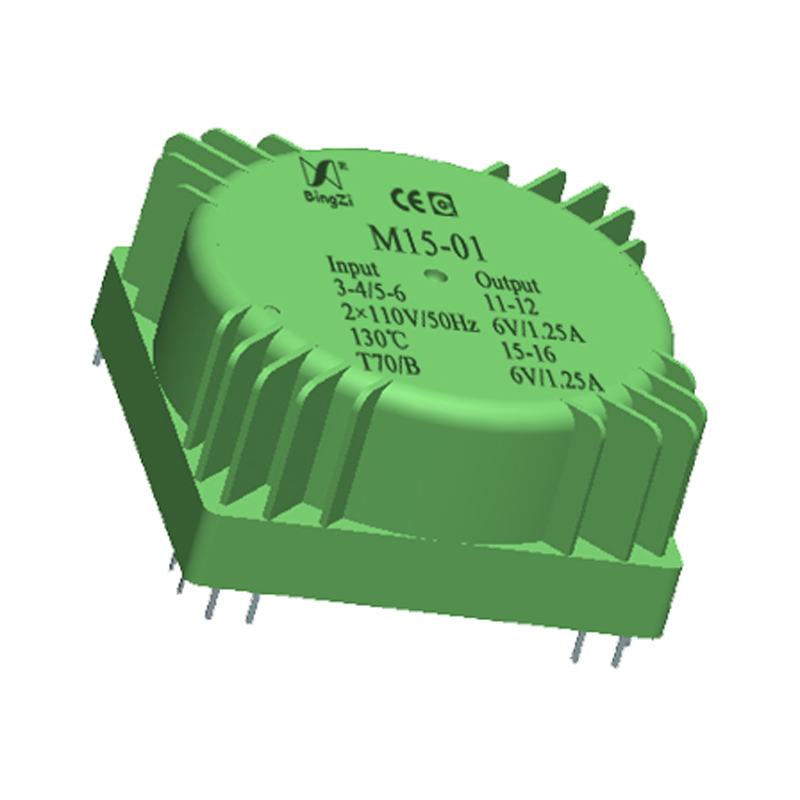

11	M15	15VA	≤4mA	≤0.4W	≤18％	≤28℃	300g	60×60×26.3
12	MS15	15VA	≤4mA	≤0.4W	≤18％	≤28℃	300g	60×60×26.3
13	M25	25VA	≤6mA	≤0.6W	≤14％	≤30℃	430g	60×60×37.5
14	MS25	25VA	≤6mA	≤0.6W	≤14％	≤30℃	430g	60×60×37.5

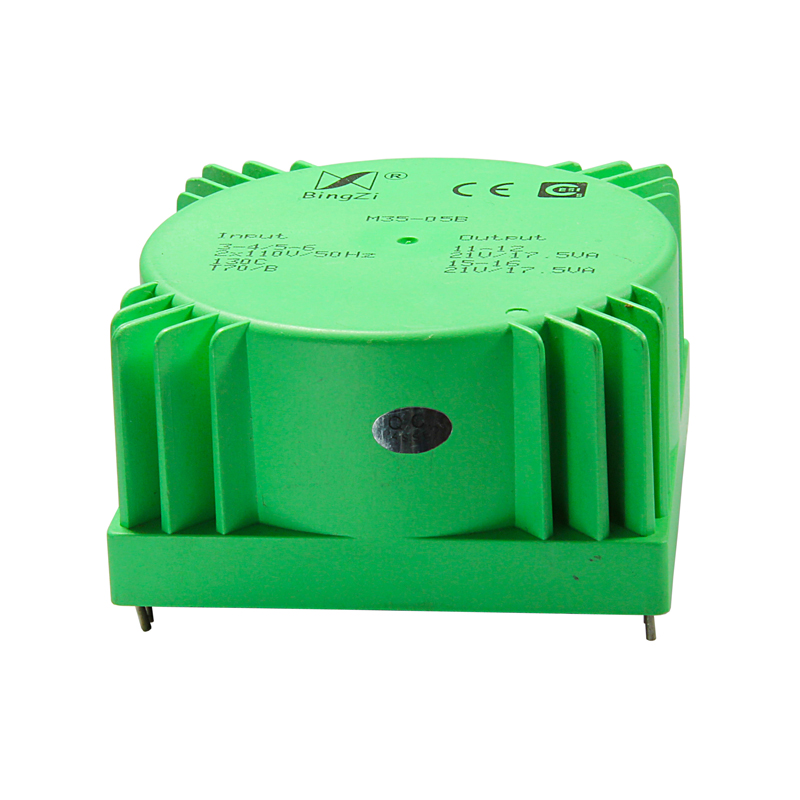

15	M35	35VA	≤8mA	≤0.8W	≤12％	≤33℃	500g	72×72×37.5
16	MS35	35VA	≤8mA	≤0.8W	≤12％	≤33℃	500g	72×72×37.5

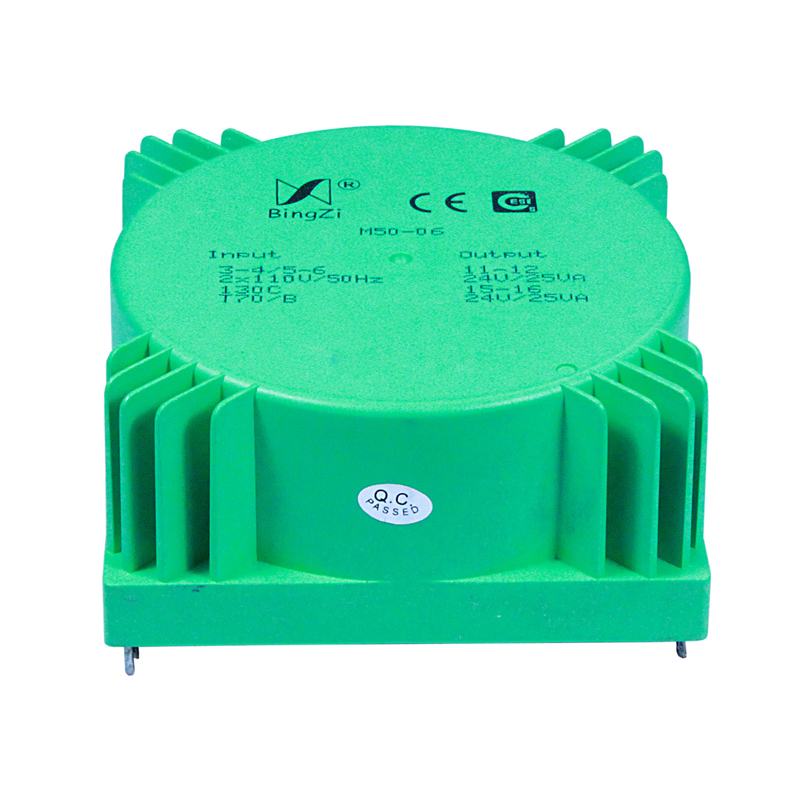

17	M50	50VA	≤10mA	≤1.0W	≤10％	≤35℃	650g	82.4×82.4×37.5
18	MS50	50VA	≤10mA	≤1.0W	≤10％	≤35℃	650g	82.4×82.4×37.5
19	MS90	90VA	≤5.5mA	≤1.0W	≤7％	≤40℃	1.4kg	106×88.5×55
20	MS110	110VA	≤7.5mA	≤1.5W	≤6％	≤45℃	1.84kg	116×98.5×54.5
21	MS160	160VA	≤9.5mA	≤2.0W	≤5％	≤50℃	2.3kg	126×108.5×57.5
