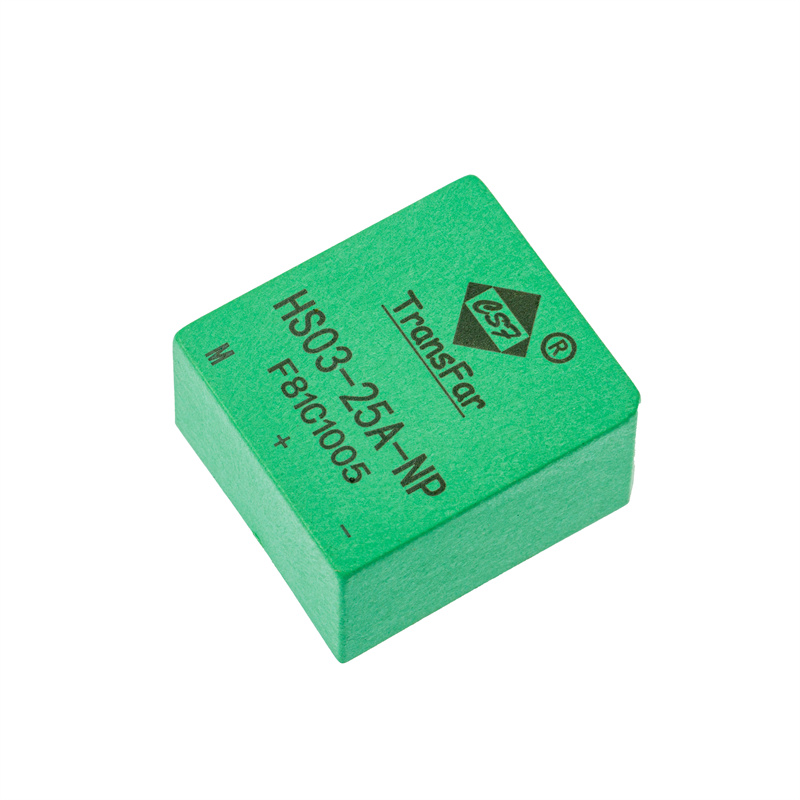

HS-P Series Current Sensor (transducer)

Peculiarity

1. The vertical through-core printed circuit board is welded and installed directly, with beautiful appearance；
2. The Hall effect and closed-loop magnetic compensation principle are used to make the tested loop highly insulated from the test loop；
3. Used to measure DC, AC and pulsating current；
4. Fully enclosed structure, good mechanical and environmental resistance, strong voltage isolation ability, safe and reliable.

product details

Environmental conditions of use

1. Operating temperature range: -25℃ ~ +85℃;

2. Relative humidity: ≤90% when the temperature is 40℃, no condensation;

3. Storage temperature range: -40℃ ~ +100℃;

4. Atmospheric pressure: 860~1060mbar (about 650 ~ 800mmHg).

Operating frequency range

0-150kHz.

Insulation resistance class

B level (130℃).

Safety features

1. Insulation resistance: normally greater than 1000MΩ;

2. Electrical strength: can withstand power frequency 3000V/1 minute;

3. Flame retardant: in line with UL94-V0 standard.

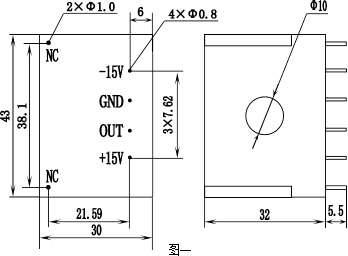

Outline drawing and installation size

(See Figure 1 on the right, unit: mm)

(Note: NC is an empty foot, used to fix on the circuit board)

Performance parameters (see table below)

Model number Technical parameter	HS-20A-P	HS-30A-P	HS-50A-P	HS-100A-P
Rated input current IPN	20A	30A	50A	100A
Measuring range	0～30A	0～45A	0～75A	0～150A
The rated output current ISN't	50mA	50mA	100mA	100mA
Load resistance	﹤85Ω	﹤80Ω	﹤40Ω	﹤30Ω
Operating voltage	±15V DC(±5%)
linearity	﹤0.5%
Current consumption	10mA+ Output current
Offset current	﹤±0.2mA(I_PN =0)
bandwidth	DC～150kHz
Insulation withstand voltage	3kV Effective value /50Hz/1 minutes
Response time	﹤1µs
Zero temperature drift	﹤±0.5mA
