Open-Loop Sensor (Industrial)
01

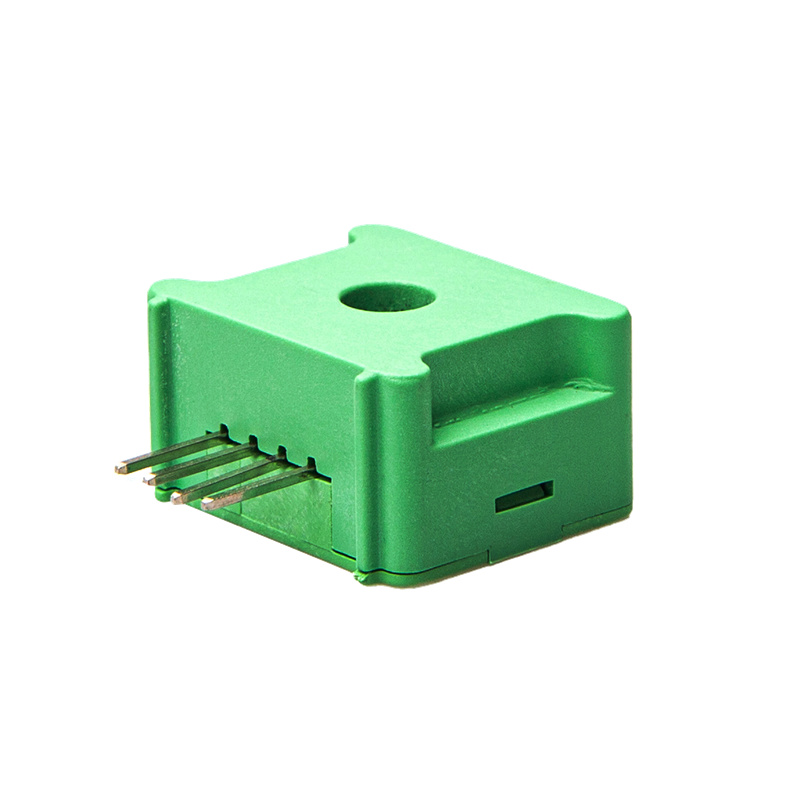

HS06-P Series Current Sensor/Transducer
Ambient conditions
① Environmental operating range: -25℃~+ 85 ℃;
② Ambient temperature: -40℃~+ 100 ℃;
③ Relative humidity: ≤90% at 40℃;
④ Atmospheric pressure: 860~1060m bar (about 650 ~ 800mmHg ).
Range of working frequency
0-20 kHz.
Insulation Rating
Class B (130℃).
Safety features
① Insulation resistance: > 1000MΩ in normal condition;
② Insulation withstand voltages: 2.5k V/1 min;
③ Fire retardancy: In conformity with UL94-V0.

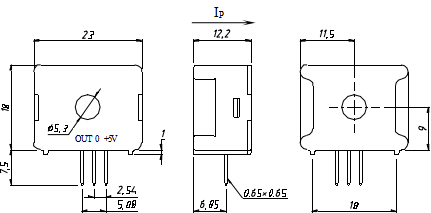

Outline drawing and installation dimensions
as shown in the following figure ( Unit : mm)
Performance Data
|
Model Technical parameter |
HS06-10A-P |
HS06-20A-P |
HS06-30A-P |
HS06-40A-P |
|
Rated input current IPN |
10A |
20A |
30A |
40A |
|
Measuring range |
0～±20A |
0～±40A |
0～±60A |
0～±80A |
|
Rated output voltage VSN |
2.5V ± 1V (± 1 % ) |
|||
|
Operating Voltage |
5V DC(±5%) |
|||
|
Load Resistance |
≥ 10kΩ |
|||
|
Zero offset voltage |
IP = 0 TA = 25℃2.5 V ±1% |
|||
|
Linearity |
<1% |
|||
|
Current consumption |
20mA |
|||
|
Bandwidth |
DC～20kHz |
|||
|
Insulation withstand voltage |
2.5 kV rms/50Hz/1min |
|||
|
Response time |
< 3 μs |
|||
|
Temperature drift |
<±0.01%/℃ |
|||
Instructions for use and precautions
① In order to obtain a forward output voltage at OUT , the input current must flow in the direction indicated by the arrow.
② When using, first connect the load and connect the 5V working voltage, and then connect the input current.
③ The sensor output signal type is the same as the input signal.
④ Secondary connection:
+5V: +5V DC
0: 0V
OUT: output terminal
Typical applications
● DC variable frequency speed regulation, servo motor drives
● Static converters for DC motor drives
● Uninterruptible Power Supplies (UPS)
● Switched Model Power Supplies (SMPS)
● Power supplies for welding applications
