Open-Loop Sensor (Industrial)
01

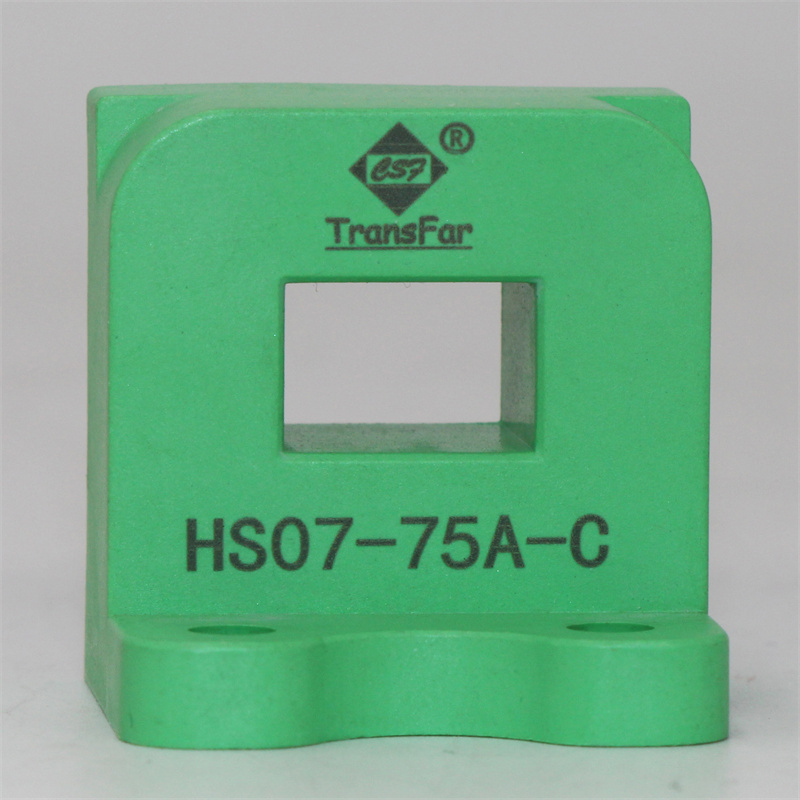

HS07-C Series Current Sensor/Transducer
Ambient conditions
① Ambient temperature: -25℃~ +85℃ ;
② Storage environment temperature: -40℃~ +100 ℃;
③ Relative humidity: ≤ 90% at 40 ℃ , no condensation;
④ Atmospheric pressure: 860~1060mbar ( about 650 ~ 800mmHg ) .
Safety features
① Dielectric resistance: >1000MΩ in normal condition ;
② Insulation withstand voltages: 3000V/1 min;
③ Fire retardancy: in line with UL94-V0 standard;
④ Insulation rating: Class B (130℃) .

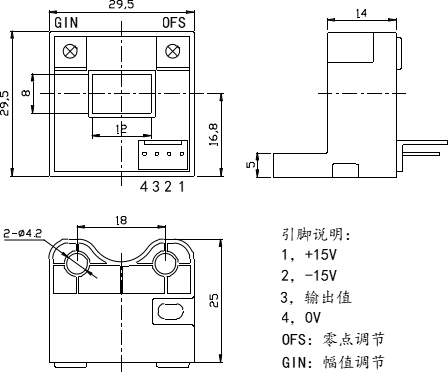

Outline drawing and installation dimensions
as shown in the following figure ( Unit : mm)
Performance Data
|
Model Technical parameter |
HS07-50A-C |
HS07-100A-C |
HS07-150A-C |
HS07-200A-C |
|
Rated input current IPN |
50A |
100A |
150A |
200A |
|
Measuring range |
0 to ±100A |
0 to ±200A |
0 to ±300A |
0 to ±400A |
|
Rated output voltage VSN |
4V |
|||
|
Load Resistance |
≥10kΩ |
|||
|
Operating Voltage |
±15V DC(±5%) |
|||
|
Current consumption |
<20 mA |
|||
|
Linearity |
<1% |
|||
|
Zero offset voltage |
IP = 0 30m V | |||
|
Offset voltage temperature drift |
IP = 0 <±1mV/℃ | |||
|
Bandwidth |
DC to 20kHz |
|||
|
Response time |
<3μs |
|||
|
Temperature drift |
<±0.01%/℃ |
|||
Instructions for use and precautions
① In order to obtain a positive output voltage at the output, the input current must flow in the direction indicated by the arrow.
② When using, first connect the load and connect the working voltage (±15V) , and then connect the input current.
③ Secondary connection:
+ : +15VDC
- : -15VDC
VO : output terminal
GND : ±15V power relative to zero
Typical applications
● DC variable speed regulation, servo motor drives
● Switched Model Power Supplies
● Uninterruptible Power Supplies
● Inverter power supplies
● Automotive Electronics
● Power supplies for welding applications
