Open-Loop Sensor (EV)
01

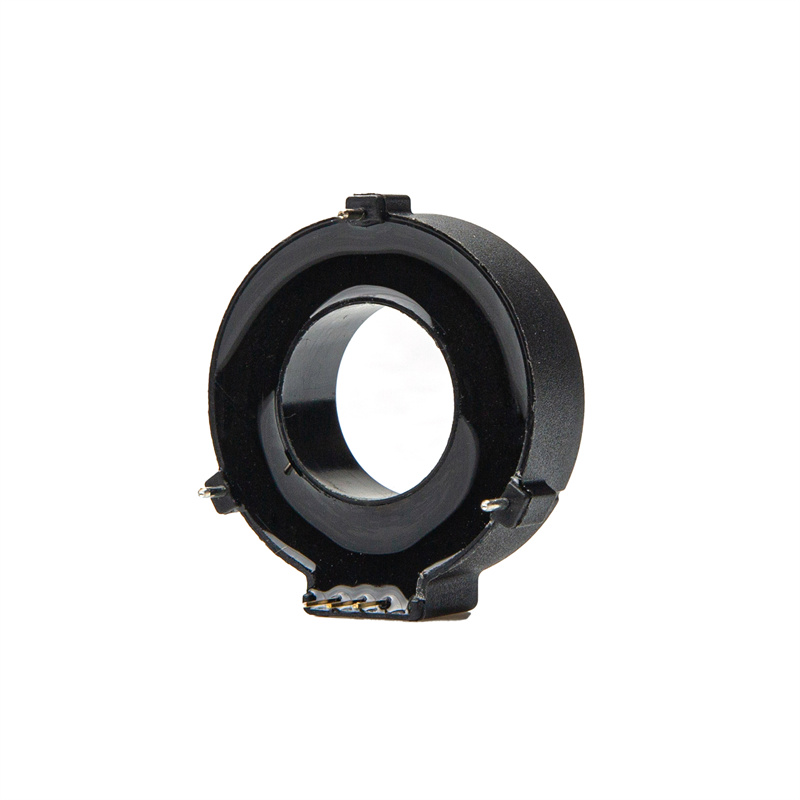

HS11C-AP Series Current Sensor(Tansducer)
Key performance parameter
Supply voltage: 5V;
Rated output: 2.5±2V;
Accuracy: ≤±2%;
Zero point: ≤±20mV;
Band width (-3dB) : 30KHz;
Response time: < 8uS;
Operating temperature: -40 ~ 125℃;
Application
◆ AC frequency converter
◆ Uninterruptible Power Supplies (UPS)
◆ Static converters for DC motor drives
◆ Switched Mode Power Supplies (SMPS)
◆ Electric Vehicles
◆ Communication power supplies
Model list
|
Product MODEL |
||
|
Model |
Rated input current IPN (A) |
Measuring range IPM (A) |
|
HS11C-50A-P |
50 |
±50 |
|
HS11C-100A-P |
100 |
±100 |
|
HS11C-150A-P |
150 |
±150 |
|
HS11C-200A-P |
200 |
±200 |
|
HS11C-300A-P |
300 |
±300 |
|
HS11C-400A-P |
400 |
±400 |
|
HS11C-500A-P |
500 |
±500 |
|
HS11C-600A-P |
600 |
±600 |
|
HS11C-700A-P |
700 |
±700 |
|
HS11C-800A-P |
800 |
±800 |
|
HS11C-900A-P |
900 |
±900 |
