Open-Loop Sensor (Industrial)
01

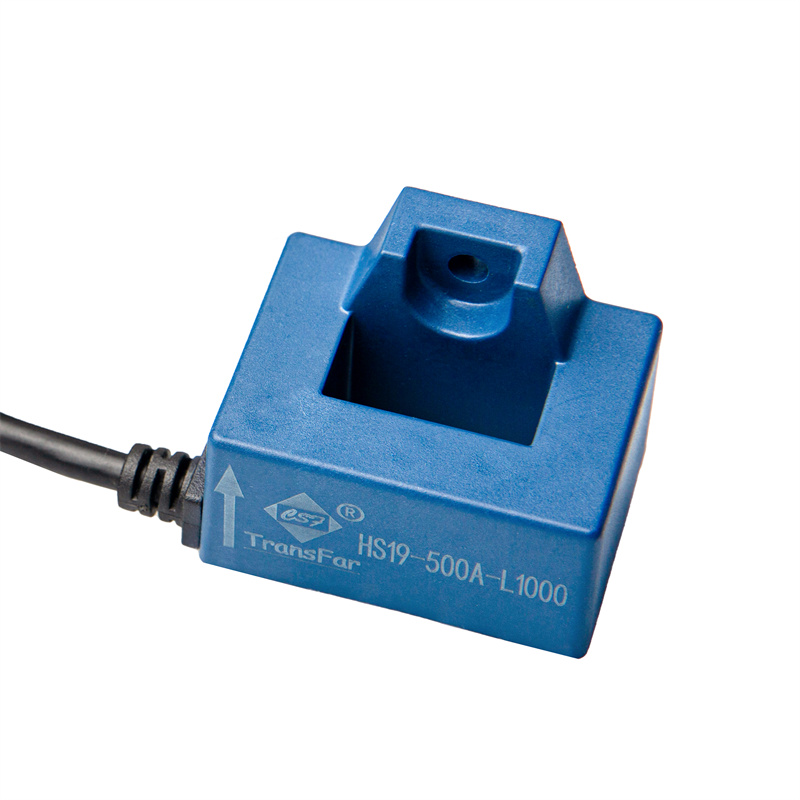

HS19-A-C Series Current Sensor(Transducer)
Key performance parameter
Supply voltage: ±15V;
Rated output: ±4V±40mV
Accuracy: ≤±1%;
Zero: ≤±20mV;
Band width (-3dB) : 50KHz;
Response time: < 3uS;
Operating temperature: -40 ~ 85℃;
Specific application field
Inverter
uninterruptible power supply (UPS)
DC motor driven static converter
switching power supply (SMPS)
welding machine
power battery management
Model List
|
Product model |
||
|
Model |
Rated Input Current IPN (A) |
Measuring Range IPM (A) |
|
HS19- 50A-C |
50 |
±150 |
|
HS19- 75A-C |
75 |
±225 |
|
HS19-100A-C |
100 |
±300 |
|
HS19-150A-C |
150 |
±450 |
|
HS19-200A-C |
200 |
±600 |
|
HS19-300A-C |
300 |
±900 |
|
HS19-400A-C |
400 |
±900 |
|
HS19-500A-C |
500 |
±900 |
|
HS19-600A-C |
600 |
±900 |
|
HS19-50A-L500 |
50 |
± 150 |
|
HS19-75A-L500 |
75 |
± 225 |
|
HS19-100A-L500 |
100 |
± 300 |
|
HS19-150A-L500 |
150 |
± 450 |
|
HS19-200A-L500 |
200 |
± 600 |
|
HS19-300A-L500 |
300 |
± 900 |
|
HS19-400A-L500 |
400 |
± 900 |
|
HS19-500A-L500 |
500 |
± 900 |
|
HS19-600A-L500 |
600 |
± 900 |
