Open-Loop Sensor (Industrial)
01
HS24-A-E4 Series Current Sensor
Key performance parameter
Supply voltage: ±15V;
Rated output: ±4V±40mV
Accuracy: ≤±1%;
Zero: ≤±20mV;
Band width (-3dB) : 50KHz;
Response time: < 3uS;
Operating temperature: -25 ~ 85℃;
Specific application field
Dc variable frequency speed regulation, servo motor switching power supply, uninterruptible power supply invertepower supply automotive electronic welding machine
Model List
|
Product model |
||
|
Model |
Rated input current IPN (A) |
Measuring range IPM (A) |
|
HS34-50A - C |
50 |
± 150 |
|
HS34-75A - C |
75 |
± 225 |
|
HS34-100A - C |
100 |
± 300 |
|
HS34-150A - C |
150 |
± 450 |
|
HS34-200A - C |
200 |
± 600 |
|

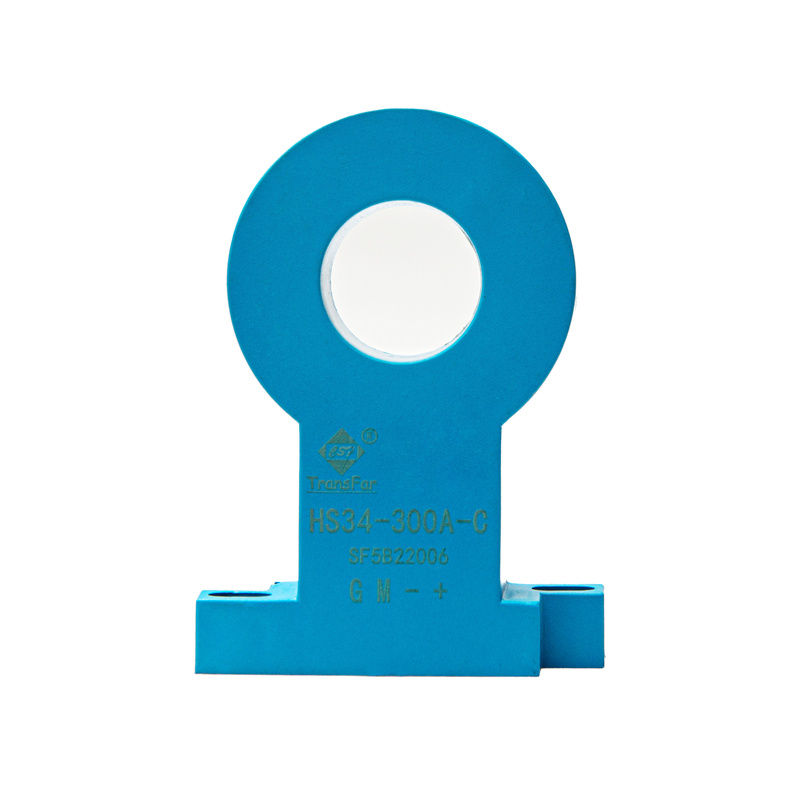

HS34-300A - C |
300 |
± 900 |
|
HS34-400A - C |
400 |
± 900 |
|
HS34-500A - C |
500 |
± 900 |
|
HS34-600A - C |
600 |
± 900 |
