Open-Loop Sensor (Industrial)
01

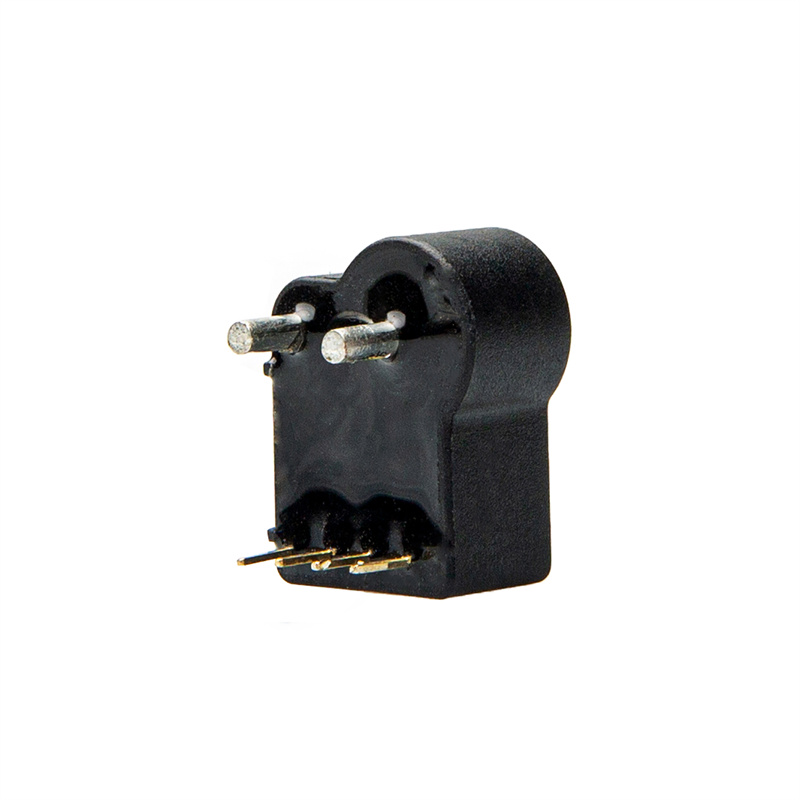

HS2M-A-P Series Current Sensor
Key performance parameter
Supply voltage: 5V;
Rated output: 2.5±2V;
Accuracy: ≤±0.8%;
Zero: ≤±8mV;
Band width (-3dB) : 280KHz;
Response time: < 0.8uS;
Operating temperature: -40 ~ 125℃；
Specific application areas
1. MPPT
2. Power grid side off-grid side
3. Electric vehicle charging pile
4. UPS
Model List
|
Product model |
||
| Model number |
Rated input currentIPN (A) |
Measuring range IPM (A) |
|
HS2M-20A-P |
20 |
±50 |
|
HS2M-32A-P |
32 |
±80 |
|
HS2M-40A-P |
40 |
±100 |
|
HS2M-50A-P |
50 |
±125 |
| HS3M-5A-P2 | 5 | ±12.5 |
| HS3M-10A-P2 | 10 | ±25 |
| HS3M-15A-P2 | 15 | ±37.5 |

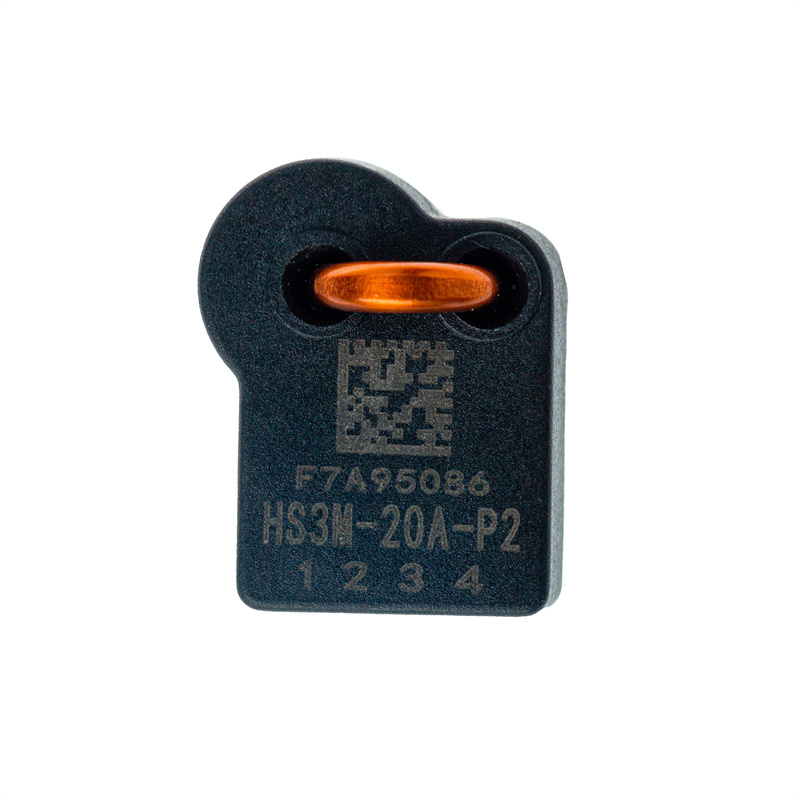

| HS3M-20A-P2 | 20 | ±50 |
| HS3M-25A-P2 | 25 | ±62.5 |
| HS3M-30A-P2 | 30 | ±75 |
|

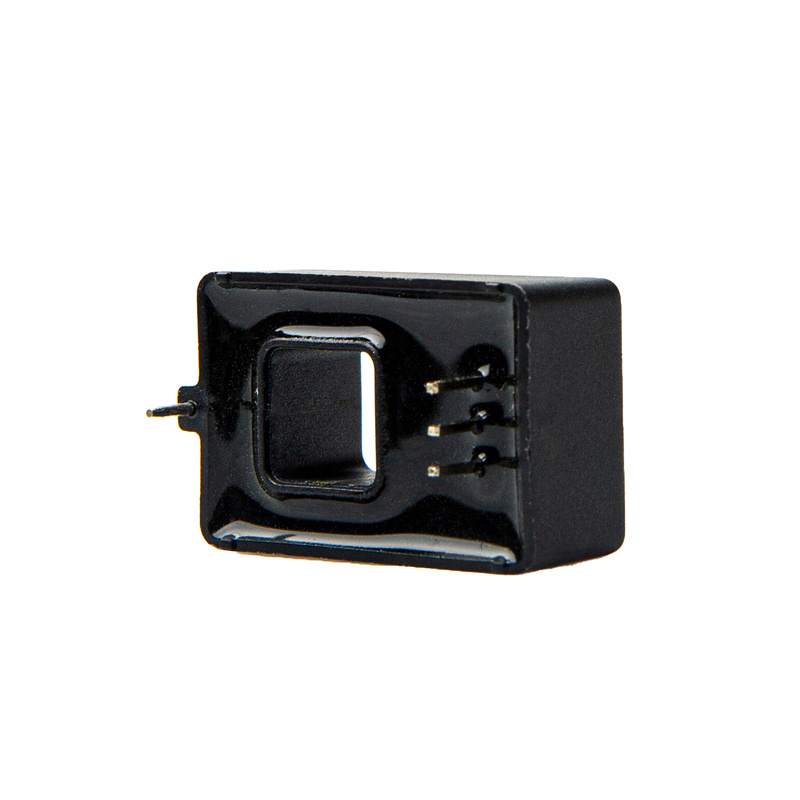

HS4M-20A-P1 |
20 |
±20 |
|

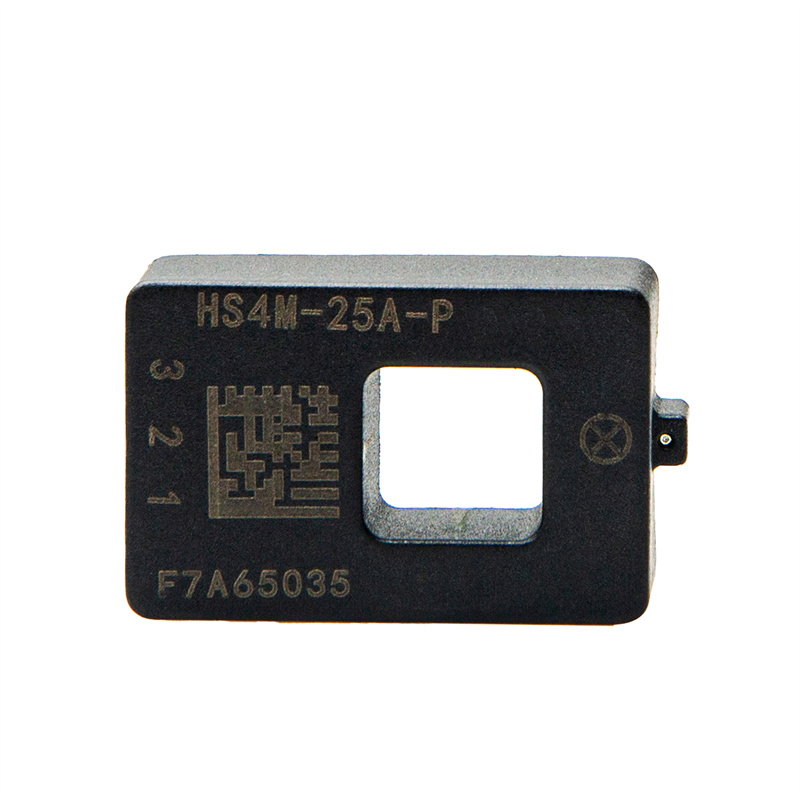

HS4M-25A-P1 |
25 |
±25 |
|
HS4M-32A-P1 |
32 |
±32 |
|

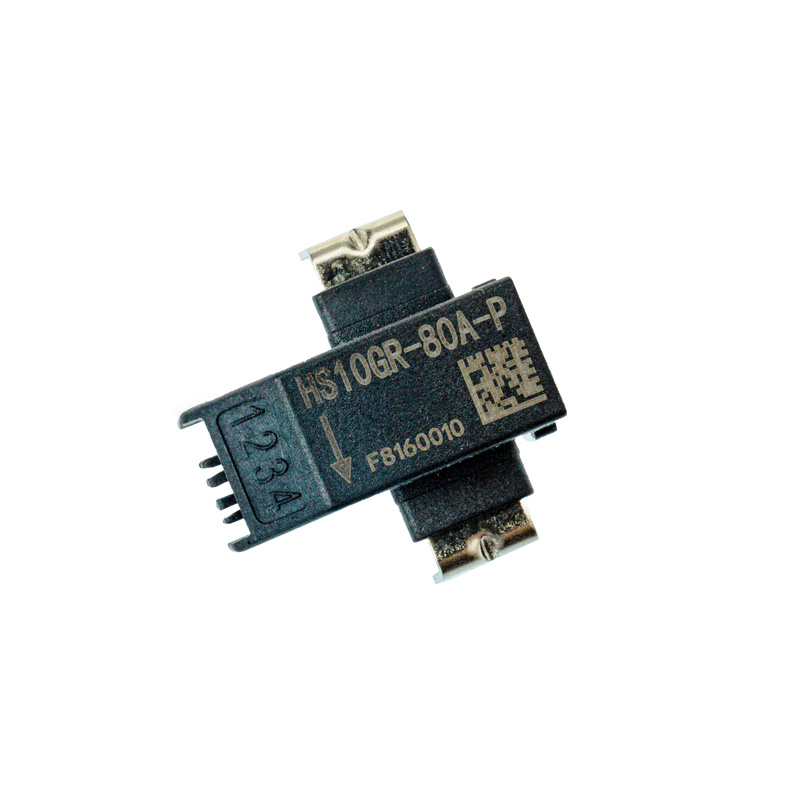

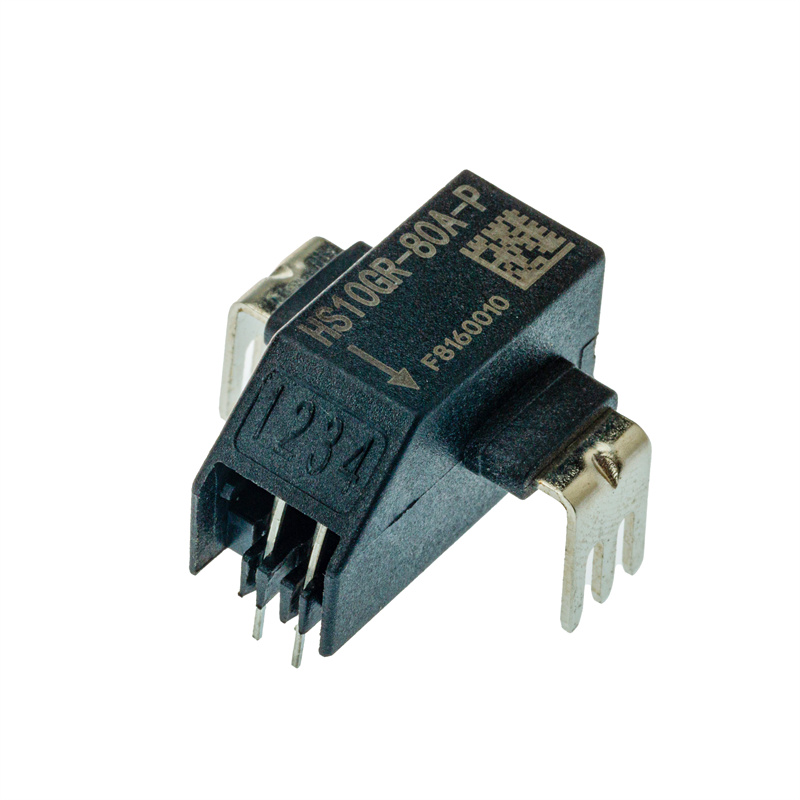

HS10GR-16A-P |
16 |
±40 |
