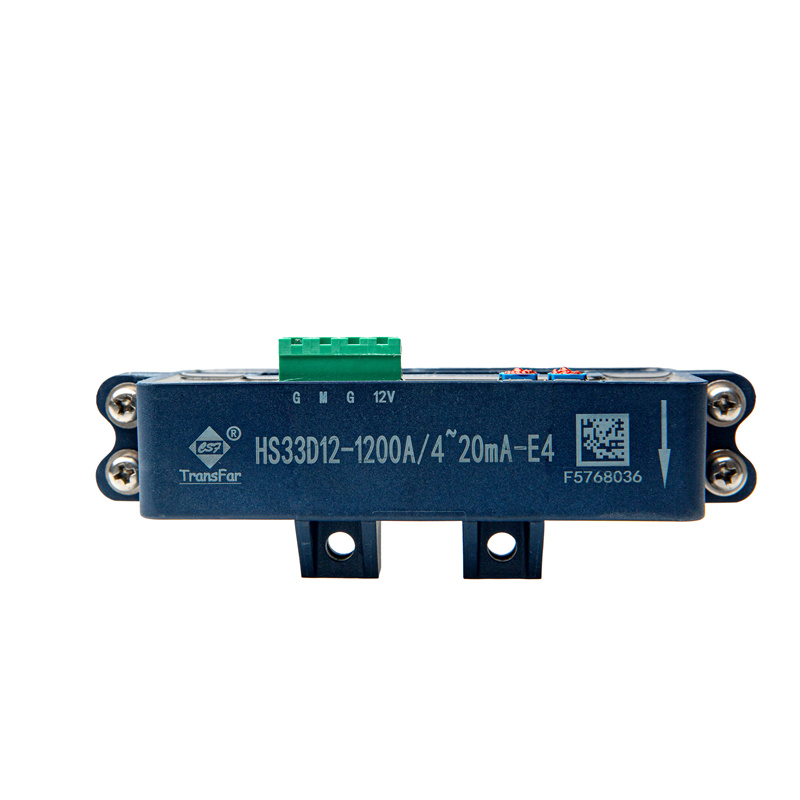

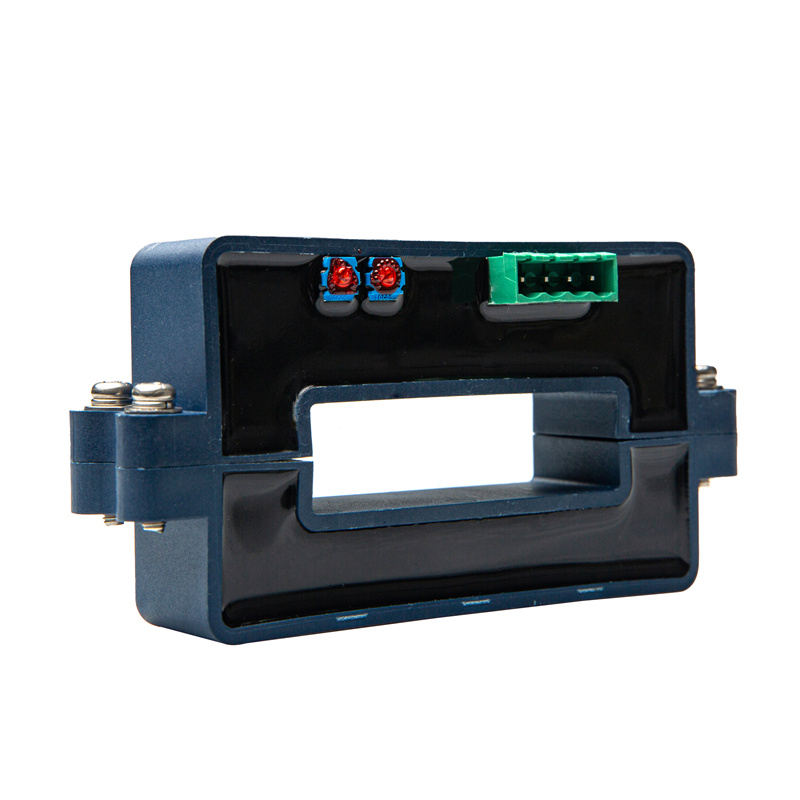

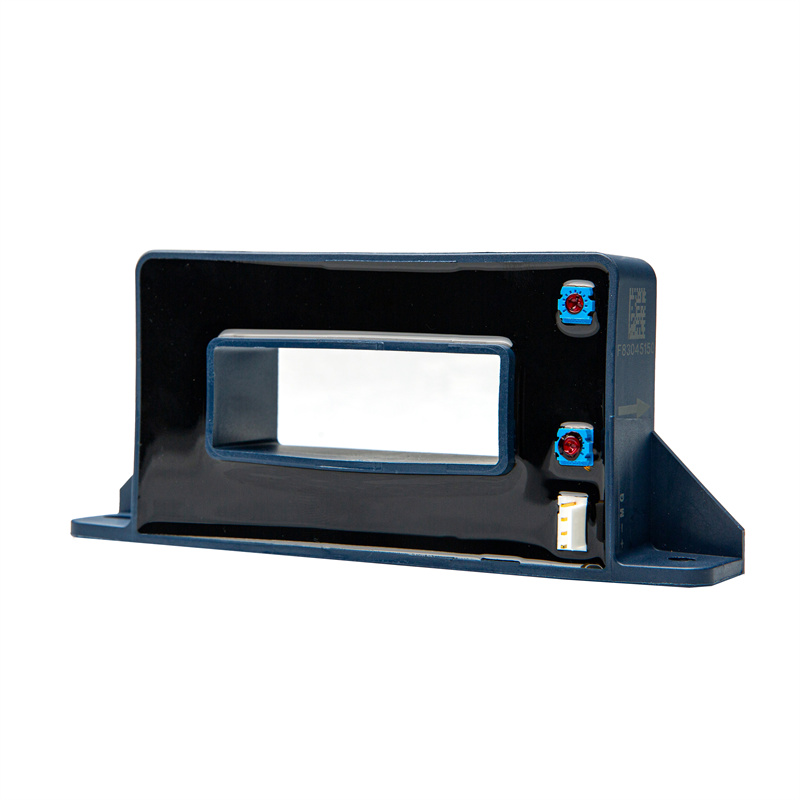

HS33D12-1200A4~20MA-E4 Series Current Sensor(Transducer)

Open loop Hall current sensor, analog signal output, 2.54 pitch or European standard terminal link, suitable for isolated DC, AC pulse and any irregular current measurement; Product response time is fast, wide broadband. A wide range of applications.

product details

Key performance parameter

Supply voltage: ±15V;

Rated output: ±4V±40mV

Accuracy: ≤±1%;

Zero point: ≤±10mV;

Band width (-3dB) : 150KHz;

Response time: < 10uS;

Operating temperature: -40 ~ 85℃;

Dc variable frequency speed regulation servo motor

switching power supply,

uninterruptible power supply inverter

power supply

automotive electronic

welding machine

Model List

Model	Rated input current I_PN(A)	Measuring range I_P_M(A)

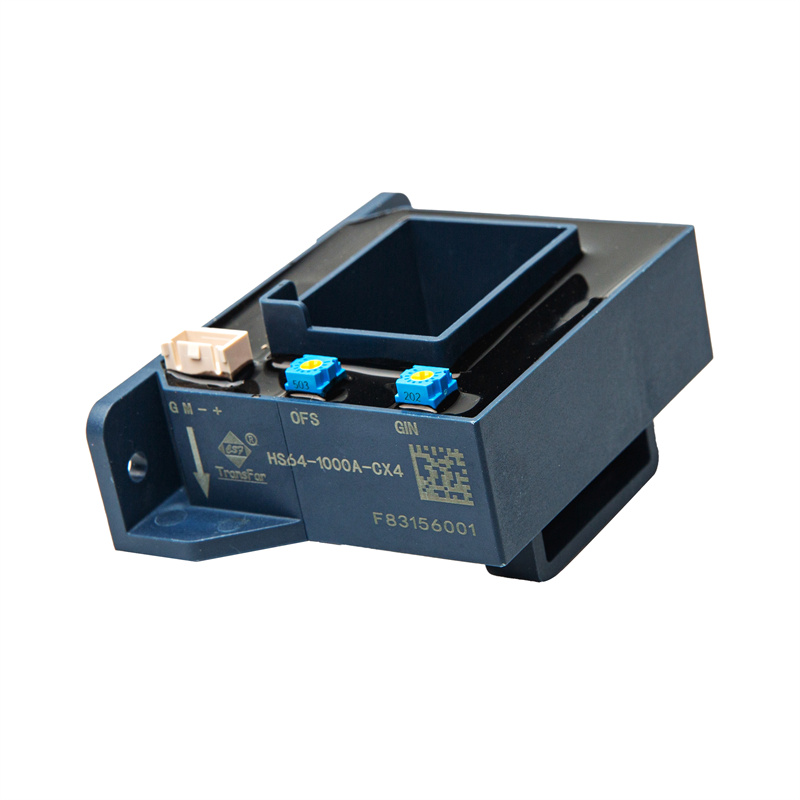

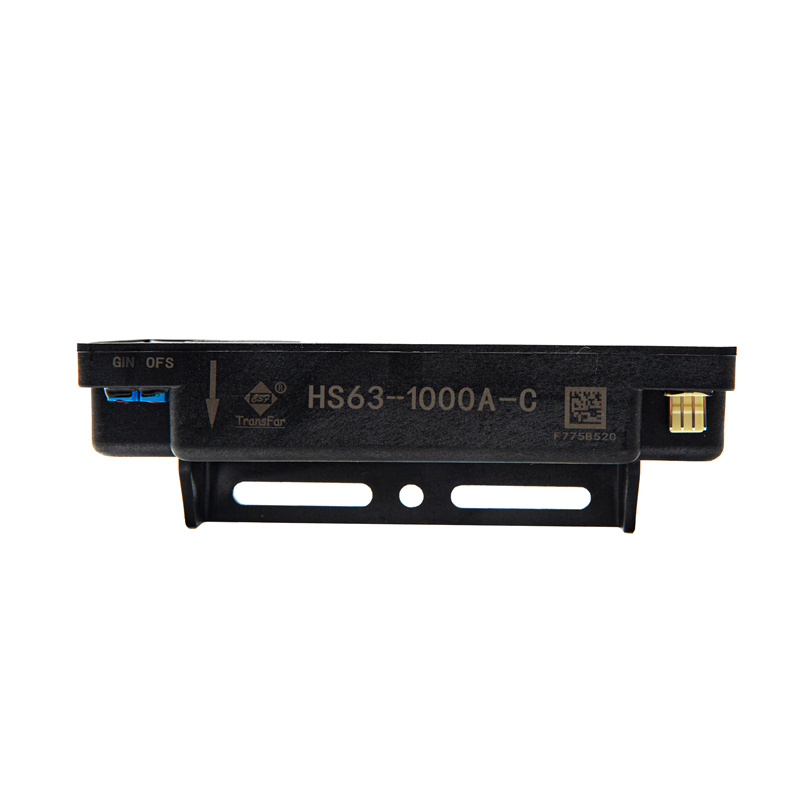

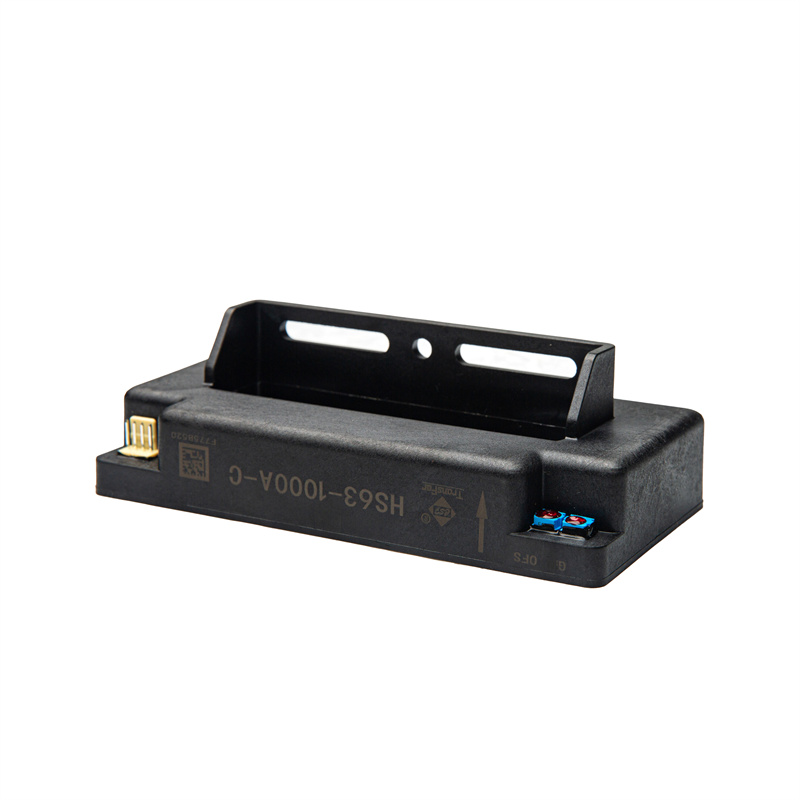

HS63-1000A -C	1000	± 1000
HS64- 200A-C	200	± 600
HS64- 400A-C	400	±1200
HS64- 500A-C	500	± 1500
HS64- 600A-C	600	± 1800
HS64- 800A-C	800	± 2400
HS64-1000A-C	1000	± 2500
HS64-1200A-C	1200	± 2500
HS64-1500A-C	1500	± 2500

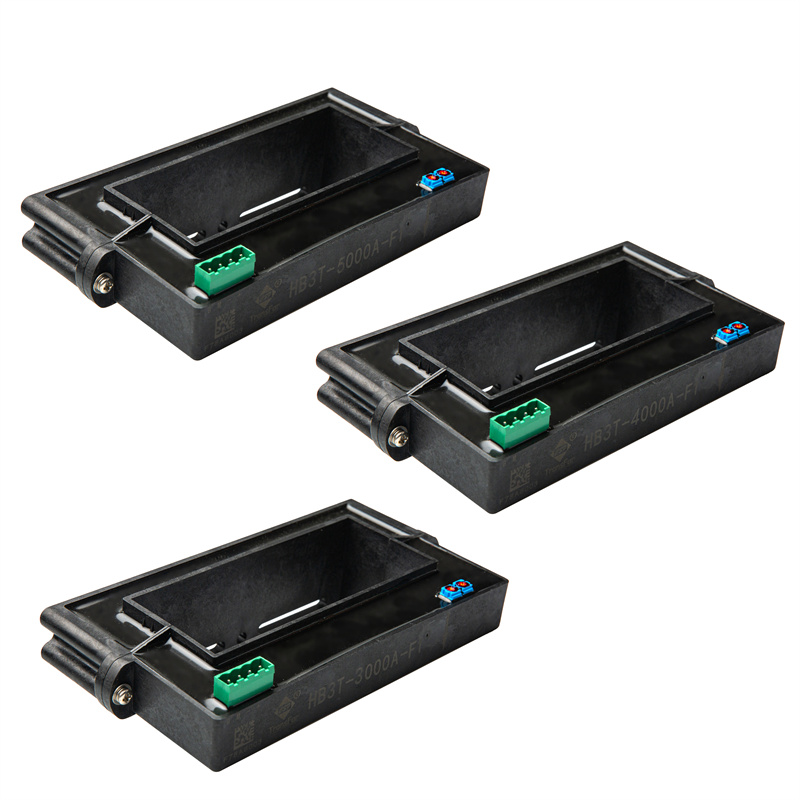

HB3T-4000A-E4	4000	±4000
HS33D12-1200A/4~20mA-E4	1200	0~ ± 1800

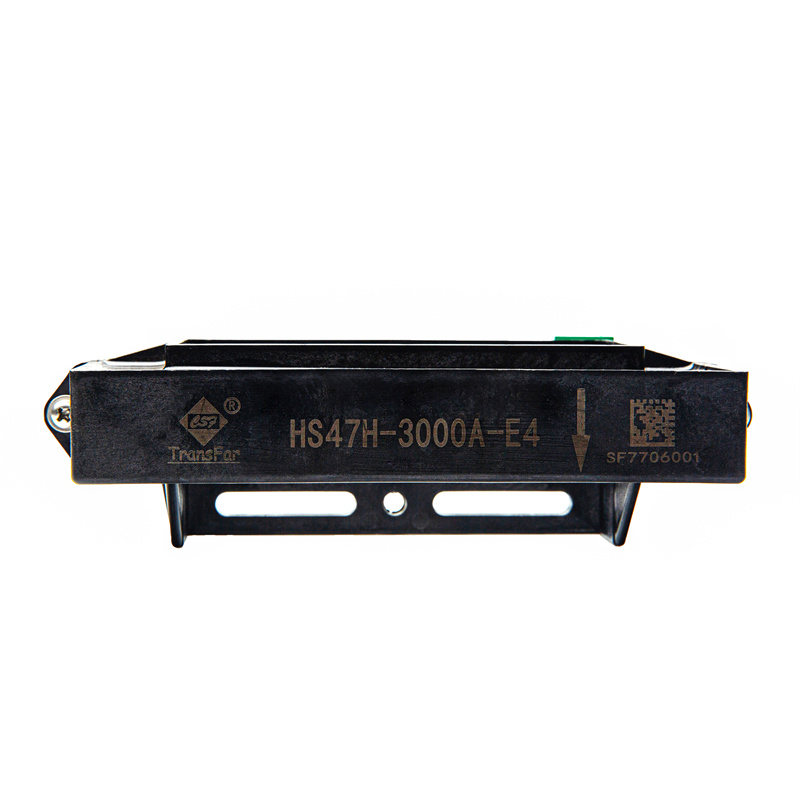

HS47H-3000A-E4	3000	±3000
HS47H-5000A-E4	5000	±5000

Product model
Model	Rated input current I_PN(A)	Measuring range I_P_M(A)
HS56-500A-C	500	± 1500
HS56-600A-C	600	± 1800
HS56-850A-C	850	± 2550
HS56-1000A-C	1000	± 3000

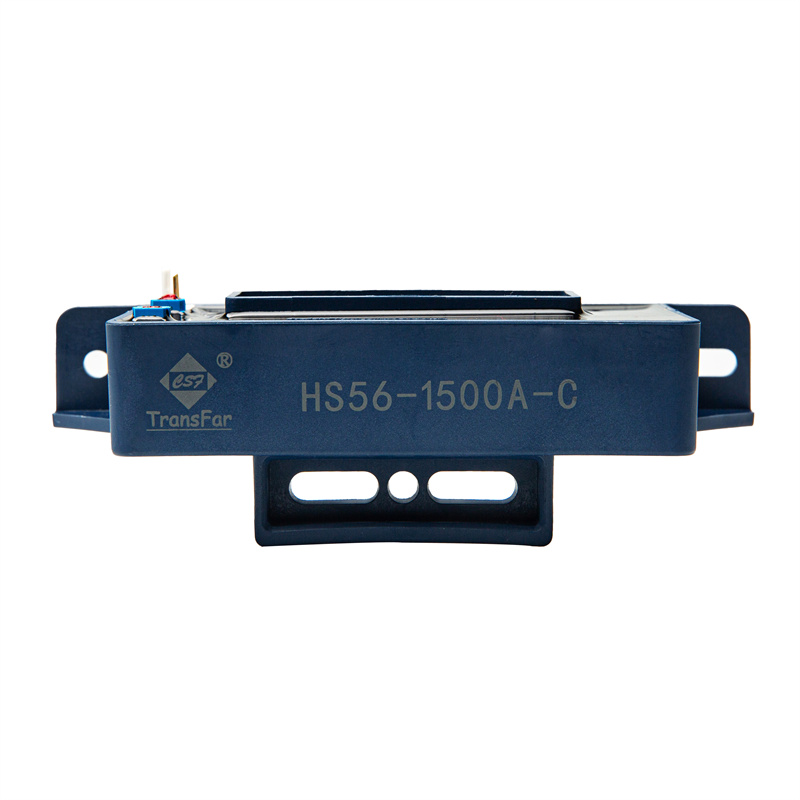

HS56-1500A-C	1500	± 4500
HS56-2000A-C	2000	± 5500
HS56-2500A-C	2500	± 5500
HS57- 800A-E4	800	± 1600
HS57-1000A-E4	1000	± 2100
HS57-1500A-E4	1500	± 2100
HS57-2000A-E4	2000	± 2100
HS57-3000A-E4	3000	± 3000
HS57-4000A-E4	4000	± 4500
HS60-2500A-E4	2500	±3000
HS61- 200A-C	200	± 600
HS61- 400A-C	400	±1200
HS61- 500A-C	500	±1500
HS61- 600A-C	600	±1800
HS61- 800A-C	800	±2400
HS61-1000A-C	1000	±2500
HS61-1200A-C	1200	±2500
HS61-1500A-C	1500	±2500
