Open-Loop Sensor (EV)
01

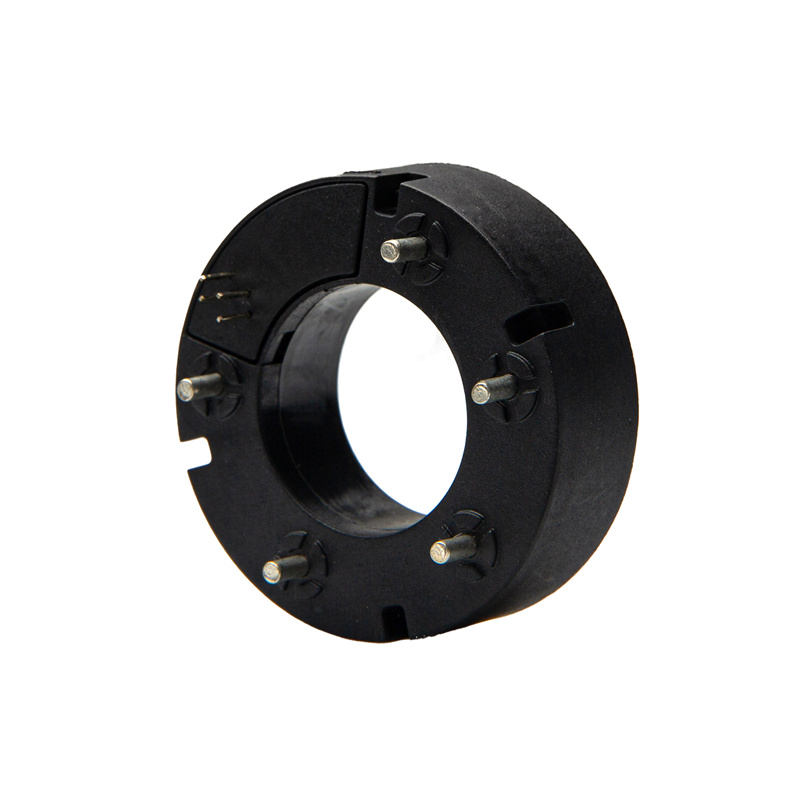

HS45-A-P1 Current Sensor/Transducer
Features
◆ Open loop using the Hall effect
◆ Galvanic separation between the primary circuit and the secondary circuit
◆ Low power consumption
◆ Wide range
◆ No insertion loss
◆ Raw materials recognized according to UL 94-V0
Application
◆ AC frequency conversion speed regulation equipment
◆ Uninterruptible Power Supplies (UPS)
◆ Static converters for DC motor drives
◆ Communication power supplies
◆ Inverter
Model list
|
Product model |
||
|
Model |
Rated input current IPN (A) |
Measuring range IPM (A) |
|
HS45-545A-P1 |
545 |
±1090 |
HS45-A-P1 Specification
|
Parameter |
Symbol | Unit | Min | Typ | Max |
Remark |
|
Electrical Data |
||||||
| Primary side rated current |
IPN |
A |
- |
545 |
- |
|
| Primary current measurement range |
IPM |
A |
-1090 |
- |
1090 |
|
| Supply voltage |
VC |
V |
4.75 |
5 |
5.25 |
|
| Rated output voltage |
V_FS |
V |
±1V |
@VC=5V | ||
| Zero output voltage |
VQOV |
V |
2.475 |
2.5 |
2.525 |
@VC=5V & IP=0A |
| Theoretical gain |
Gth |
mV/A |
- |
1.83 |
- |
|
| Current consumption |
IC |
mA |
7 |
12 |
14 |
@TA -40℃~+150℃ |
| Load resistance |
RL |
kΩ |
6 |
- |
- |
@VOUT to GND |
| Load capacitance |
C2 |
nF |
- |
- |
10 |
|
|
Performance Data |
||||||
| Gain error |
ƐG |
% |
-1.5 |
- |
1.5 |
|
|
Temperature drift of gain error |
TCG |
%/℃ |
- |
0.02 |
- |
@TA -40℃~+150℃ |
| Zero point error |
VOE |
mV |
15 |
- |
15 |
@VC=5V & IP=0A |
| Temperature drift of zero error |
TCVOE |
mV/K |
-0.1 |
- |
0.1 |
@TA -40℃~+150℃ |
| Nonlinear error | ƐL |
% of IPN |
-1 |
- |
1 |
Exclude zero VOE |
| Response time |
tr |
µs |
- |
2 |
3 |
|
| Bandwidth (-3dB) |
BW |
KHz |
- |
30 |
- |
|
| Phase shift |
∆∅ |
degree |
- |
- |
- |
|
| Output noise |
Vno pp |
mV |
- |
- |
30 |
|
|
General Data |
||||||
| Ambient operating temperature |
TA |
℃ |
-40~+125 |
|||
| Ambient storage temperature |
TS |
℃ |
-55~+150 |
|||
| Mass |
m |
g |
60 |
|||
Note
（1）The output voltage Uout , the offset voltage UQOV , and the sensitivity Gth are completely proportional to the power supply Vc.
（2）The frequency of the current to be measured needs to be limited within the frequency band of the sensor, otherwise the core and chip will be overheated.
（3）Incorrect wiring can damage the sensor.
Insulation data
|
Parameter |
Symbol |
Unit |
Value |
Comment |
| AC isolation withstand voltage test RMS @ 50Hz, 1min |
UD |
KV |
4 |
|
| Impulse withstand voltage 1.2/50uS |
UW |
KV |
5 |
|
| Shell material |
- |
- |
UL94-V0 |
PBT+30%GF |
| Relative tracking index |
CTI |
- |
PLC3 |
|
| Creepage distance |
dCP |
mm |
-2.61 |
|
| Electrical clearance |
dCI |
mm |
-2.61 |
Maximum limit
|
Parameter |
Symbol |
Unit |
Value |
| Supply voltage |
VC |
V |
6.5 |
| Output current (output shorted to ground) |
Iout |
mA |
- |
| Electrostatic discharge - contact discharge |
VESD |
V |
4000 |

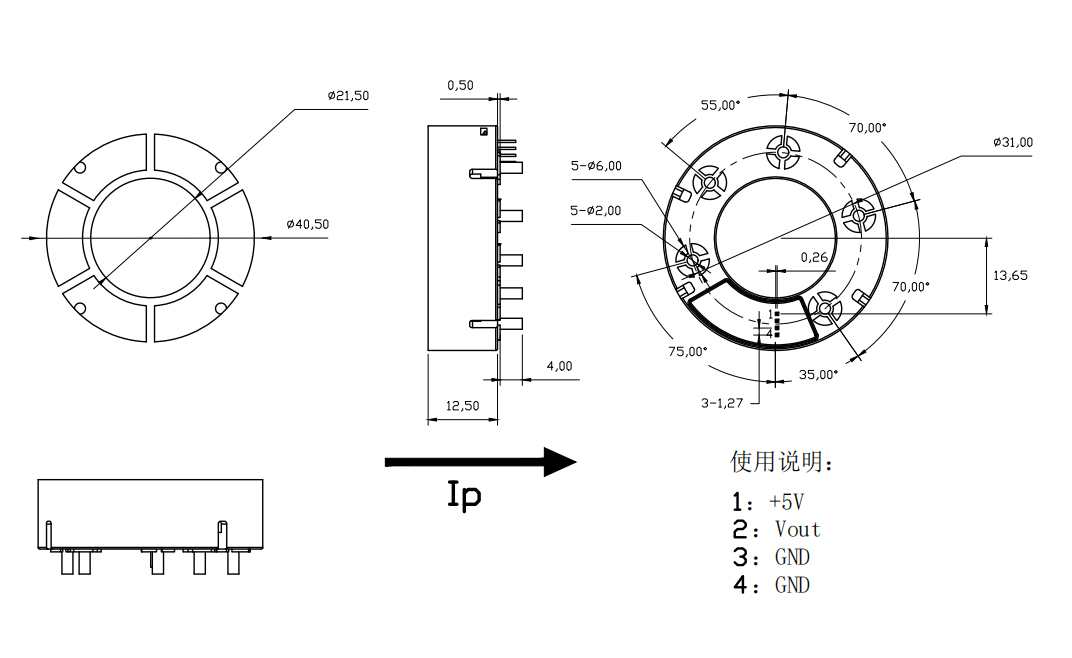

Mechanical Dimensions
