Open-Loop Sensor (EV)
01

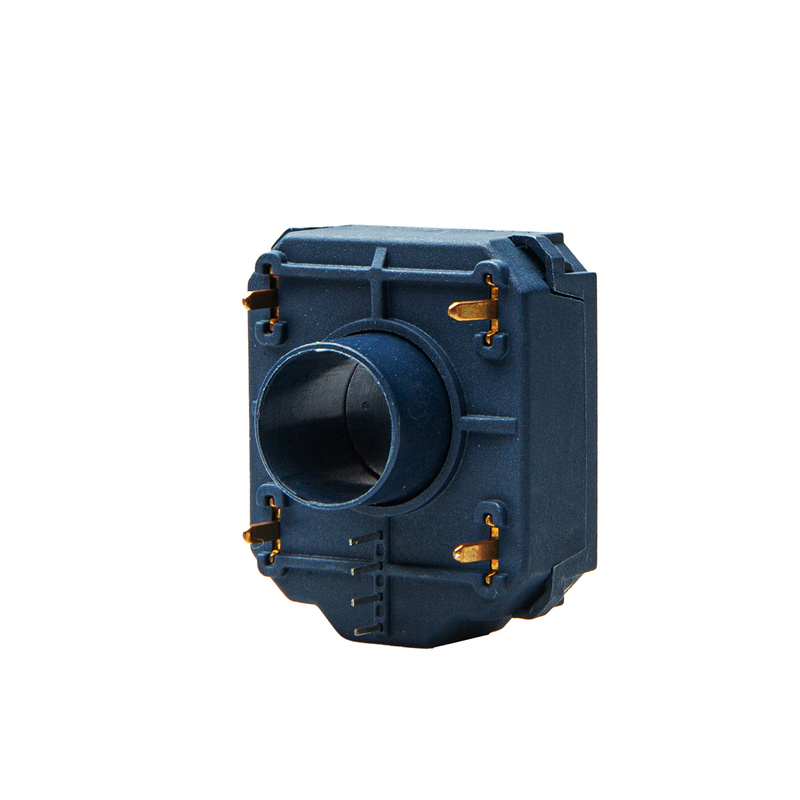

HS54-A-P Series Current Sensor
peculiarity
◆ Open loop Hall ASIC principle；
◆ Primary side and secondary side isolation;
◆ Low power consumption;
◆ Wide range;
◆ No insertion loss
◆ Raw material conforms to UL 94-V0
Application field
◆ Photovoltaic inverter
◆ Uninterruptible power supply (UPS)
◆ Static converter driven by DC motor
◆ Switching Power Supply (SMPS)
◆ Power supply for welding machine
Model list
|
Product model |
||
|
Model number |
Rated input current IPN (A) |
Measuring Range IPM (A) |
|
HS54-100A-P |
100 |
±100 |
|
HS54-200A-P |
200 |
±200 |
|
HS54-300A-P |
300 |
±300 |
|
HS54-400A-P |
400 |
±400 |
|
HS54-500A-P |
500 |
±500 |
|
HS54-600A-P |
600 |
±600 |
|
HS54-700A-P |
700 |
±700 |
|
HS54-800A-P |
800 |
±800 |
|
HS54-900A-P |
900 |
±900 |
