Open-Loop Sensor (Industrial)
01

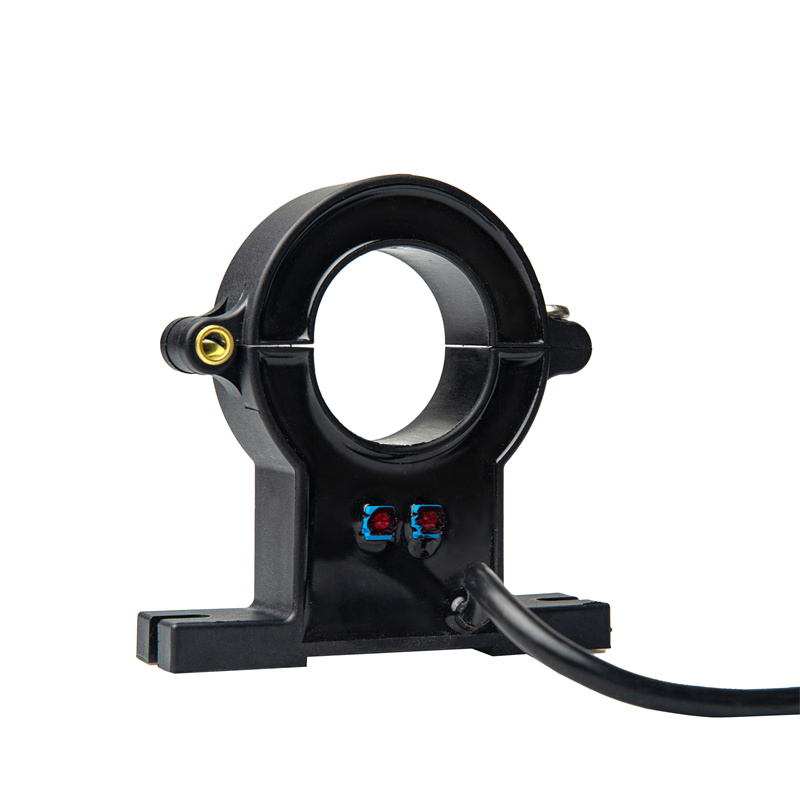

HS58-A-E4 Series Current Sensor(Transducer)
Features
◆ Open loop using the Hall effect
◆ The primary side and the secondary side are isolated
◆ Low power consumption
◆ Wide range
◆ No insertion loss
◆ Raw materials recognized according to UL 94-V0
Applications
◆ Inverter
◆ Uninterruptible Power Supplies (UPS)
◆ Static converters for DC motor drives
◆ Switched Mode Power Supplies (SMPS)
◆ Power supplies for welding applications
◆ Battery management
Model List
|
Product model |
||
|
Model |
Rated input current IPN (A) |
Measuring range IPM (A) |
|
HS58-100A-E4 |
100 |
± 300 |
|
HS58-200A-E4 |
200 |
± 600 |
|
HS58-300A-E4 |
300 |
± 900 |
|
HS58-400A-E4 |
400 |
± 900 |
|
HS58-500A-E4 |
500 |
± 900 |
|
HS58-600A-E4 |
600 |
± 900 |
|
HS59-200A-E4 |
200 |
± 600 |
|
HS59-400A-E4 |
400 |
± 1200 |
|
HS59-600A-E4 |
600 |
± 1200 |
|
HS59-800A-E4 |
800 |
± 1600 |
|
HS59-1000A-E4 |
1000 |
± 2000 |
|
HS59-2000A-E4 |
2000 |
± 4000 |
