Open-Loop Sensor (Industrial)
01

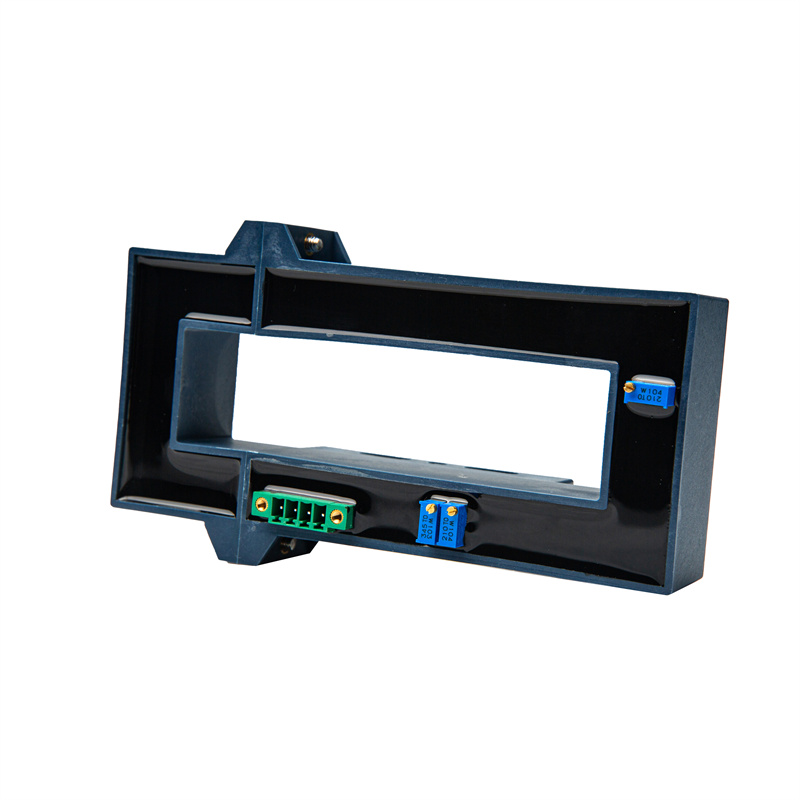

HS62-5000A-E4 Series Current Sensor (Transducer)
Key performance parameter
Supply voltage: ±15V;
Rated output: ±5V±40mV
Accuracy: ≤±1%;
Zero: ≤±20mV;
Band width (-3dB) : 40KHz;
Response time: < 3uS;
Operating temperature: -40 ~ 85℃;
Applications
◆ Inverter
◆ Uninterruptible Power Supplies (UPS)
◆ Static converters for DC motor drives
◆ Switched Mode Power Supplies (SMPS)
◆ Power supplies for welding applications
◆ Battery management
Model List
|
Product model |
||
|
Model |
Rated input current IPN (A) |
Measuring range IPM (A) |
|
HS62-5000A-E4 |
5000 |
± 6000 |
HS62-A-E4 Specification
|
Parameter |
Symbol |
Unit |
Value |
Test Conditions |
|
Electrical Data |
||||
| Supply voltage (±5%) (1) |
VC |
V |
±15 |
|
| Current consumption |
IC |
mA |
±25 |
|
| Output voltage ( analog output ) |
VOUT |
mV |
±5V±50 |
@ ± IPN, RL = 10 kΩ, TA = 25°C |
| Output clamp voltage |
Vmax |
V |
8.5V |
@ ± IPM, RL = 10 kΩ, TA = 25°C |
| Overcurrent capability (1ms ) |
IPC |
At |
5* IPN |
|
| Insulation resistance |
RIS |
MΩ |
>1000 |
@ 500 VDC |
| Internal impedance |
ROUT |
Ω |
100 |
approximation |
| Load Resistor (2) |
RL |
KΩ |
>10 |
|
|
Performance Data |
||||
| Linearity (3) (0…± IPN ) |
εL |
%of IPN |
<±0.5 |
|
| Precision |
X |
% |
<±1 |
@ IPN , TA = 25°C |
| ( remove zero offset voltage) | ||||
| Zero offset voltage |
VOE |
mV |
<±20 |
@ TA = 25°C |
| Magnetic offset voltage |
VOM |
mV |
<±10 |
@ IP=0; |
| 1 times the rated current impact | ||||
| Zero offset temperature drift |
TCVOE |
mV/K |
<±0.5 |
@ HS62-A- E4 |
| Output offset temperature drift |
TCVOUT |
ppm/K |
<500 |
@% of reading |
| Response time |
tr |
µS |
<3 |
@ 90% of IPN step response |
| Current follows di /dt |
di/dt |
A/µS |
>500 |
|
| Bandwidth (4) |
BW |
kHz |
DC~40 |
@-3dB |
|
General Data |
||||
| Ambient operating temperature |
TA |
℃ |
-40….+85 |
|
| Ambient storage temperature |
TS |
℃ |
-40….+105 |
|
| Mass |
m |
g |
- |
approximation |
