Power Transformer
01

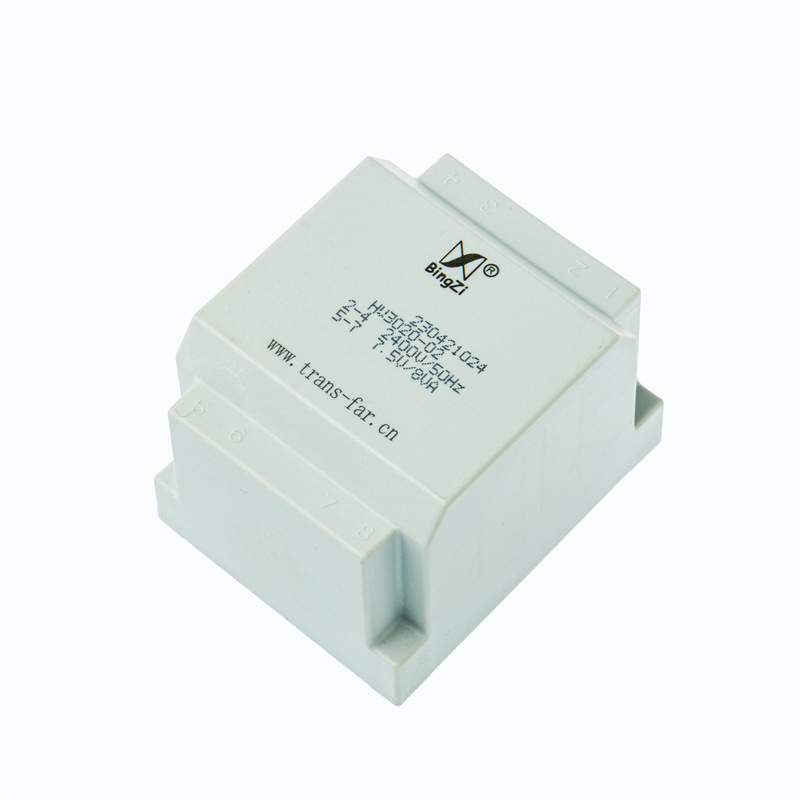

HV Series High Voltage Input Power Transformer
Features
① The fully enclosed printed circuit board is directly welded and installed, easy to use and beautiful in appearance;
② Compact structure, strong, anti-vibration, moisture-proof, flame-retardant, high electric strength;
③ High input voltage, small size and high power density.
Ambient Conditions
① Ambient temperature: -25℃～+70℃
② Relative humidity: ≤ 90% at 40°C
③ Atmospheric pressure: 860～1060mbar (650～800mmHg approximately)
Insulation Rating
Class B (130℃)
Safety Features
① Insulation resistance:> 1000MΩ in normal condition;
② Insulation withstand voltages: better than GB/T12590 standard requirements;
③ Fire retardancy: In conformity with UL94-V0;
④ Insulation impact strength: Continuously 10 times impact of 6kV/50μs.
Safety Approval
CE
Rated Power
6VA
