Special Transformer
01
Isolation Transformers For Medical IT Systems

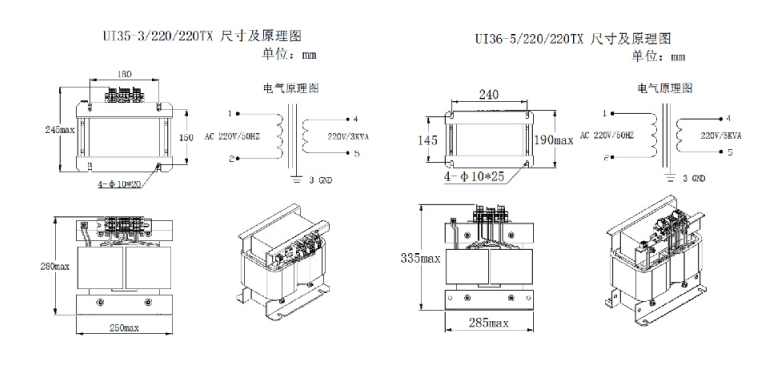

Dimensions
Parameters
| Iterm | Parameters | |
| UI35-3/220/220TX | UI36-5/220/220TX | |
| Primary side voltage | AC220V/50Hz/60Hz | AC220V/50Hz/60Hz |
| Secondary side voltage | 220V(no-load) | 220V(no-load) |
| Capacity | 3000VA | 3000VA |
| Phase number | Single | Single |
| No load current | ﹤2A | ﹤3A |
| No load consumption | ﹤90W | ﹤120W |
| Voltage regulation | ﹤3% | ﹤3% |
| Full-load temperature rise | ﹤75K | ﹤75K |
| Insulation resistance | ≥100MΩ(DC500V) | ≥100MΩ(DC500V) |
| Electric Strength | Primary side to the ground: AC4500V/50Hz/60s, Io≤5mA Secondary side to the ground: AC5000V/50Hz/60s, Io≤5mA Primary side to secondary side: AC4500V/50Hz/60s, Io≤5mA | Primary side to the ground: AC4500V/50Hz/60s, Io≤5mA Secondary side to the ground: AC5000V/50Hz/60s, Io≤5mA Primary side to secondary side: AC4500V/50Hz/60s, Io≤5mA |
| Insulation endurance class | H Class | H Class |
| Type of cooling | Dry self-cooling | Dry self-cooling |
| Noise | ﹤65dB(one meter away) | ﹤65dB(one meter away) |
| level of production | IP00 | IP00 |
Product use environment
4.1 Working environment temperature: -5-45℃
4.2 Storage Temperature: -5-45℃
4.3 Working relative humidity: ≤90%（@40℃）
4.4 Working altitude: 2000m below
Product standards
5.1 EN60601 Medical electrical equipment
5.2 IEC60076-11: 2016 dry transformer
5.3 GB/T1094.11-2007 Dry type transformer

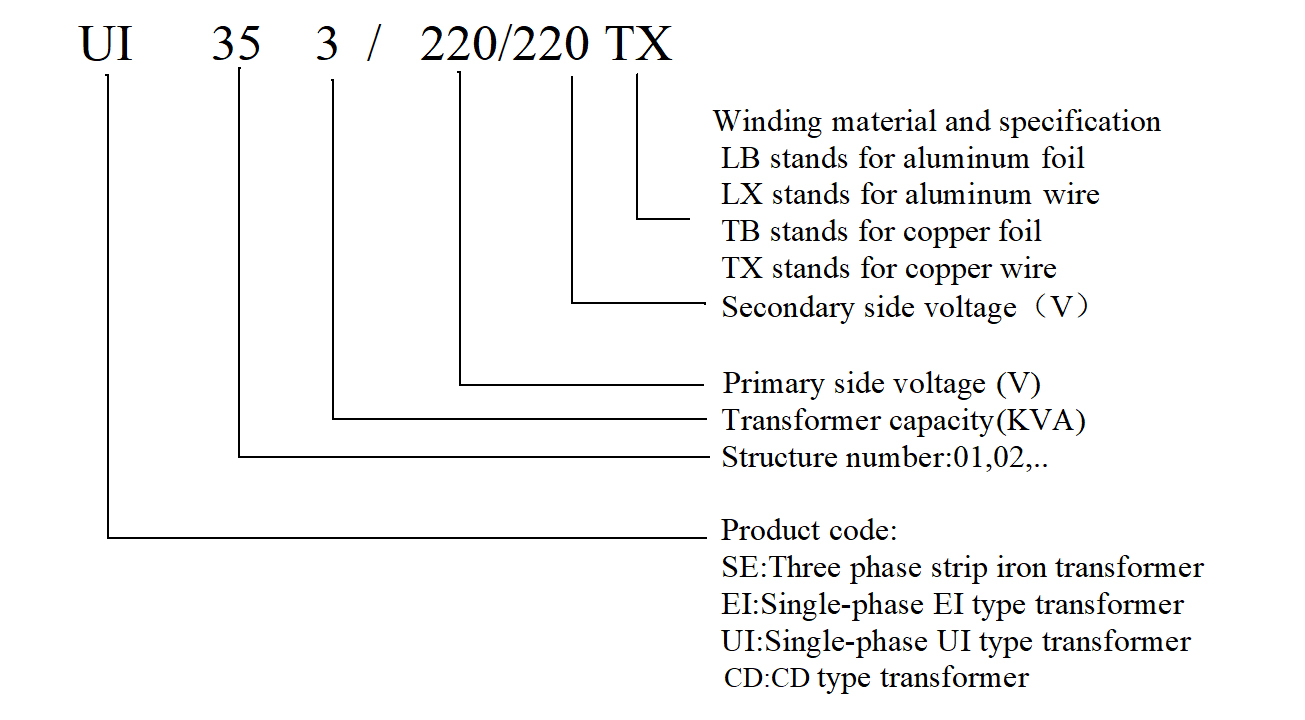

Naming rule
Precautions for installation and use
7.1 Check whether the air cooling facilities are good before reactor operation;
7.2 Before operation of the reactor, check the connection bolts, whether the mounting bolts are tight, and whether there are foreign objects on the reactor;
7.3 During the reactor maintenance, it is forbidden to change the core air gap and winding position;
7.4 Reactor core and metal structural parts should be reliably connected to the ground.
