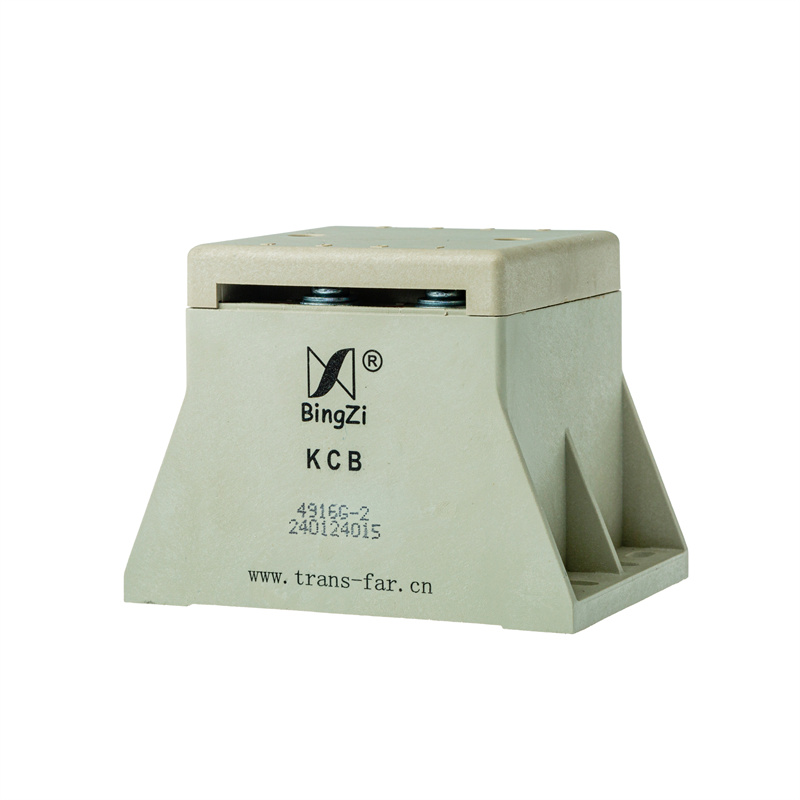

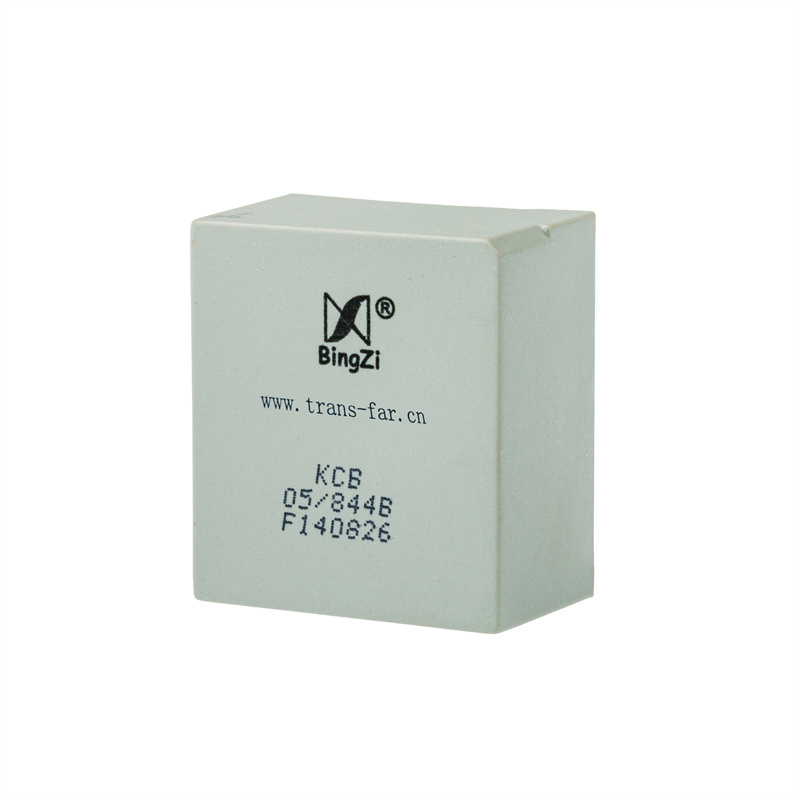

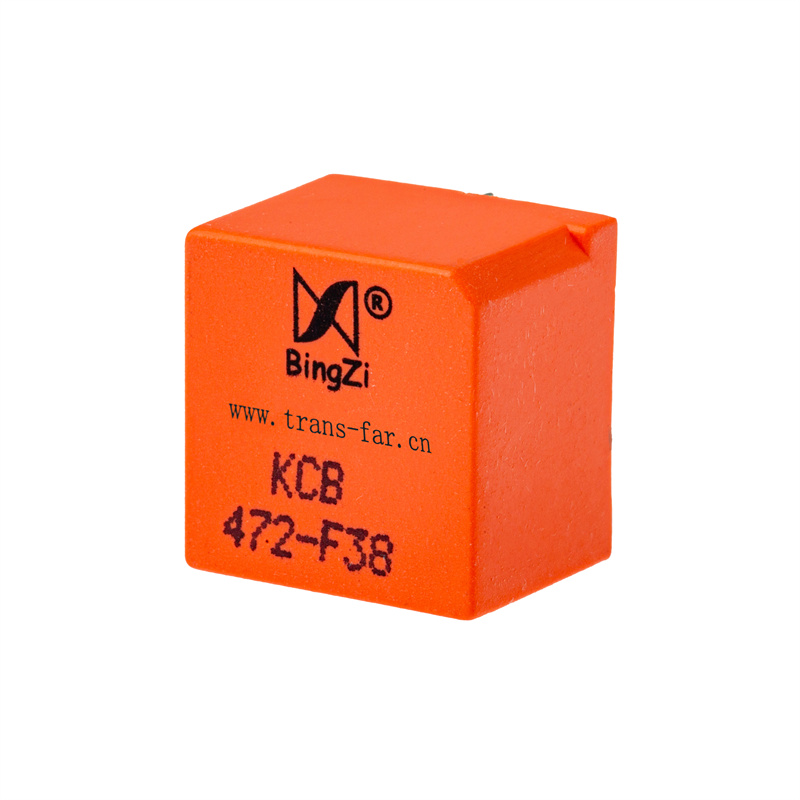

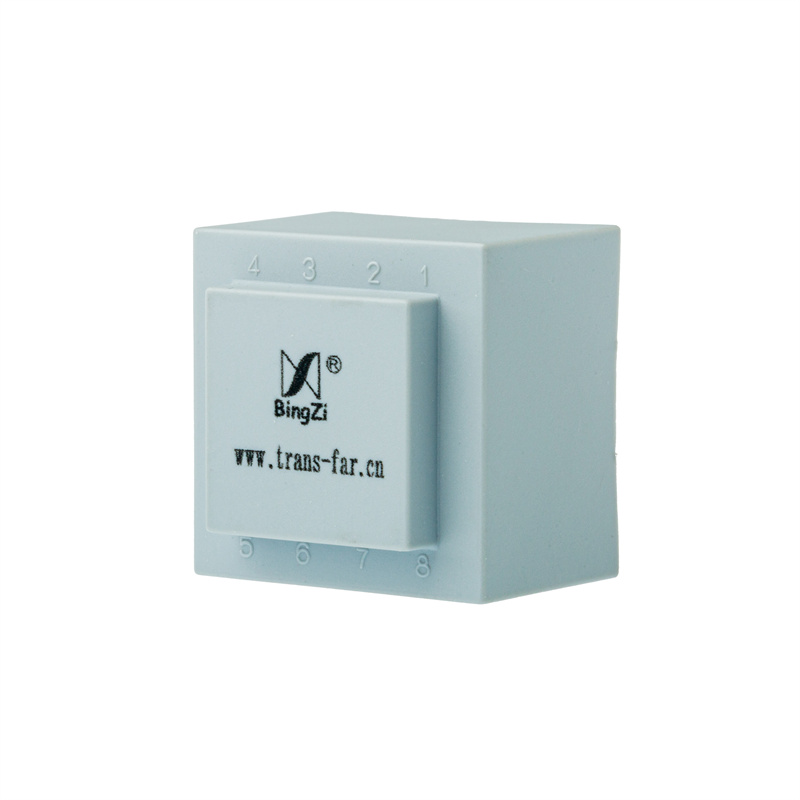

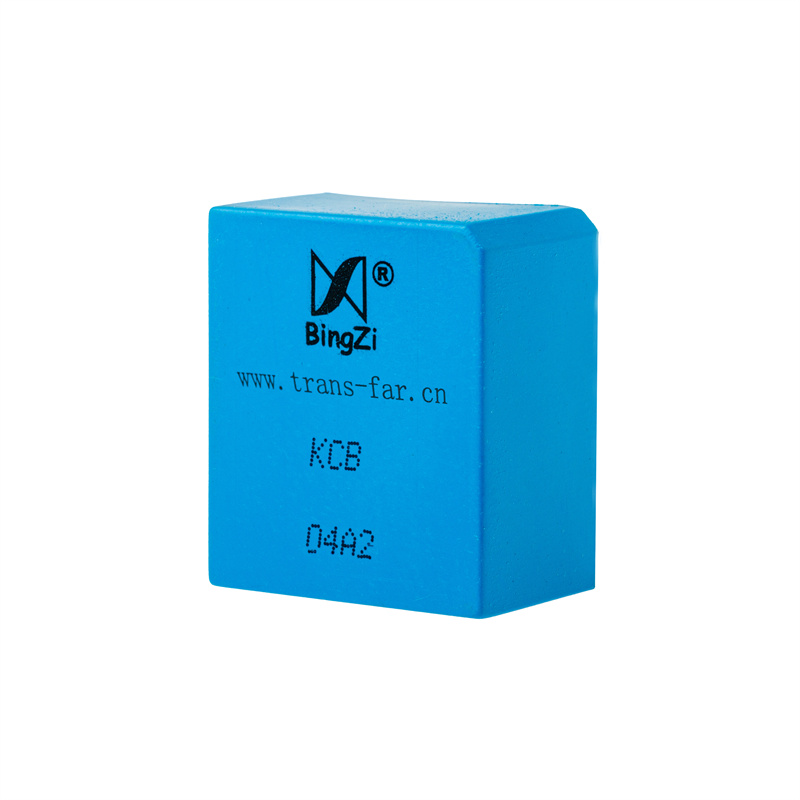

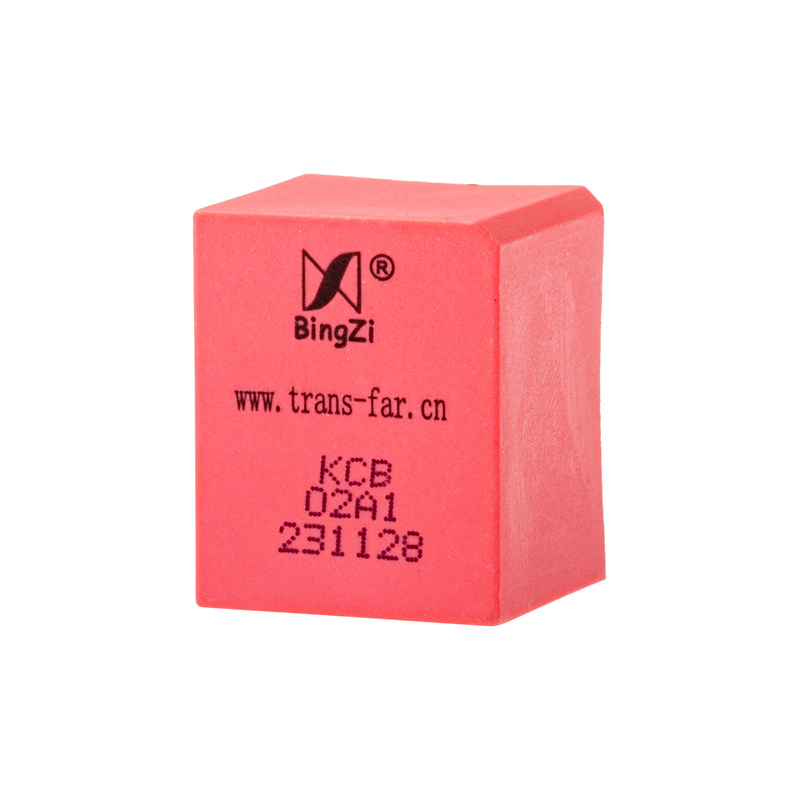

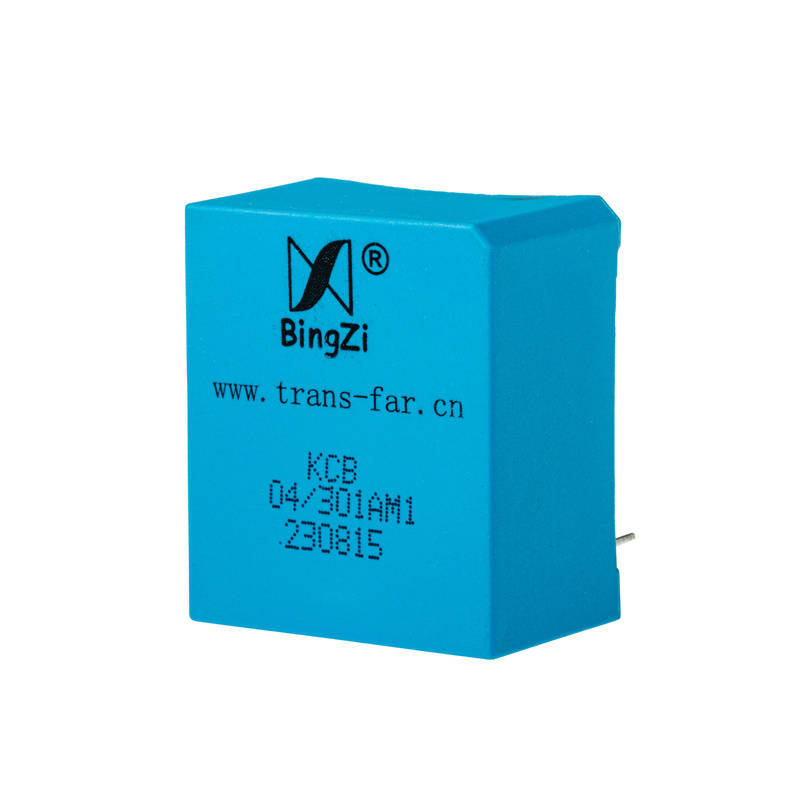

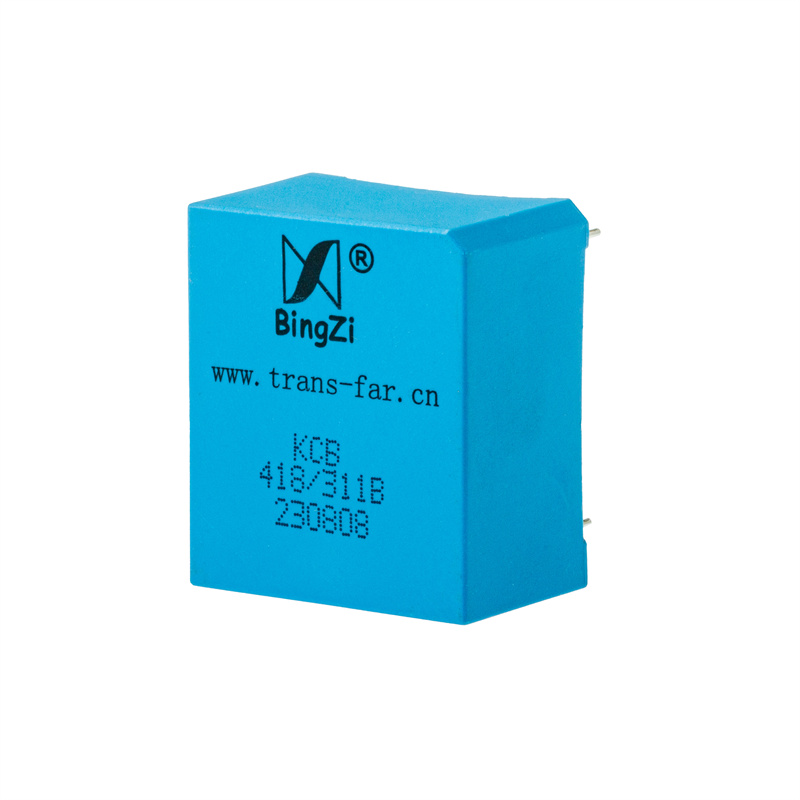

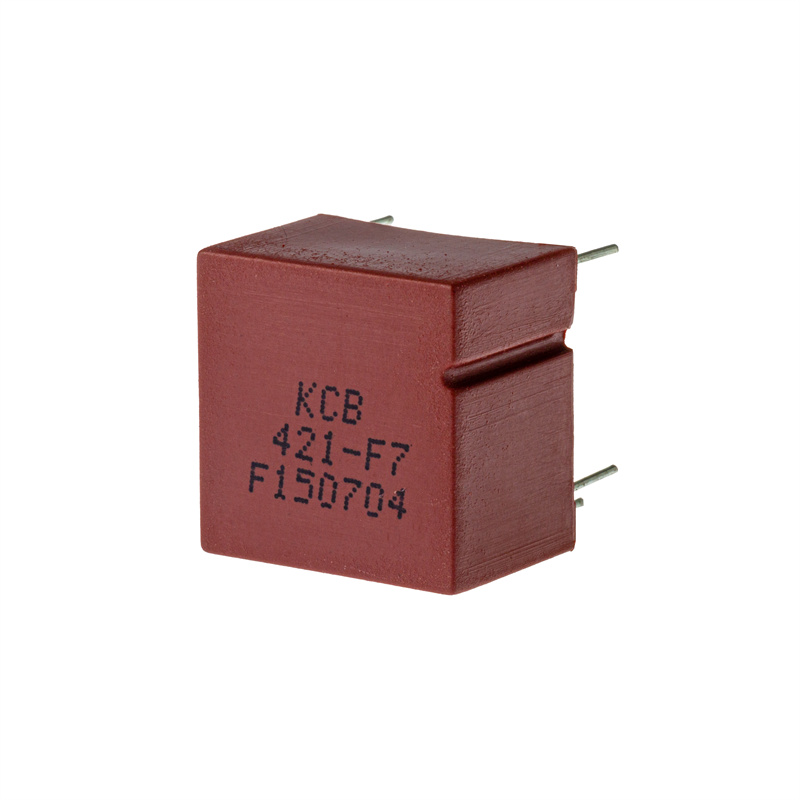

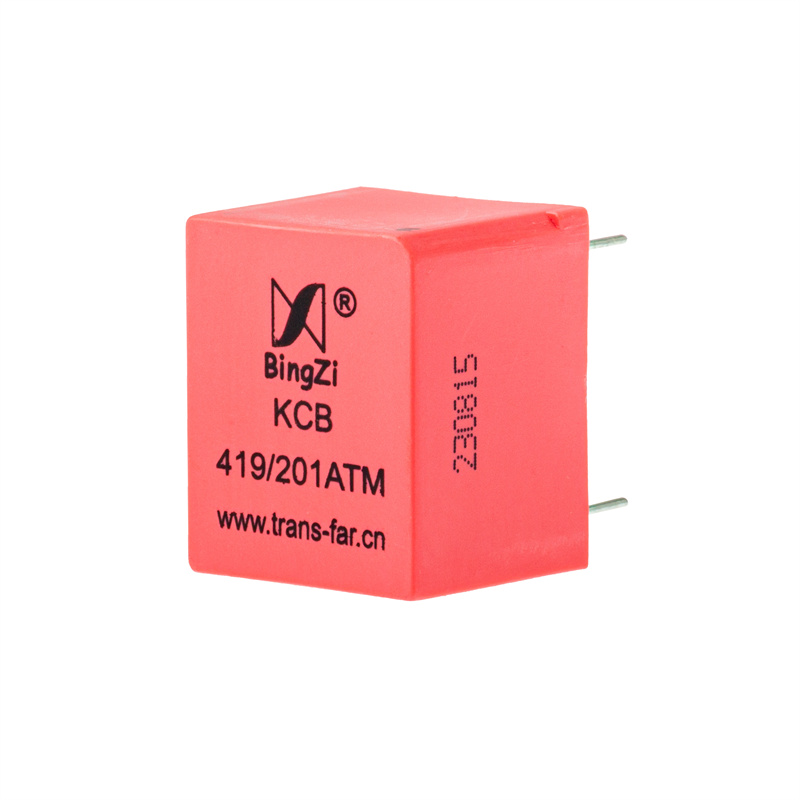

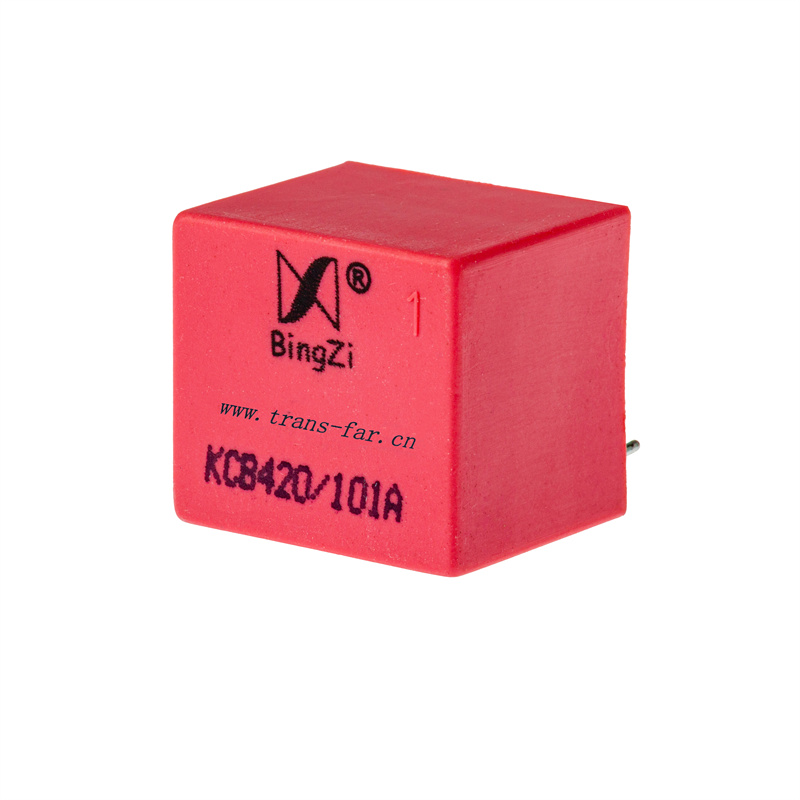

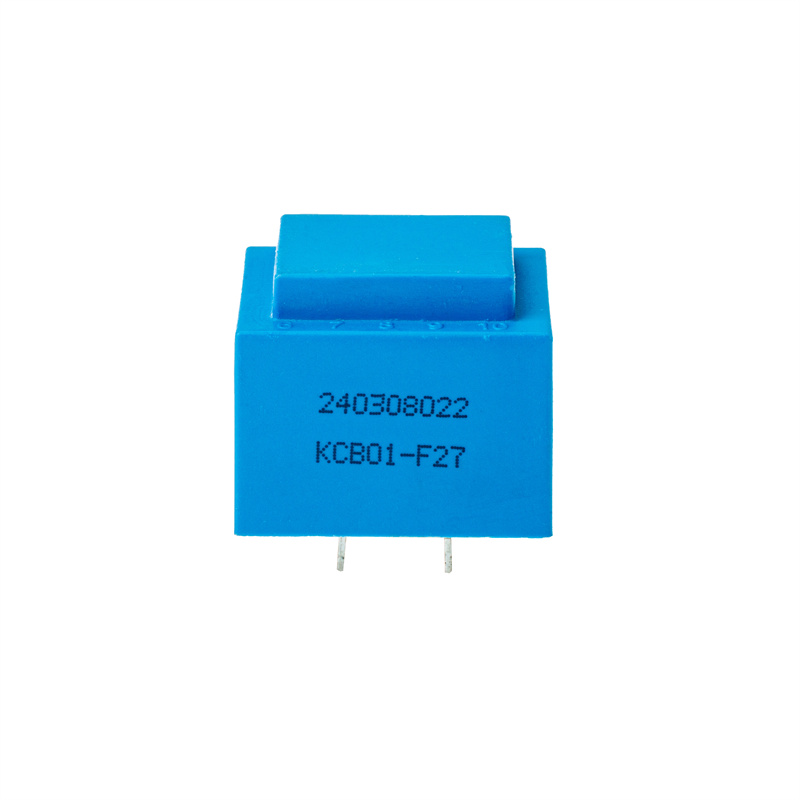

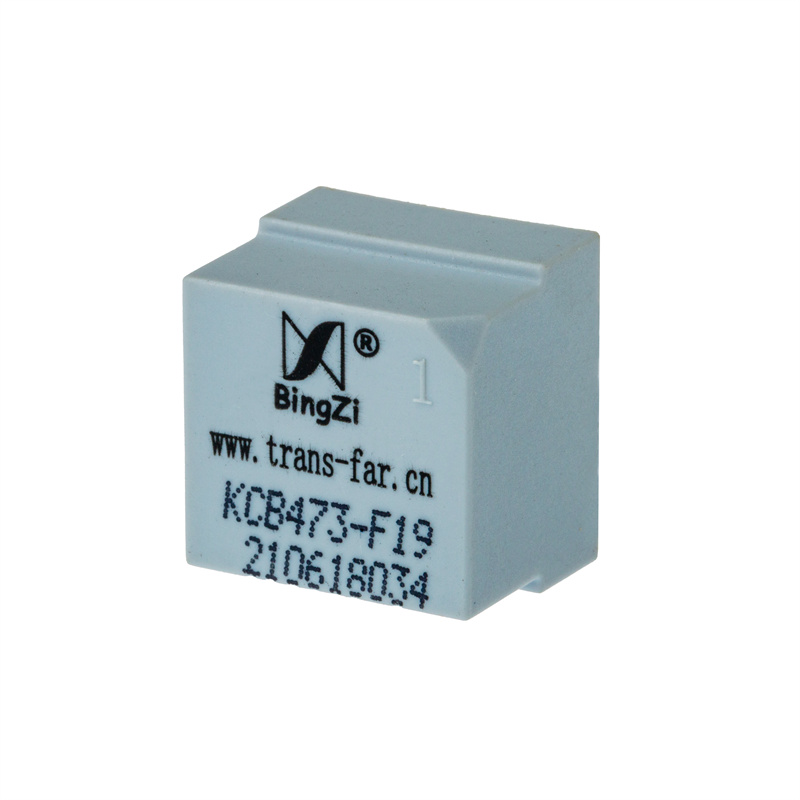

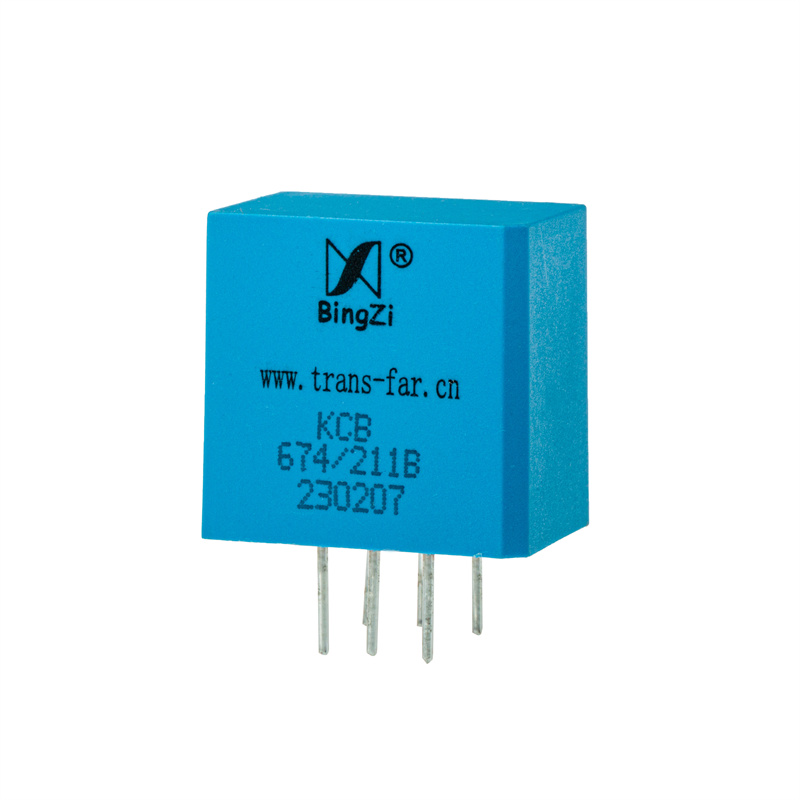

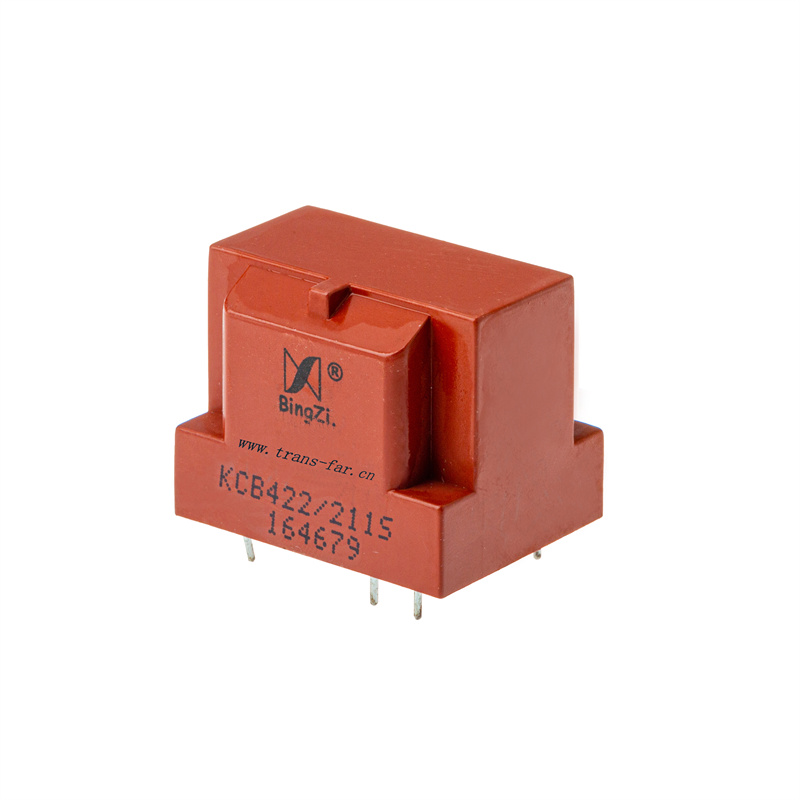

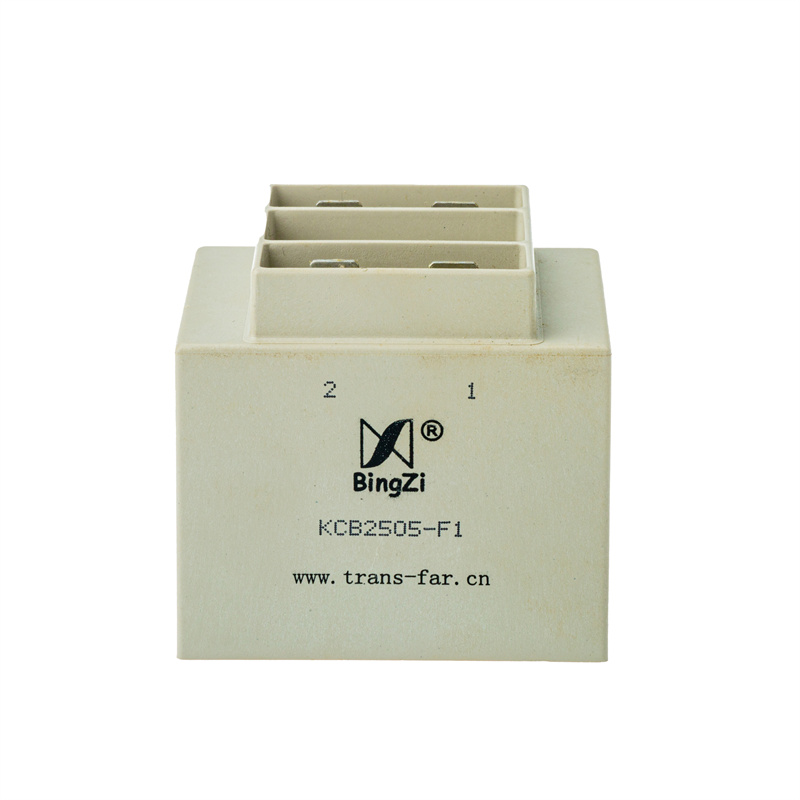

KCB Series Thyristor Triggering Transformers

The "Bingzi" potion-sealed pulse transformer is often employed alongside thyristors and is typically connected between the control trigger unit and the thyristor electrode within thyristor equipment. Its primary functions are to transmit the initiating pulse and to provide reliable isolation between high and low-power circuits.

To determine the appropriate dielectric strength (VP) for your system, you'll need to consider the system's operating voltage (V0, RMS). You can select the dielectric strength according to the table provided below.
