Chassis Power Supply
01

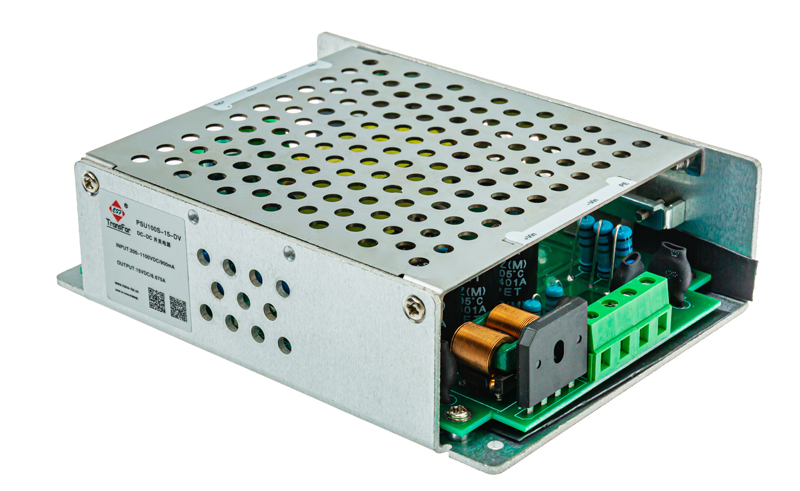

PSU100S-15-DV Case Power Supply
product description
1. Output voltage full load range ±1%;
2. 4000VAC isolation voltage;
3. -40~+85℃ working temperature;
4. Insulation resistance ≥100MΩ;
5. Typical efficiency above 86%;
6. Short circuit, overcurrent, overvoltage protection;
Typical performance
● Single output mode
● Total output power 100W
● Output voltage 15V
● The input voltage ranges from 200 to 1100VDC
● High isolation voltage 3000VAC
● Housing power supply
Input characteristic
| Input voltage range | 200~1100VDC |
Output characteristic
| Output voltage accuracy | Full load range，±2% |
| Load effect | 0%~100% load, ≤±2% |
| Source effect | Rated load, ≤±1% |
| Ripple noise | 20MHz bandwidth (peak-to-peak), < 300mVp-p |
| Conversion efficiency | 600VDC, rated load, 85% |
| Temperature coefficient | ≤±0.02%/℃ |
General characteristic
| Isolation voltage | Input-output: 3000VAC |
| Insulation resistance | ≥100MΩ |
| Mean time between failures | ≥3×10⁵h |
| Protection function | Short-circuit protection (self-recovery), overcurrent protection (self-recovery), Input undervoltage protection, anti-reverse protection, overvoltage protection |
| Operating temperature | −40~+70℃ |
| Storage temperature | −40~+85℃ |
| Storage humidity | ≤95%RH |
| Cooling mode | Natural cooling |

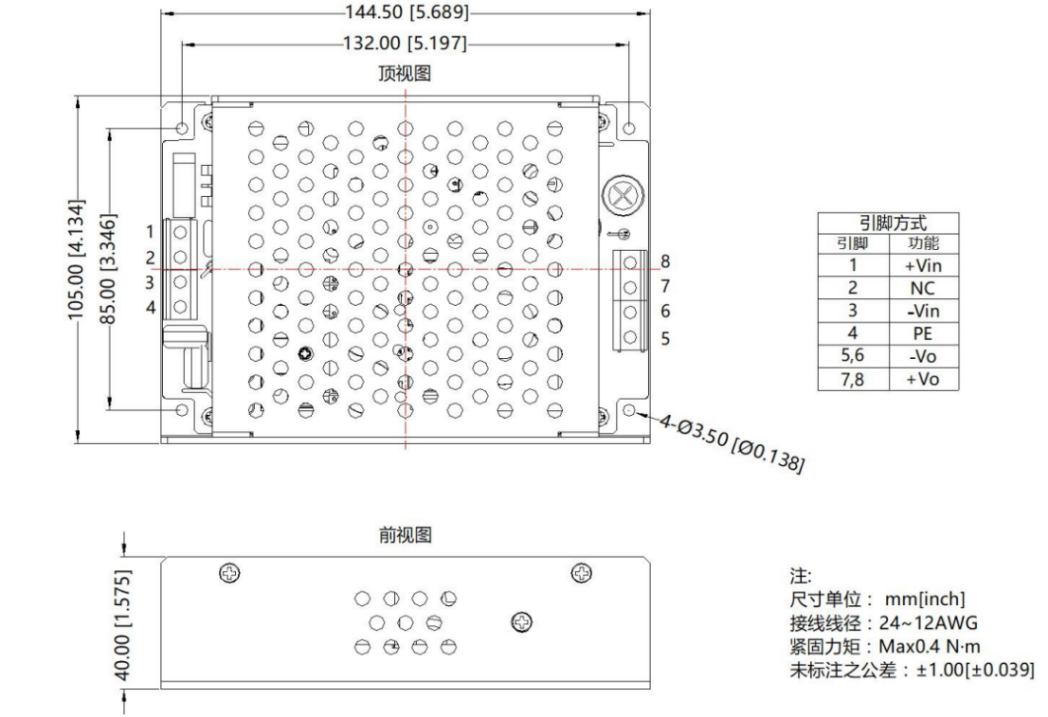

Product diagram
Pin definition
|
definition |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Instructions |
+Vin |
NC |
-Vin |
PE |
-V0 |
-V0 |
+V0 |
+V0 |
