PSU150S-AW Series Case Power Supply

Chassis Power Supply

PSU150S-AW Series Case Power Supply

Its sleek and compact design makes it an ideal choice for both home and office use, seamlessly blending into any environment while providing powerful performance. The station is equipped with multiple ports, allowing simultaneous charging of various devices, from smartphones and tablets to laptops and wearables. Advanced safety features, including overcharge protection and temperature control, ensure the longevity of your devices and peace of mind for users. Additionally, its universal compatibility means it works with all major brands and supports fast charging protocols for quicker power-ups.

    Typical performance

    ● Single output mode
    ● Total output power 150W
    ● Output voltage 12V/15V/24V/36V/48V
    ● Input voltage range 85~264VAC
    ● High isolation voltage 3000VAC
    ● Housing power supply

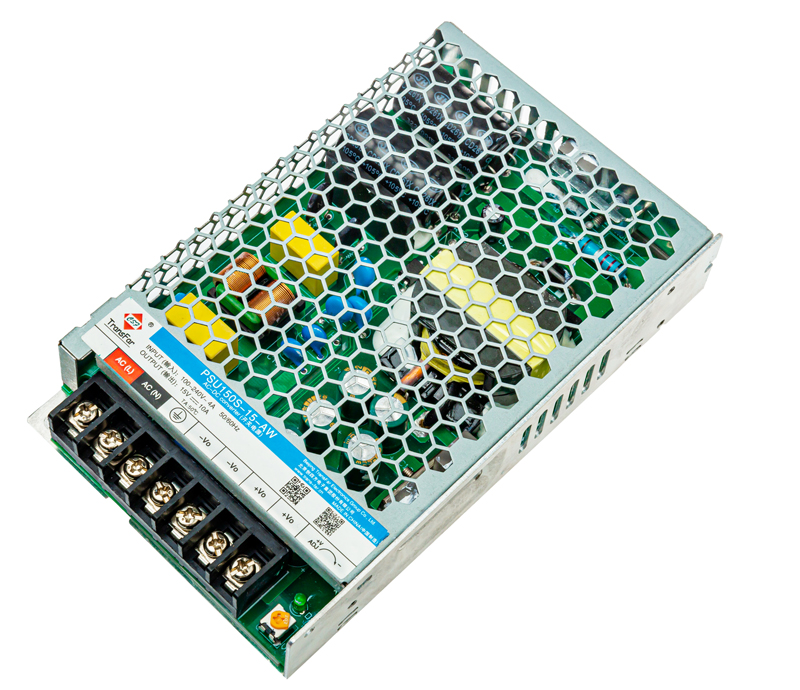

    product-description1

    Input characteristic

    Input voltage range 85~264VAC
    120~370VDC

    Output characteristic

    Output voltage accuracy Full load range,±1%
    Load effect 0%~100% load, ±0.5%
    Source effect Rated load, ±0.5%
    Ripple noise 20MHz bandwidth (peak-to-peak), < 200mVp-p
    Conversion efficiency Reference selection table
    Temperature coefficient ≤±0.03%/℃ (0-50℃)

    General characteristic

    Isolation voltage Input-output: 3000VAC
    Insulation resistance ≥100MΩ
    Mean time between failures ≥3×10⁵h
    Protection function Short circuit protection, over current protection, over voltage protection, over temperature protection
    Operating temperature −30~+70℃
    Storage temperature −40~+85℃
    Storage humidity 10~95%RH
    Cooling mode Natural cooling

    Selection list

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current (V)/(A)

    Maximum capacitive load(µF)

    Typical efficiency (%)

    PSU150S-12-AW

    85V-264V/120V-370V

    12/12.50

    10000

    86

    PSU150S-15-AW

    85V-264V/120V-370V

    15/10.00

    6000

    87

    PSU150S-24-AW

    85V-264V/120V-370V

    24/6.50

    2400

    88

    PSU150S-36-AW

    85V-264V/120V-370V

    36/4.30

    1200

    88

    PSU150S-48-AW

    85V-264V/120V-370V

    48/3.30

    600

    89

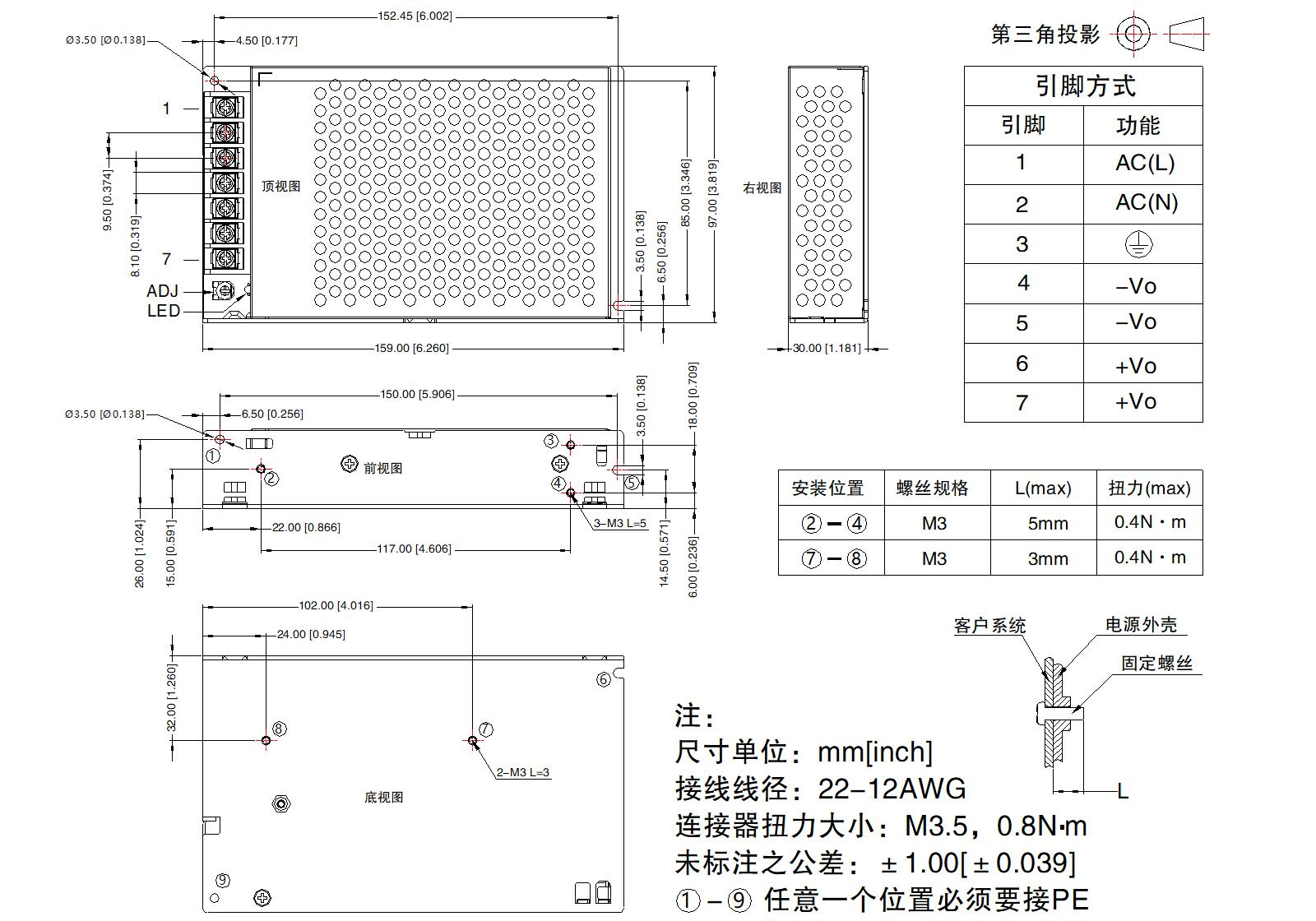

    Product diagram

    product-description2

    Pin definition

    definition

    1

    2

    3

    4

    5

    6

    7

    Instructions

    AC/L

    AC/N

    FG

    -V

    -V

    +V

    +V
