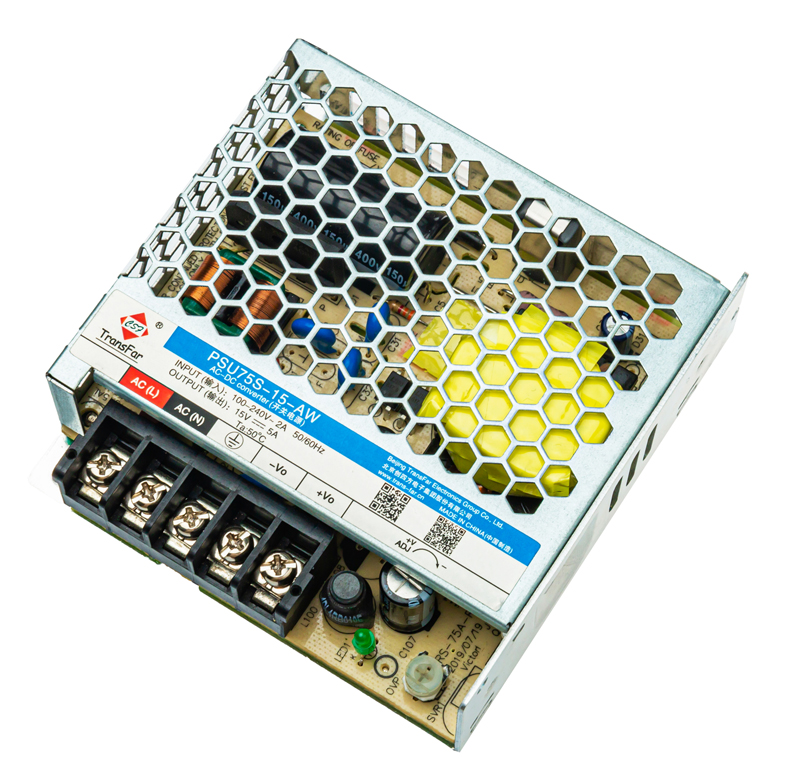

PSU75S-AW Series Case Power Supply

Chassis Power Supply

PSU75S-AW Series Case Power Supply

This versatile power supply unit not only supports multiple voltage outputs to accommodate various requirements but also boasts high isolation and voltage resistance, ensuring safe and reliable operation. Its robust construction and design enable seamless functionality across a wide range of environmental conditions, including extreme temperatures, humidity, and dust exposure. Additionally, its durable components and protective features significantly reduce the risk of failure, making it a dependable choice for demanding applications in industrial, commercial, and outdoor settings. With enhanced performance and safety, this power supply unit is poised to meet the rigorous demands of modern electrical systems.

    Typical performance

    ● Single output mode
    ● Total output power 75W
    ● Output voltage 12V/15V/24V/36V/48V
    ● Input voltage range 85~305VAC
    ● High isolation voltage 4000VAC
    ● Housing power supply
    product-description1

    Input characteristic

    Input voltage range 85~305VAC
    120~430VDC

    Output characteristic

    Output voltage accuracy Full load range, ±1%
    Load effect 0%~100% load, ±0.5%
    Source effect Rated load, ±0.5%
    Ripple noise 20MHz bandwidth (peak-to-peak), < 200mVp-p
    Conversion efficiency Reference selection table
    Temperature coefficient ≤±0.03%/℃ (0-50℃)

    General characteristic

    Isolation voltage Input-output: 4000VAC
    Insulation resistance ≥100MΩ
    Mean time between failures ≥3×10⁵h
    Protection function Short circuit protection, over current protection, over voltage protection
    Operating temperature −30~+70℃
    Storage temperature −40~+85℃
    Storage humidity 10~95%RH
    Cooling mode Natural cooling

    Selection list

    Model number

    Input voltage range Vac/Vdc

    Output voltage/current (V)/(A)

    Maximum capacitive load(µF)

    Typical efficiency (%)

    PSU75S-12-AW

    85V-305V/120V-430V

    12/6.00

    6000

    89

    PSU75S-15-AW

    85V-305V/120V-430V

    15/5.00

    5000

    89

    PSU75S-24-AW

    85V-305V/120V-430V

    24/3.20

    1500

    91

    PSU75S-36-AW

    85V-305V/120V-430V

    36/2.10

    1000

    91

    PSU75S-48-AW

    85V-305V/120V-430V

    48/1.60

    680

    92.5

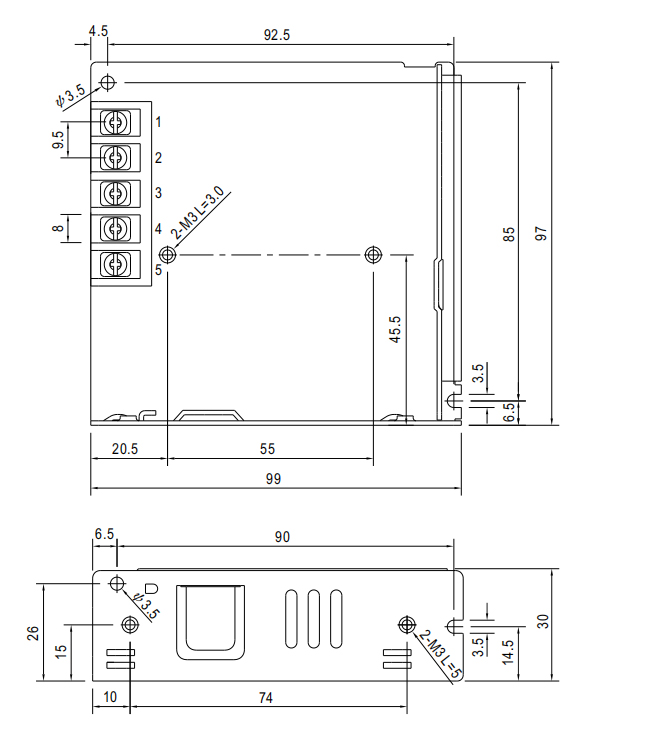

    Product diagram

    product-description2

    Pin definition

    definition

    1

    2

    3

    4

    5

    Instructions

    AC/L

    AC/N

    FG

    -V

    +V
