SE17-3690380LX Three-Phase Isolation Transformer

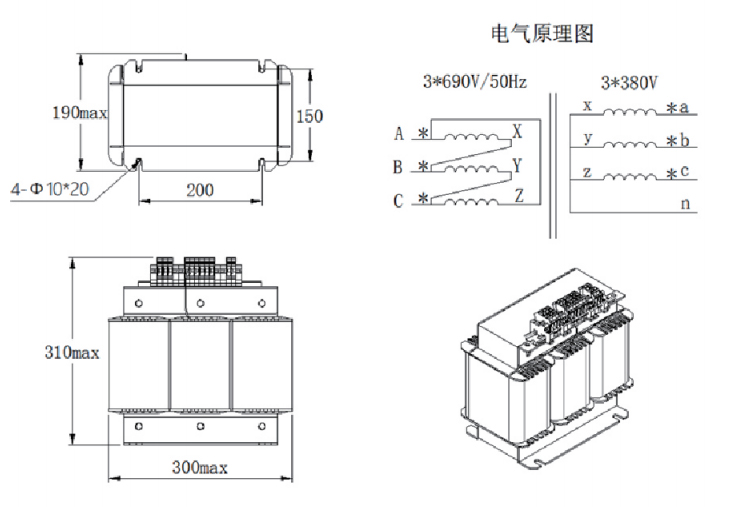

Dimensions
Parameters
| Iterm | Parameters |
| Primary side voltage | 3*690V±5%/50Hz |
| Secondary side voltage | 3*380V |
| Capacity | 3KVA |
| Mode of connection | DYN11 |
| Unbalance of three-phase inductance | ≤3% |
| Voltage regulation | ≤2% |
| Overload capacity | 1.1 times rated time, 1.3 times rated 1min |
| insulation resistance | ﹥100MΩ(DC1000V) |
| Electric Strength | Primary side to the ground: DC5000V/50Hz/60s/1min, Io≤5mA Primary side to secondary side: AC3500V/50Hz/60s, Io≤5mA |
| Insulation endurance class | H Class |
| Type of cooling | Dry self-cooling |
| temperature rise | The highest temperature rise ≤90K(ambient temperature 65℃) |
| Overtemperature protection | 1pcs160℃ normally closed temperature switch is placed in each phase and connected to the terminal station in series |
| Anti-corrosion grade | C4-M can be used in highly corrosive areas such as at sea |
Product use environment
4.1 Working environment temperature: -40-65℃
4.2 Storage Temperature：-40-65℃
4.3 Working relative humidity: 10-95%, no condensation cream
4.4 Working altitude: 2000m below
Product standards
5.1 IEC60076-11:2016 dry transformer
5.2 GB/T1094.11-2007 dry transformer

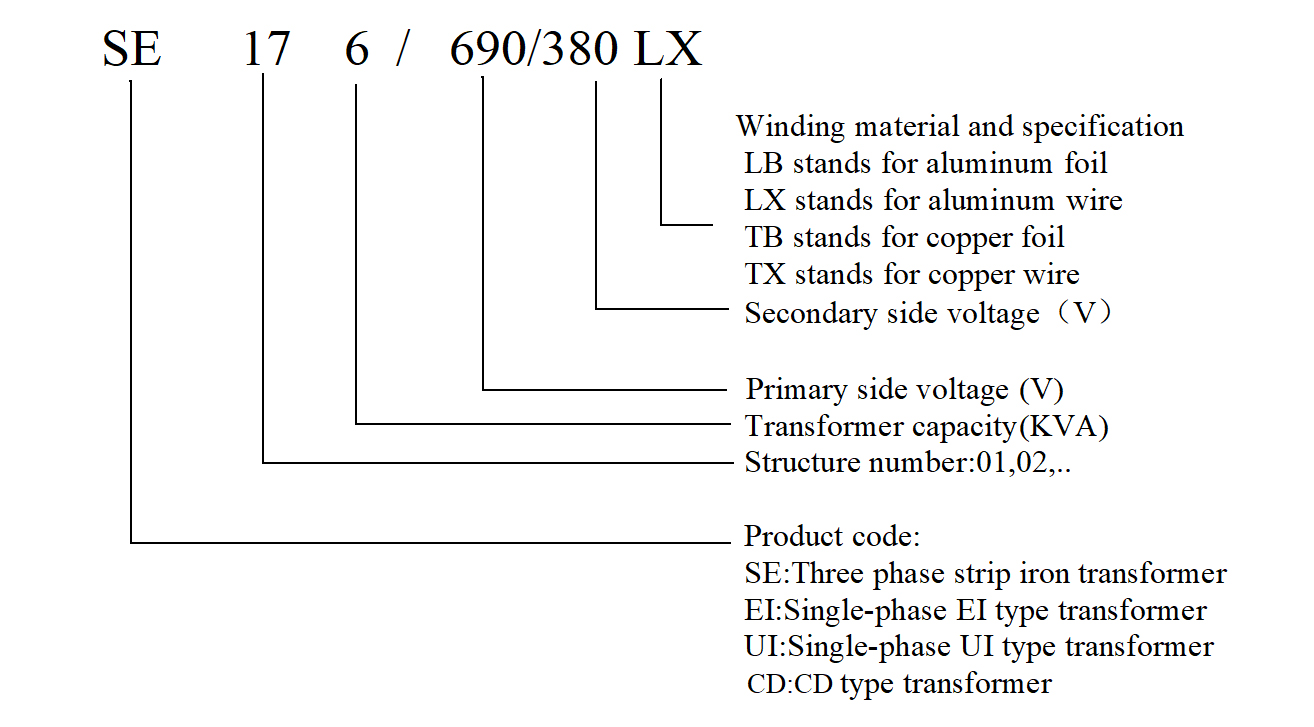

Naming rule
Precautions for installation and use
7.1 Check whether the air cooling facilities are good before reactor operation;
7.2 Before operation of the reactor, check the connection bolts, whether the mounting bolts are tight, and whether there are foreign objects on the reactor;
7.3 During the reactor maintenance, it is forbidden to change the core air gap and winding position;
7.4 Reactor core and metal structural parts should be reliably connected to the ground.
