Group Charging System
01

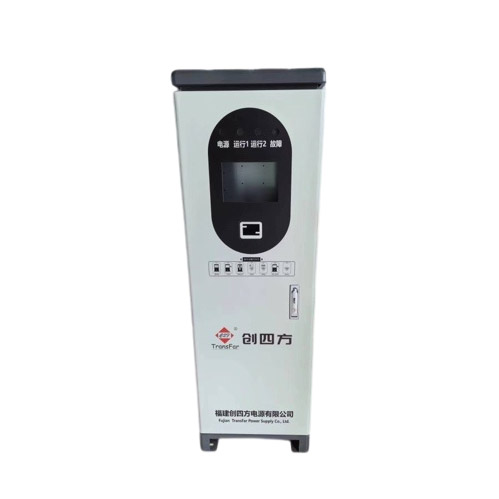

Smart DC group charging system
Specification
|
Power |
Model |
|
240-360w |
CSF-EV-D360KW-380VAC |
|
480w |
CSF-EV-D480KW-380VAC |
|
720w |
CSF-EV-D720KW-380VAC |
General specification
1.Input voltage: 380VAC three-phase five wire;
2.Output voltage regulator accuracy ≤±0.5%;
3.Power factor ≥90%, efficiency ≥95%;
4.Input and output over voltage protection, short circuit protection, over current protection, over temperature protection, lightning protection;
Feature
1) Different from the traditional split charger, the shared charging pile has the automatic power switching function, which can intelligently switch the power module according to the actual charging demand sent by the vehicle BMS, so as to achieve the optimal power charging strategy for multiple guns and the purpose of free power allocation for multiple guns.
2) Modular design, multiple modules work in parallel, single module failure does not affect the use of the whole machine.
3) Support multiple output, according to the number of parking Spaces, flexible choice of output routes, CAN generally meet the needs of the charging station
4) charging pile and charging terminal through CAN bus communication, charging terminal through CAN bus and vehicle real-time data exchange, to achieve the purpose of intelligent energy charging.
5) When the charging terminal uses a 7-inch LCD touch screen, the display color is bright, which can realize the visual display of the outdoor high-brightness environment, which is convenient for users.
