Power Transformer
01

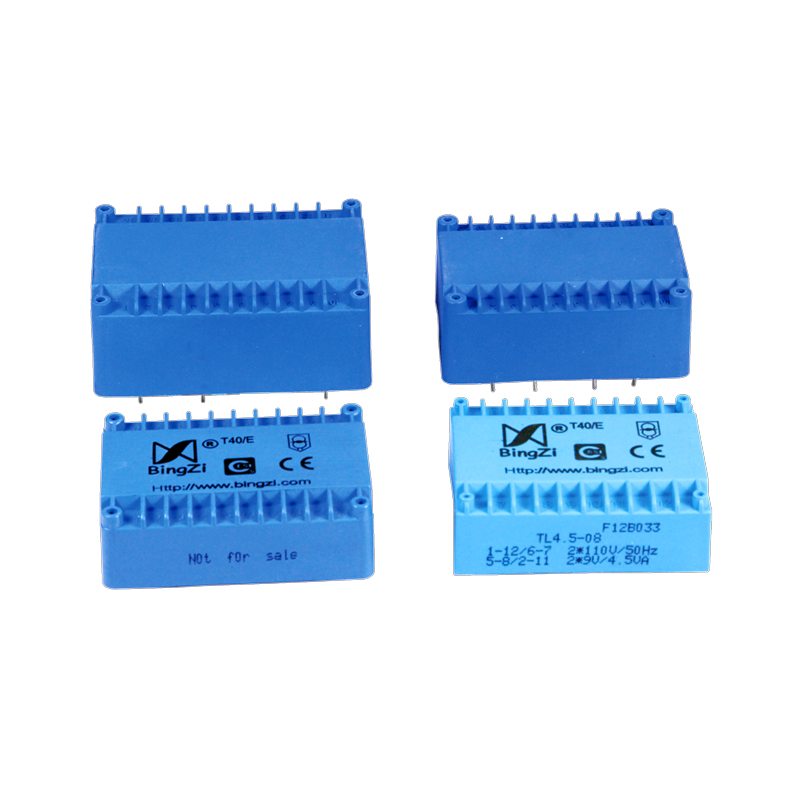

"Smurf" TL Series Flat Printed Circuit Board Welded Power Transformer
Features
① The fully-encapsulated printed circuit board can be directly welded and assembled, and has a perfect outline.
② It is compact in structure, solid, vibration-proof, moisture-proof, flame-resistant, and has high dielectric strength.
③ It is easy to use and reconfigure, and alternative input/output voltages can be obtained by changing the connections of the primary and/or secondary.
④ It is economical and affordable, with a competitive price.
Ambient Conditions
① Ambient temperature: -10℃～+40℃;
② Relative humidity: ≤90% at 40℃;
③ Atmospheric pressure: 860～1060mbar(650～800mmHg approximately).
Insulation Rating
Class B (130℃).
Safety Features
① Dielectric resistance: >1000MΩ in normal condition;
② Insulation withstand voltages: Better than GB/T15290 standard requirements.
③ Fire retardancy: In conformity with UL94-Vo;
④ Basis insulation impulse level: Continuously 10 times impact of 6KV (50HZ)/50μS;
Safety Certification
Rated Power
4.5VA
Rated Voltage
① Standard series:
Primary：2×110V±10% 50Hz/60Hz
Secondary：2×6V, 2×7.5V, 2×9V, 2×12V, 2×15V, 2×18V, 2×21V, 2×24V, 2×27V
② Non-standard series: It can be customized based on customer's requirements.
Universal Technical Parameters of TL Series Standard Product
|
SN |
Model |
Output Power |
Idle Current |
Idle Loss |
Voltage Regulation Ratio |
Temperature Rise |
Weight (g) |
| TL4.5 |
4.5VA |
≤26mA |
≤0.45W |
≤28% |
≤22℃ |
160 |
54.5×44×18 |
| TL6 |
6VA |
≤20mA |
≤0.5W |
≤28% |
≤27℃ |
170 |
58.5×43.5×18.2 |
| TL9 |
9VA |
≤15mA |
≤0.5W |
≤20% |
≤27℃ |
200 |
58.5×43.5×22.3 |
| TL12 |
12VA |
≤18mA |
≤0.6W |
≤20% |
≤33℃ |
330 |
66×49×25.3 |
