Tailored Solutions For Power Supply Product
Typical performance
● Dual output mode
● Total output power 10W
● Output voltage Vo1:5V; Vo2:24V
● Input voltage range 85~265VAC
● Isolation voltage 2500VAC
● Overall dimensions 85*41*18

Input characteristic
Input voltage range | 85~265VAC |
Output characteristic
Output voltage accuracy | Vo1 nominal output voltage ±2%; Vo2 Nominal output voltage ±5% |
Load effect | 0%~100% load, ≤±0.5% |
Source effect | Rated load, ≤±0.2% |
Ripple noise | ≤1% Voutnom(max) |
Conversion efficiency | Nominal input, rated load typ78% |
Temperature coefficient | ≤±0.02%/℃ |
General characteristic
Isolation voltage | Vin~Vout、Vin~FG、Vout~FG All three are 2500VAC/min |
Insulation resistance | ≥100MΩ |
Mean time between failures | ≥1×106h |
Protection function | Short circuit protection (self-recovery), overcurrent protection (self-recovery) |
Operating temperature | −25 °C to +55 °C full load /+55 °C to +85 ° C derated load |
Storage temperature | −40~+105℃ |
Storage humidity | ≤95%RH |
Cooling mode | Natural cooling |

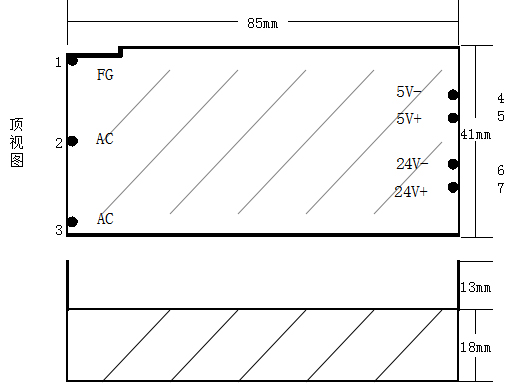

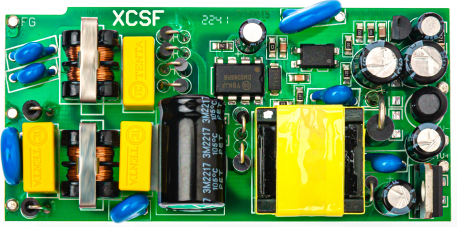

Product diagram

Pin definition
definition |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
Instructions |
FG |
N |
L |
5V- |
5V+ |
24V- |
24V+ |
Typical performance
● Dual output mode
● Total output power 35W
● Output voltage Vo1:24V; Vo2:5V
● Input voltage range 85~265VAC
● Isolation voltage 2500VAC
● Overall dimensions 84*55*24

Input characteristic
Input voltage range | 85~265VAC |
Output characteristic
Output voltage accuracy | Full load range, ±2% |
Load effect | 0%~100% load, ≤±0.5% |
Source effect | Rated load, ≤±0.2% |
Ripple noise | ≤1% Voutnom(max) |
Conversion efficiency | Nominal input, rated load typ.78% |
Temperature coefficient | ≤±0.02%/℃ |
General characteristic
Isolation voltage | Vin to Vout ≥2500VAC/min |
Insulation resistance | ≥100MΩ |
Mean time between failures | ≥1×106h |
Protection function | Short circuit protection (self-recovery), overcurrent protection (self-recovery) |
Operating temperature | −25 °C to +55 ° C full load /+55 °C to +85 °C derated load |
Storage temperature | −40~+105℃ |
Storage humidity | ≤95%RH |
Cooling mode | Natural cooling |

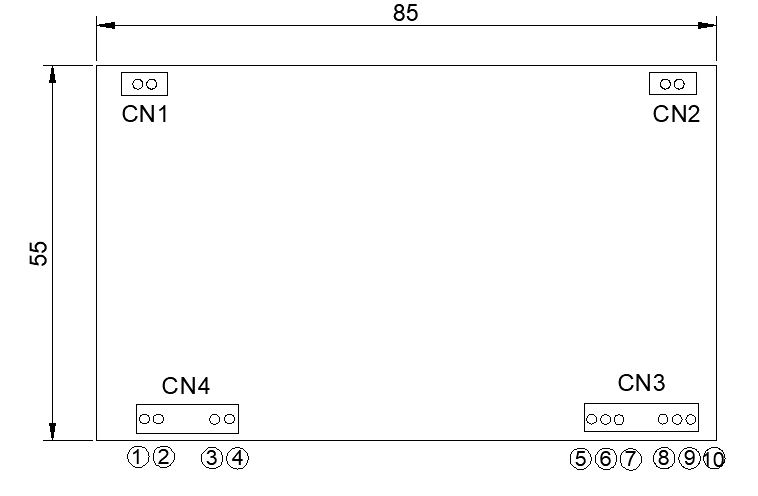

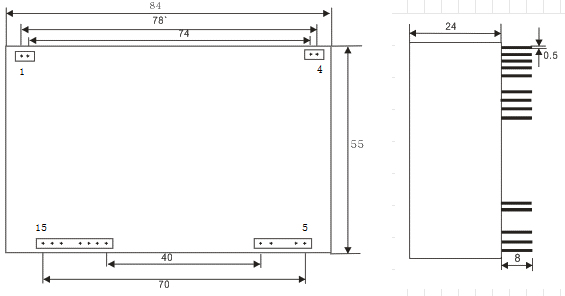

Product diagram

Pin definition
definition |
1~4 |
5,6 |
7,8 |
9,10 |
11 |
12 |
13 |
14 |
15 |
Instructions |
NC |
L |
N |
+Vo2 |
-Vo2 |
NC |
-Vo1 |
+Vo1 |
NC |

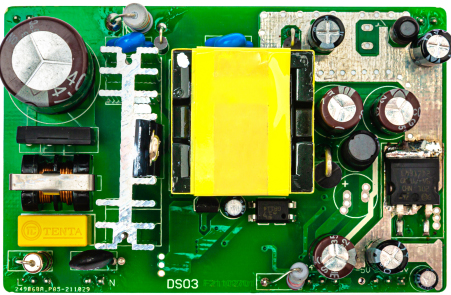

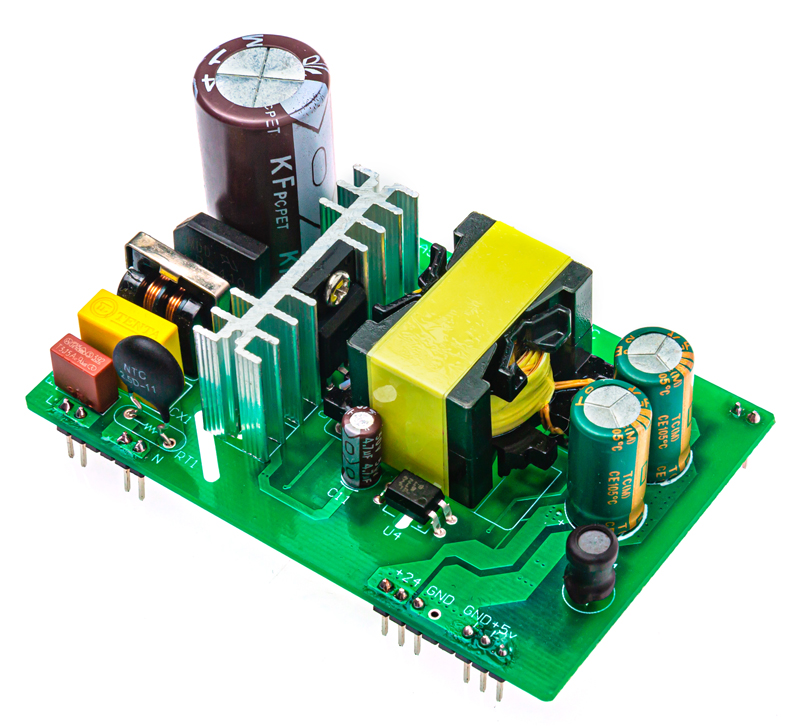

Typical performance
● Dual output mode
● Total output power 55W
● Output voltage/current 24V/2A; 5V/1A
● Input voltage range 85~264VAC
● High isolation voltage 2500VAC
● Open-plate power supply

Input characteristic
Input voltage range | 85~264VAC 120~370VDC |
Output characteristic
Output voltage accuracy | Full load range,±1% |
Load effect | 0%~100%load,±0.5% |
Source effect | Rated load,±0.5% |
Ripple noise | 20MHz bandwidth (peak-to-peak), < 200mVp-p |
Conversion efficiency | 90% |
Temperature coefficient | ≤±0.03%/℃ (0-50℃) |
General characteristic
Output voltage accuracy | input-output:2500VAC |
Load effect | ≥100MΩ |
Source effect | ≥3×10⁵h |
Ripple noise | Short circuit protection, over current protection, over voltage protection |
Conversion efficiency | −30~+70℃ |
Temperature coefficient | −40~+85℃ |
Output voltage accuracy | 10~95%RH |
Load effect | Natural cooling |

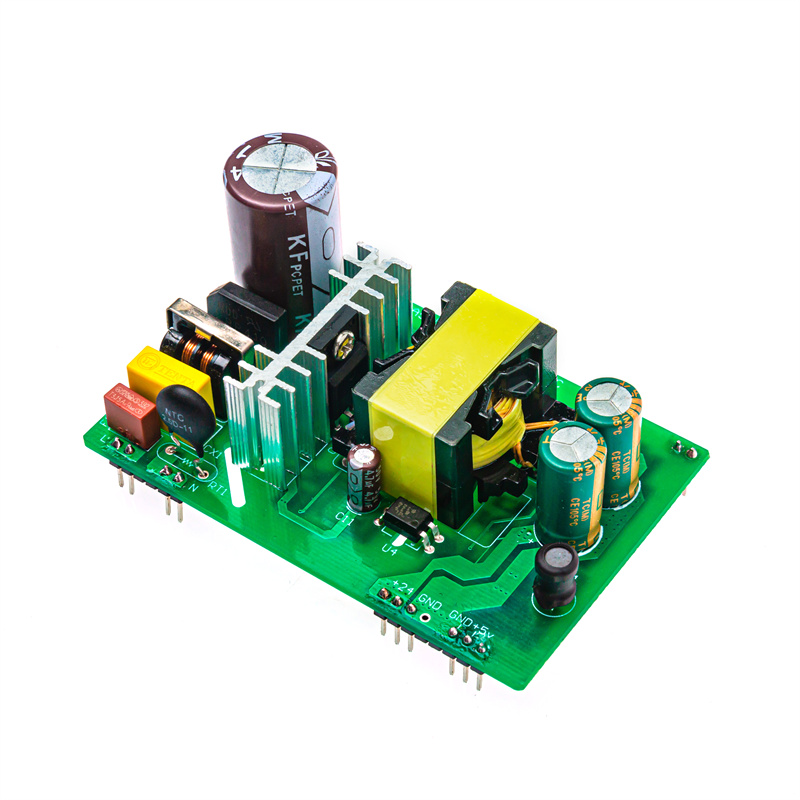

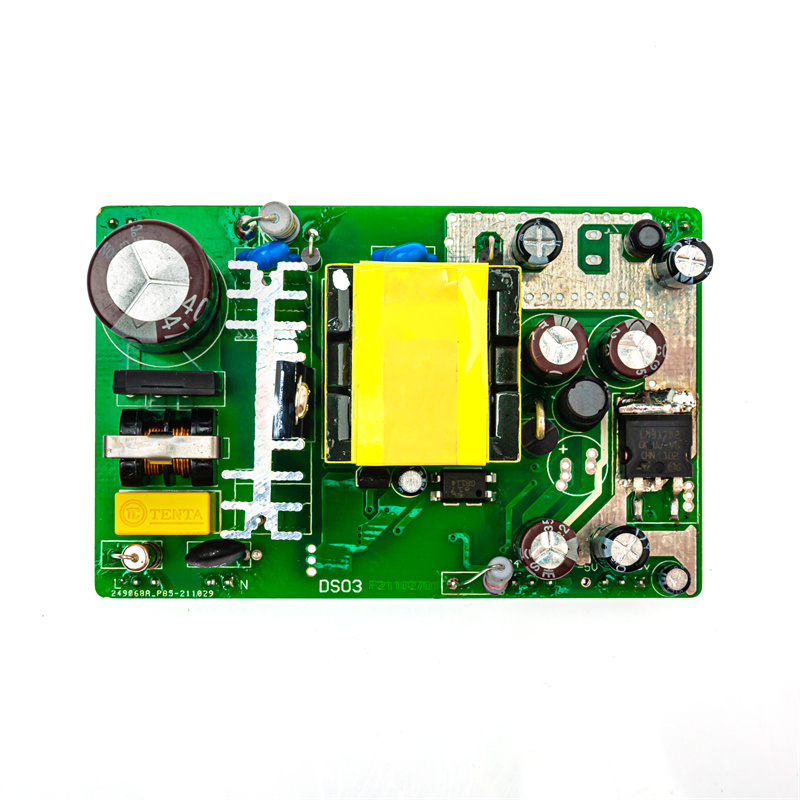

Product diagram

Pin definition
definition |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
Instructions |
L |
L |
N |
N |
+24V |
+24V |
GND |
GND |
+5V |
empty |

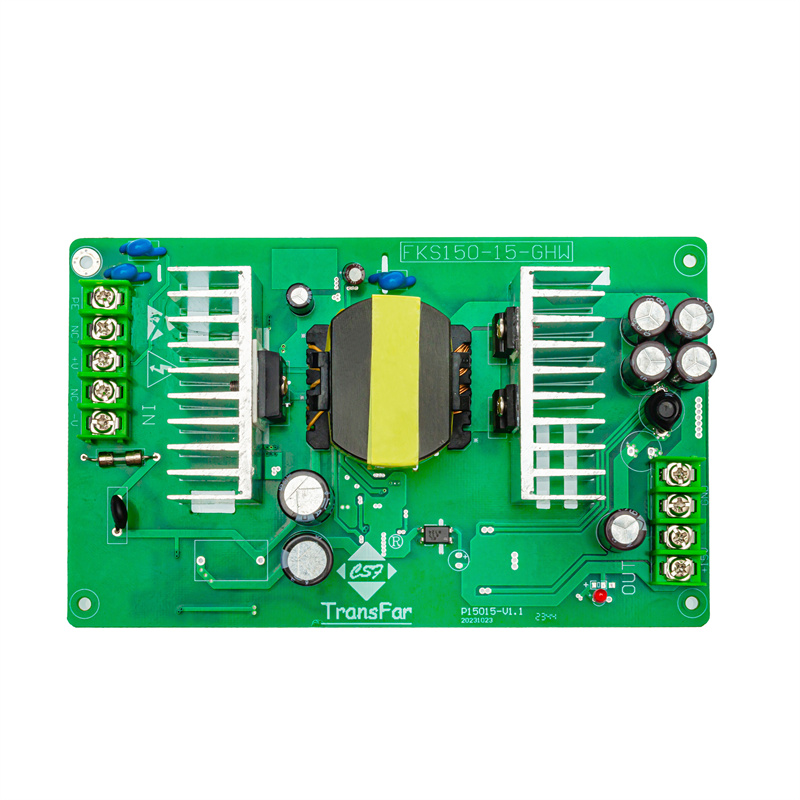

Typical performance
● Single output mode
● Total output power 150W
● Output voltage 15V
● The input voltage ranges from 400 to 850VDC
● High isolation voltage 4000VDC
● Overall dimensions 159*97

Input characteristic
Input voltage range | 400~850VDC |
Output characteristic
Output voltage accuracy | Full load range,±2% |
Load effect | 0%~100%load,≤±0.5% |
Source effect | Rated load,≤±0.2% |
Ripple noise | ≤200mv |
Conversion efficiency | Nominal input, rated load typ.89% |
Temperature coefficient | ≤±0.02%/℃ |
General characteristic
Isolation voltage | The Vin to Vout range is ≥4000VDC/min |
Insulation resistance | ≥100MΩ |
Mean time between failures | ≥1×106h |
Protection function | Short-circuit protection (self-recovery), overcurrent protection (self-recovery) |
Operating temperature | −25 °C to +55 ° C full load /+55 °C to +85 °C derated load |
Storage temperature | −40~+105℃ |
Storage humidity | ≤95%RH |
Cooling mode | Natural cooling |

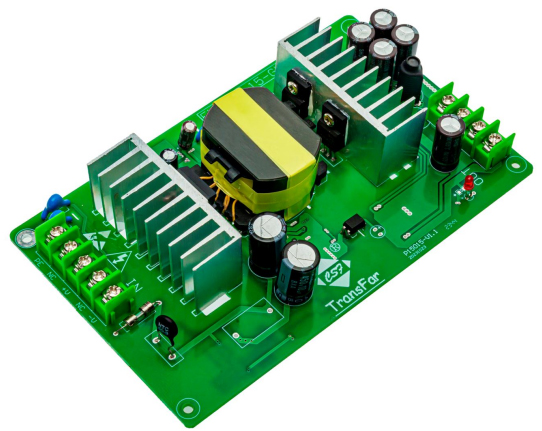

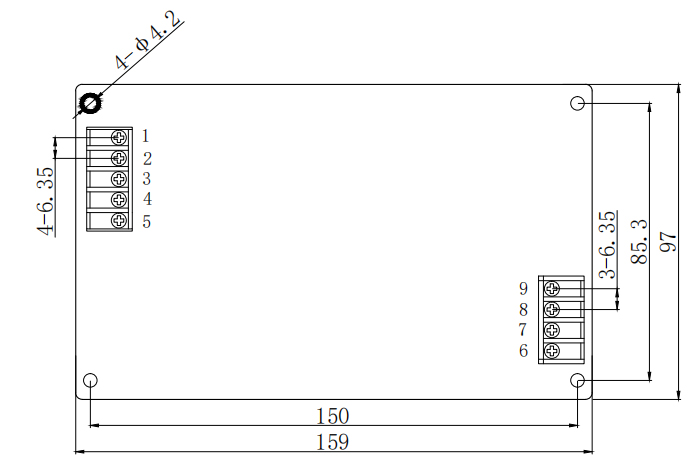

Product diagram

Pin definition
definition |
1 |
2 |
3 |
4 |
5 |
6,7 |
8,9 |
Instructions |
PE |
NC |
+Vin |
NC |
-Vin |
+Vo |
GND |
Typical performance
● Single output mode
● Total output power 120W
● Output voltage 24V
● The input voltage ranges from 650 to 1700VDC
● High isolation voltage 4500VDC
● Overall dimensions 200*189

Input characteristic
Input voltage range | 650~1700VDC |
Output characteristic
Output voltage accuracy | Full load range, ±2% |
Load effect | 0%~100% load, ≤±1% |
Source effect | Rated load, ≤±0.5% |
Ripple noise | ≤500mV |
Conversion efficiency | Nominal input, rated load typ82% |
Temperature coefficient | ≤±0.02%/℃ |
General characteristic
Isolation voltage | The Vin to Vout range is ≥4500VDC/min |
Insulation resistance | ≥100MΩ |
Mean time between failures | ≥1×106h |
Protection function | Short-circuit protection (self-recovery), overcurrent protection (self-recovery) |
Operating temperature | −25 °C to +55 ° C full load /+55 °C to +85 °C derated load |
Storage temperature | −40~+105℃ |
Storage humidity | ≤95%RH |
Cooling mode | Natural cooling |

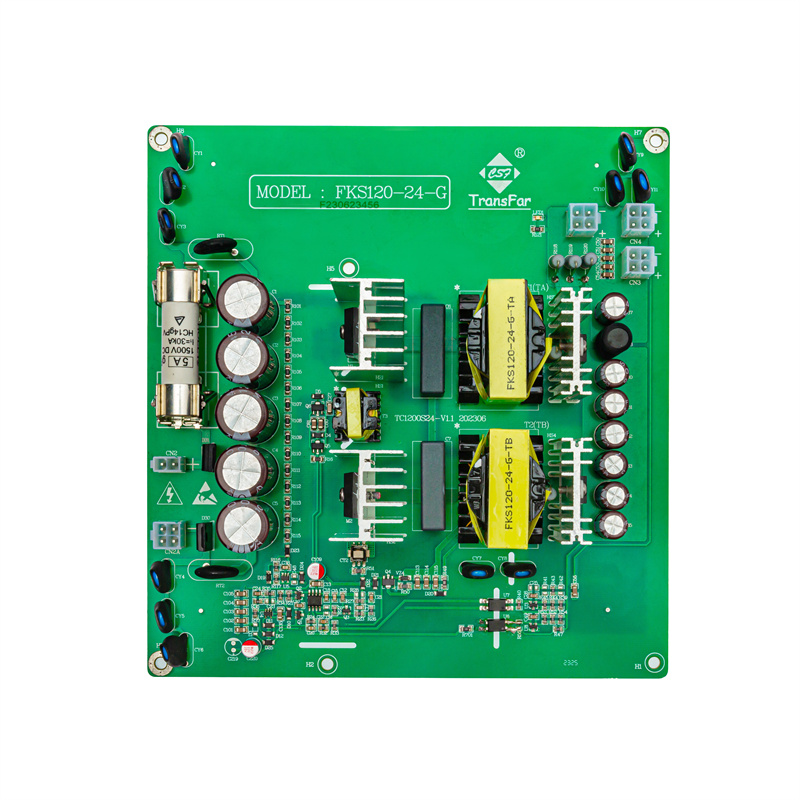

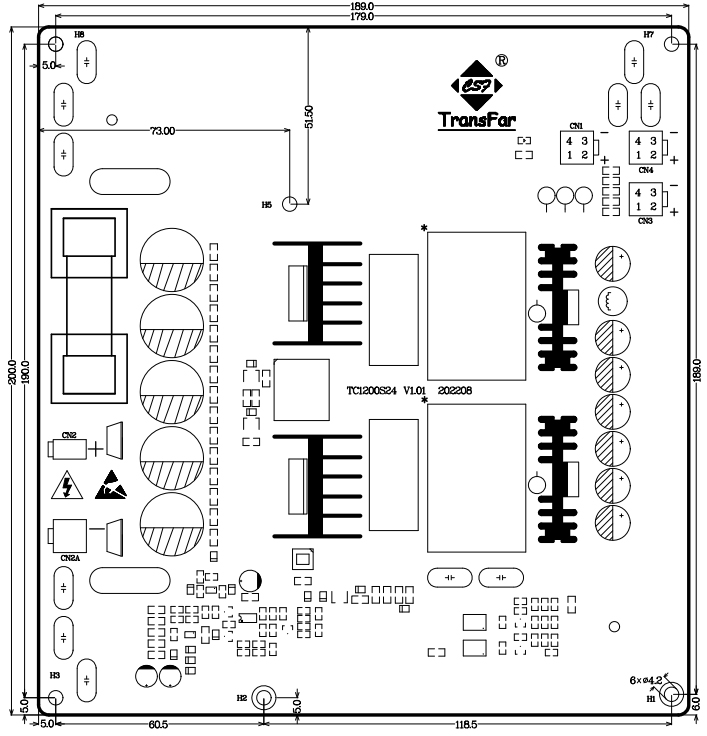

Product diagram

Pin definition
definition |
CN2 |
CN2A |
VN1/CN3/CN4-1,2 |
VN1/CN3/CN4-3,4 |
H3/H7/H8 |
Instructions |
Input positive |
Input negative |
Output positive |
Output minus |
Protected area/chassis |

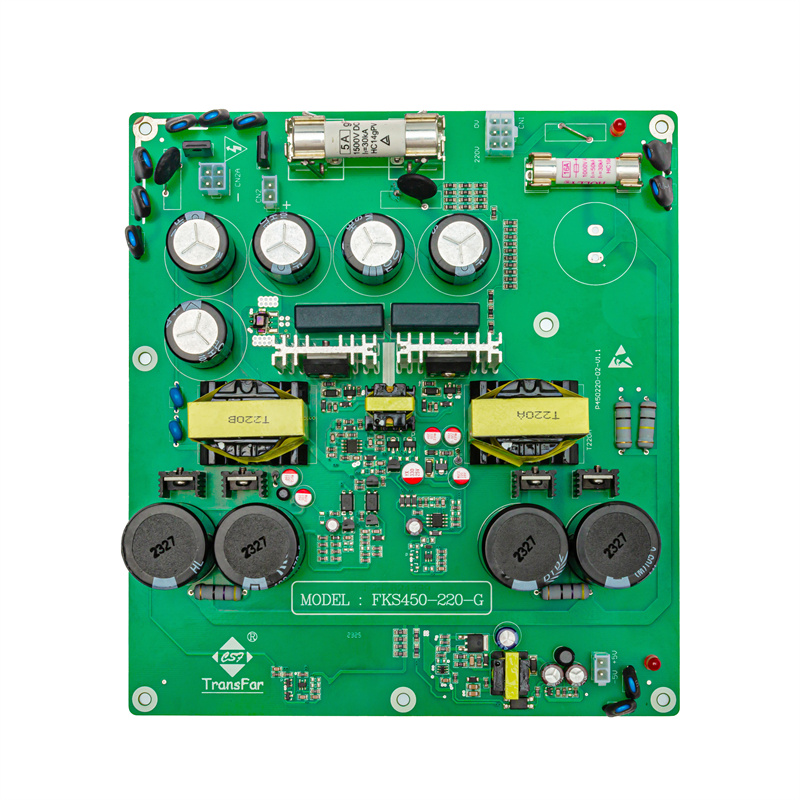

Typical performance
● Single output mode
● Total output power 450W
● Output voltage 220V
● The input voltage ranges from 650 to 1700VDC
● High isolation voltage 4500VDC
● Dimensions 220*200

Input characteristic
Input voltage range | 650~1700VDC |
Output characteristic
Output voltage accuracy | Full load range, ±2% |
Load effect | 0%~100% load, ≤±1% |
Source effect | Rated load, ≤±2% |
Ripple noise | ≤500mV |
use | 500A air switch for special use |
Temperature coefficient | ≤±0.02%/℃ |
General characteristic
Isolation voltage | The Vin to Vout range is ≥4500VDC/min |
Insulation resistance | ≥100MΩ |
Mean time between failures | ≥1×106h |
Protection function | Short-circuit protection (self-recovery), overcurrent protection (self-recovery) |
Operating temperature | |
Storage temperature | −40~+105℃ |
Storage humidity | ≤95%RH |
Cooling mode | Natural cooling |

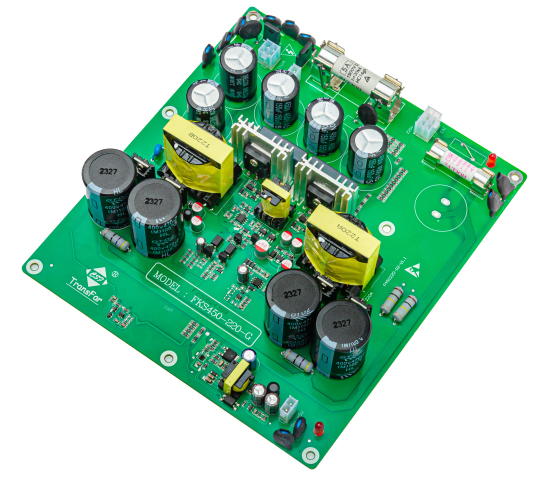

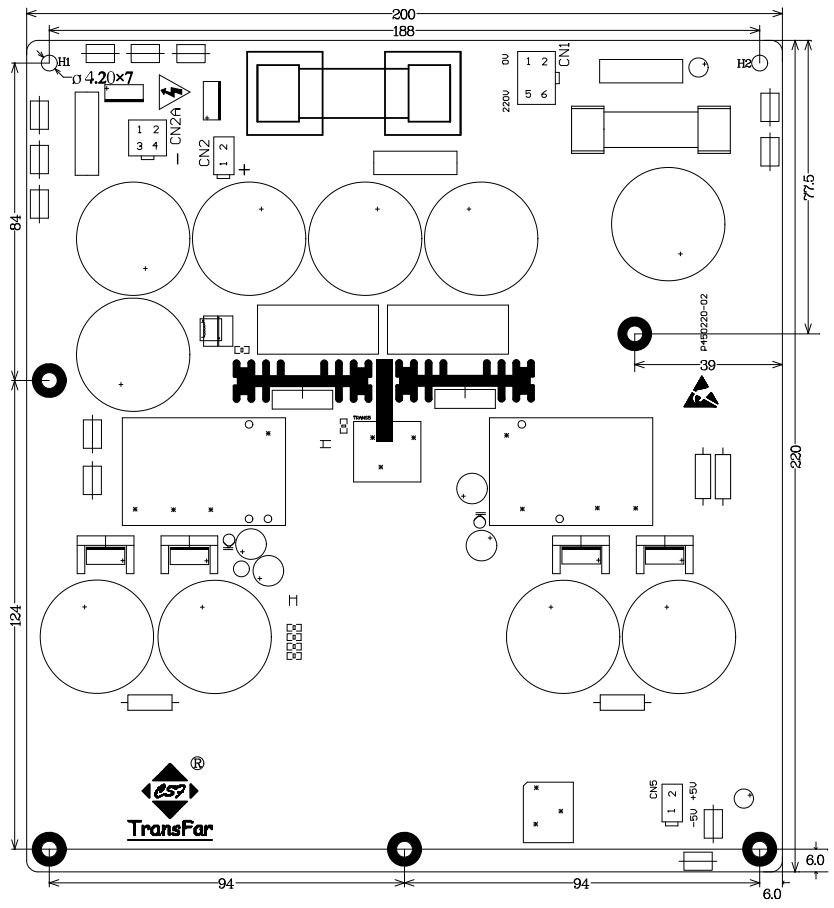

Product diagram

Pin definition
definition |
CN2 |
CN2A |
CN1-5,6 |
CN5-2 |
CN1-1,2 |
CN5-1 |
H1/H2 |
Instructions |
Input positive | Input negative |
Output positive |
Input negative |
Protected area/chassis |
