Current Transformer
01

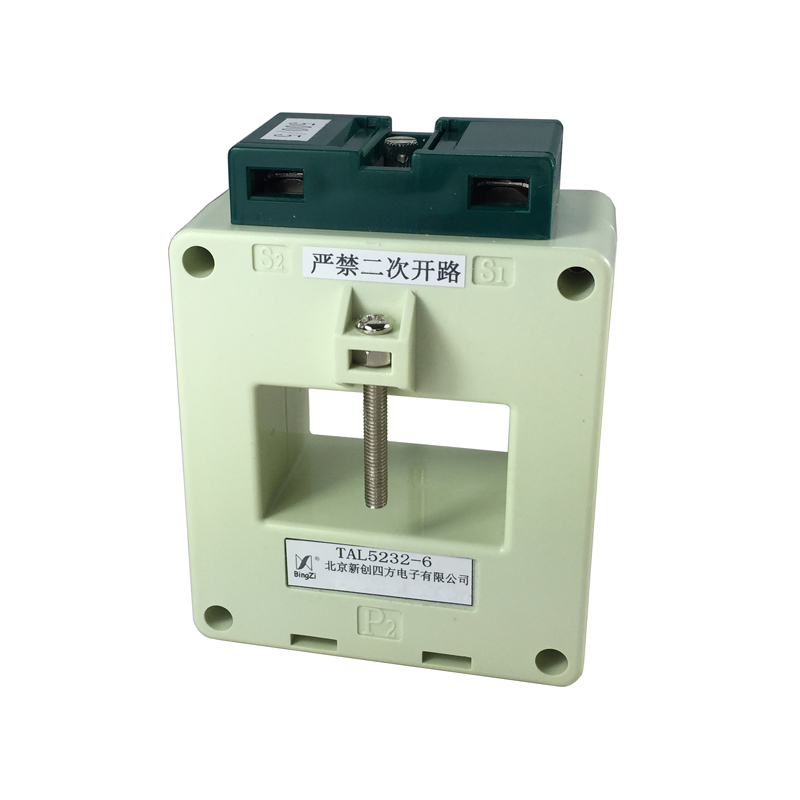

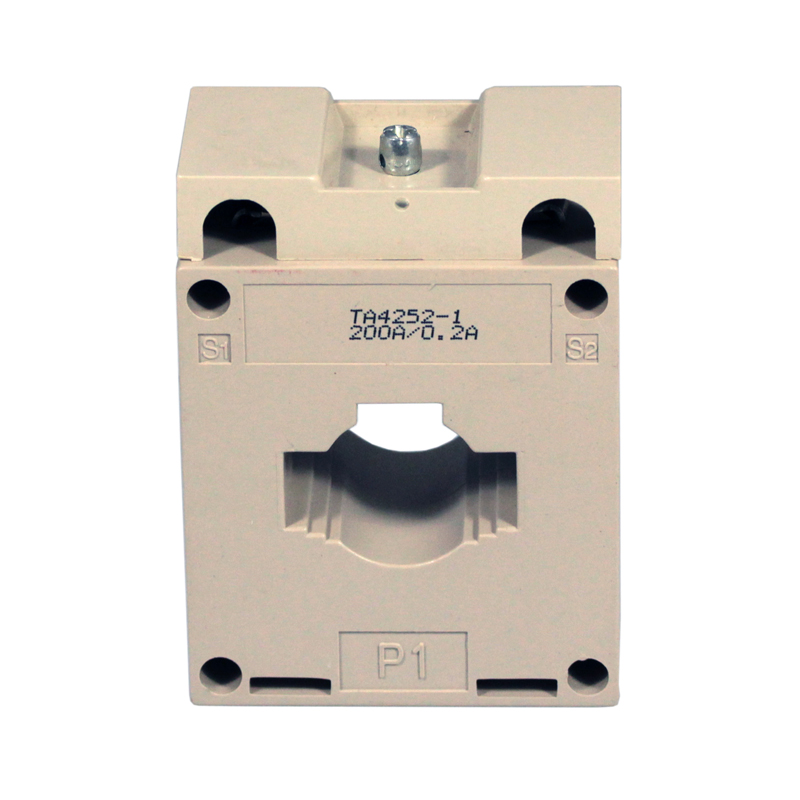

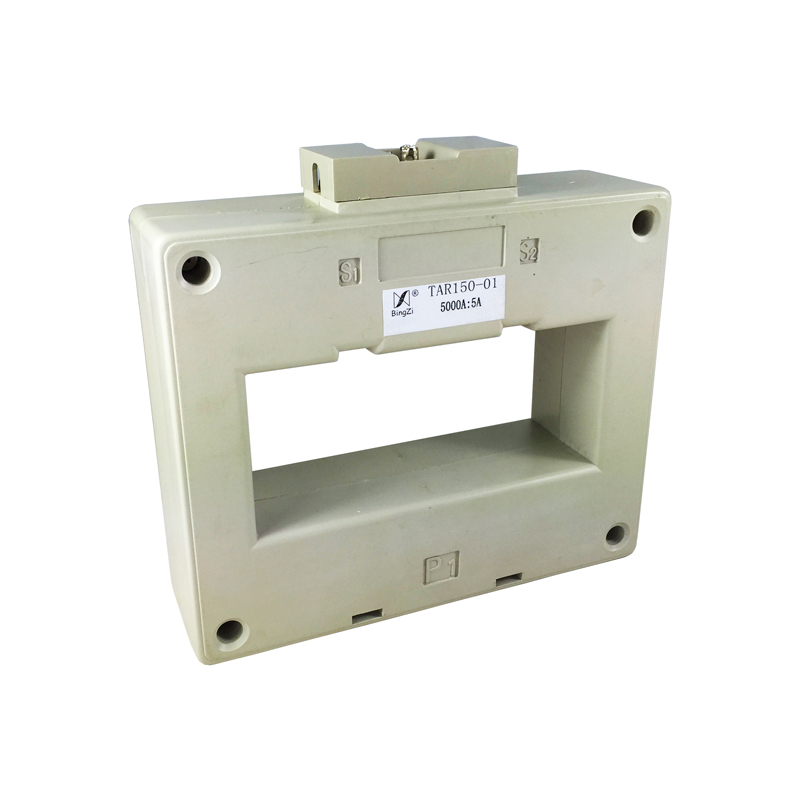

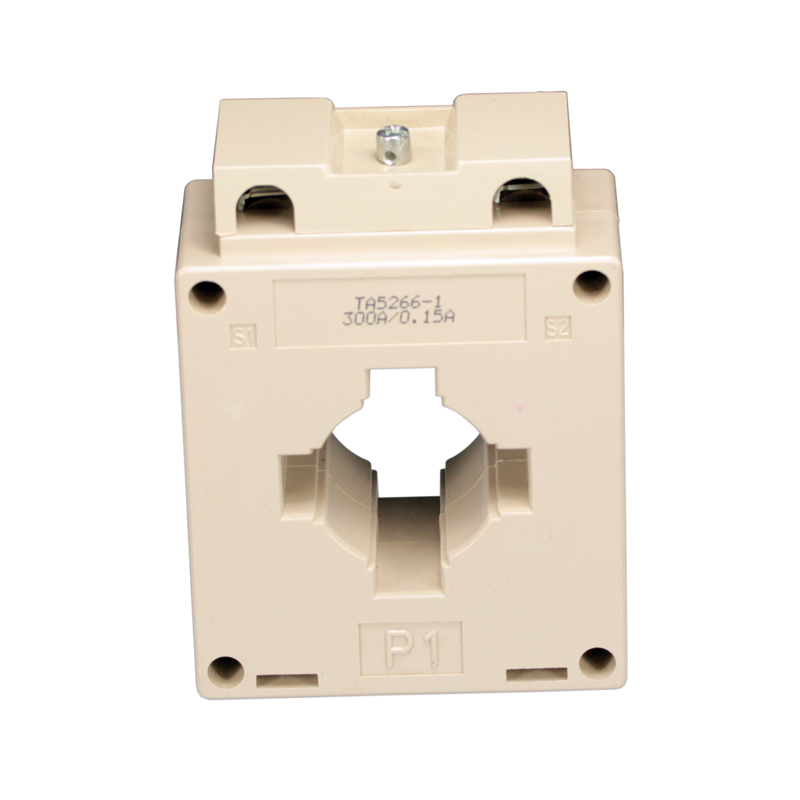

The Box-Type Current Transformer
product description
1. Vertical through-hole design, easy and flexible to install, can be fixed on the busbar or on the base plate;
2. Compatible with various forms of busbars, such as flat bars, round busbars, or cables;
3. Output terminals are standard terminals with screw-clamp connections, convenient for on-site wiring in engineering projects;
4. Box-type structure, enclosed in plastic casing, aesthetically pleasing appearance;
5. Ambient temperature: -55℃~85℃;
6. Insulation heat resistance rating: Class B (130℃);
7. Insulation resistance: greater than 1000MΩ under normal conditions;
8. Dielectric strength: 4kV, 50Hz for 1 minute;
9. Flame retardancy: compliant with UL94-V0 rating;
10. Operating frequency: 20Hz~1kHz.
