The Leakage Current Transformer

Current Transformer

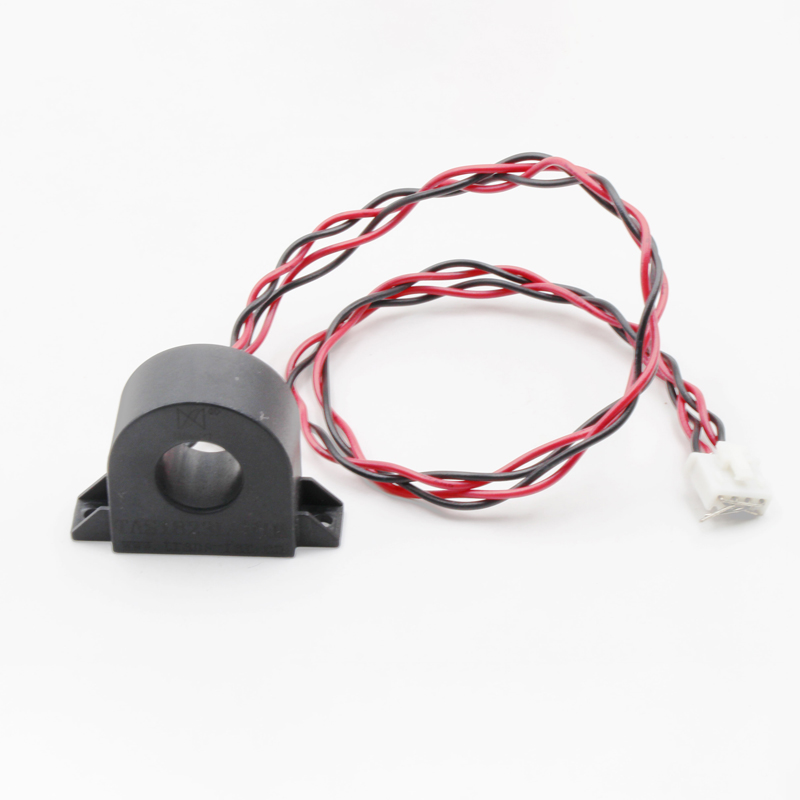

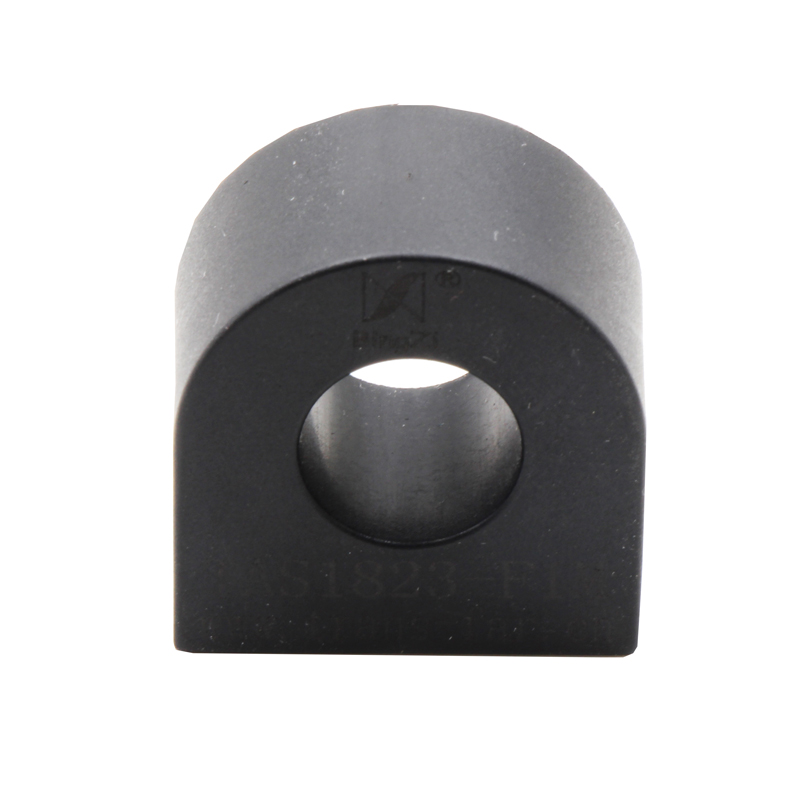

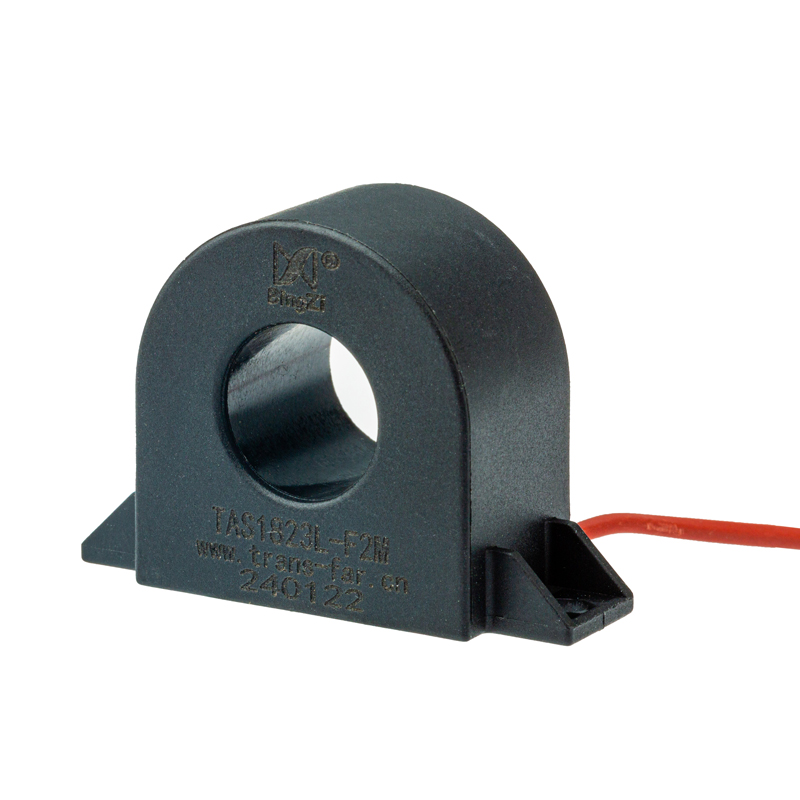

The Leakage Current Transformer

A leakage current transformer precisely monitors small leakage currents, covering a wide range of current levels. Its high sensitivity ensures rapid response to leakage situations, safeguarding system safety. Available in various specifications, it is adaptable to a wide range of complex application scenarios. With PCB soldering installation, its fully enclosed design ensures high mechanical strength and excellent environmental resistance, along with outstanding voltage isolation. Its appearance is both elegant and professional, making it not only highly functional but also a testament to professional quality. It is an essential high-performance component in electrical safety monitoring.

    product description

    1. Horizontal threading type, flexible installation methods, PCB board soldering installation.

    2. Fully enclosed, good mechanical and environmental resistance, strong voltage isolation capability, and aesthetically pleasing appearance.

    3. Ambient temperature: -55℃ to 85℃.

    4. Insulation thermal class: Class B (130℃).

    5. Insulation resistance: >1000MΩ at normal state.

    6. Dielectric strength: 4kV, 50Hz/1min.

    7. Flammability: Complies with UL94-Vo standard.

    8. Operating frequency: 20Hz to 20kHz.
