Current Transformer
01

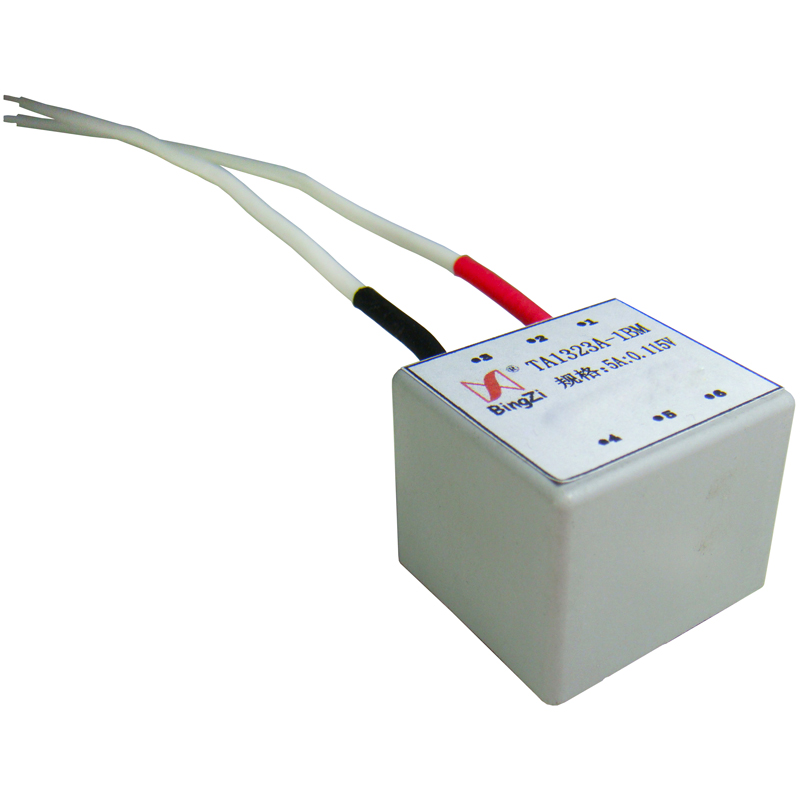

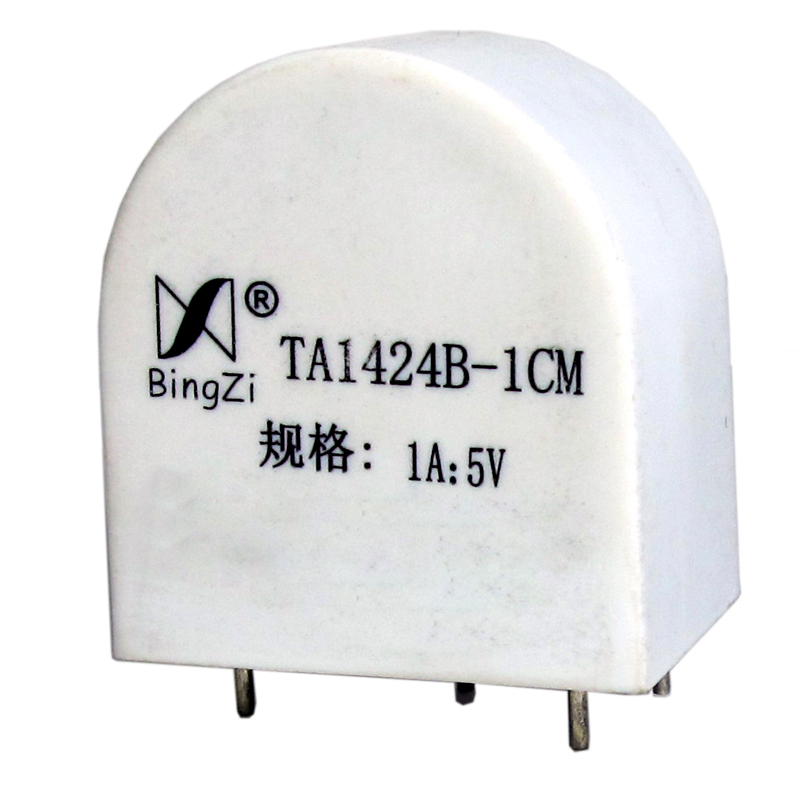

The Voltage Output Type Current Transformer
description
1. Direct weld installation on printed circuit boards, offering an attractive appearance.
2. Effectively suppresses interference from primary side current rapid transient pulses.
3. Reliable insulation between the primary winding, secondary winding, and the shield.
4. Built-in precision resistor for direct measurement, ensuring ease of use.
5. Fully enclosed design with excellent mechanical and environmental resistance, strong voltage isolation, and safety reliability.
6. Ambient temperature: -40°C to 85°C.
7. Insulation heat resistance class: Grade B (130°C).
8. Insulation resistance: Greater than 1000MΩ under normal conditions.
9. Dielectric strength: 3kV, 50Hz for 1 minute.
10. Flame retardancy: Compliant with UL94-V0 standard.
11. Operating frequency: 20Hz to 20kHz.
