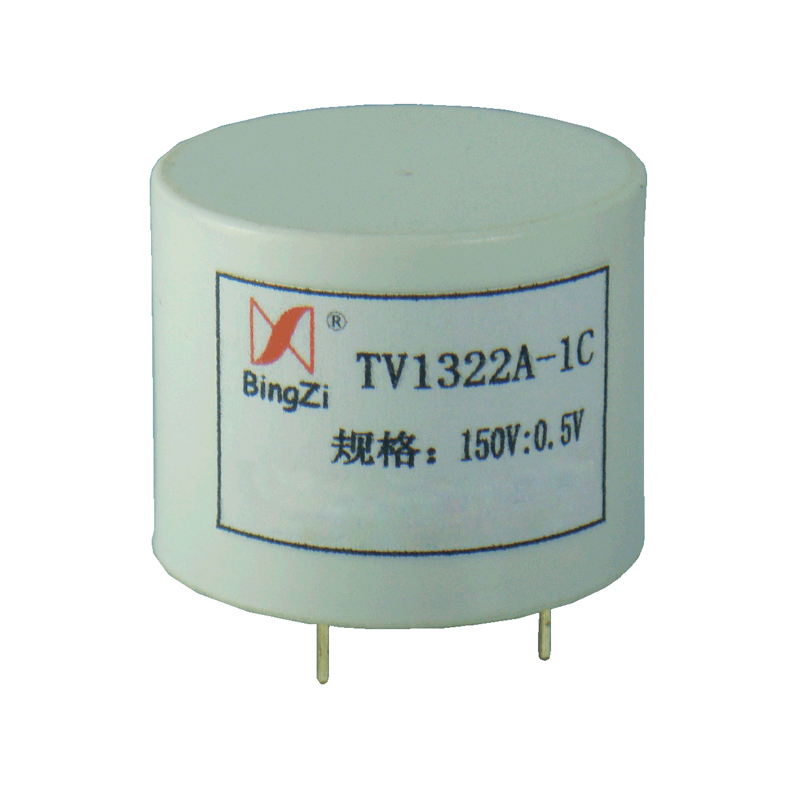

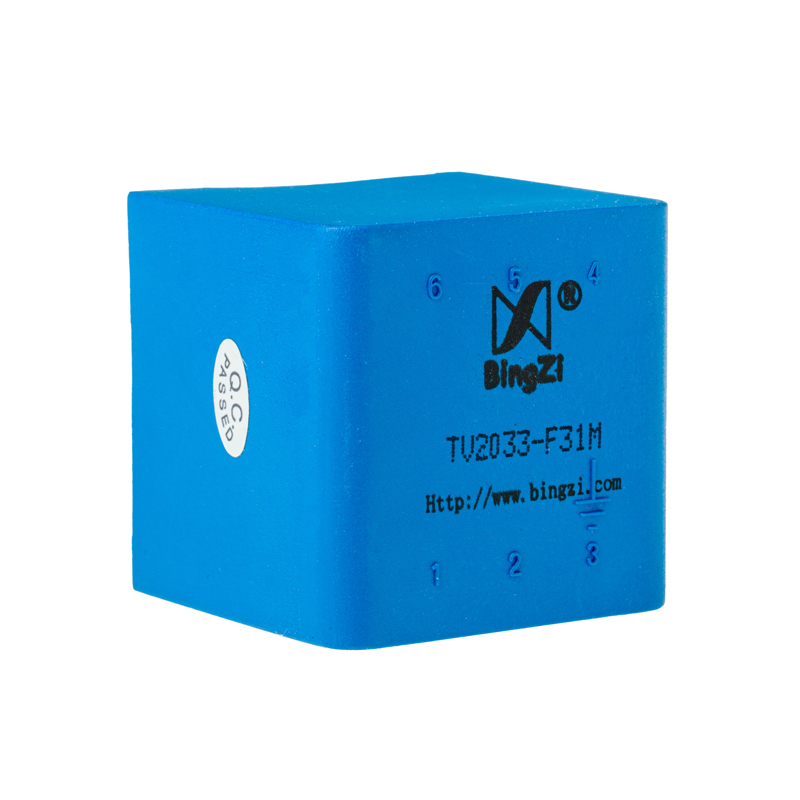

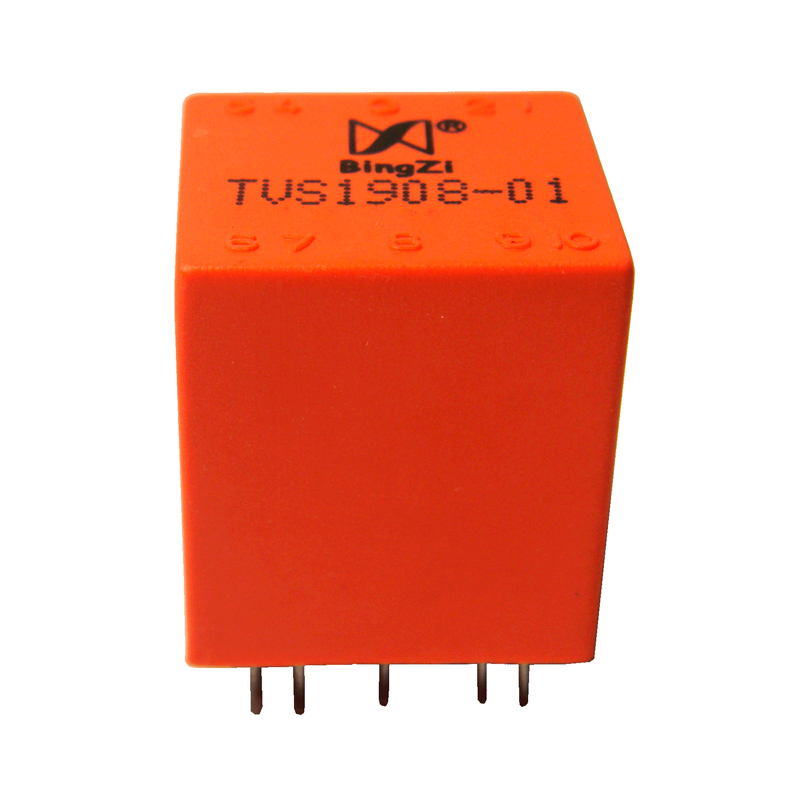

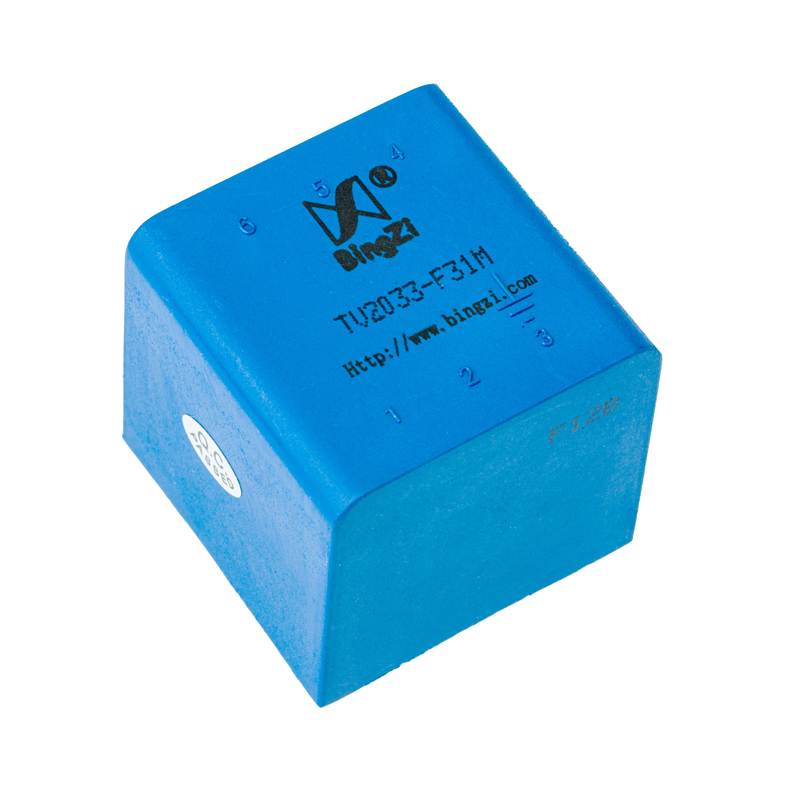

Voltage Converter - Efficient and Stable Power Conversion Solutions

The voltage converter operates in two modes: "active" and "passive". The output signal can be AC or DC. The input coil can be connected in two ways: via PCB soldering or via flexible wire. The principle is similar to that of a current-mode voltage transformer, but in this case the I/V converter and transformer are integrated in one unit. This integration produces fixed values for the nominal input and output voltages.

product details

product description

1. Ambient temperature: -55℃ to 85℃;

2. Insulation thermal class: Class B (130℃);

3. Insulation resistance: Greater than 1000MΩ under normal conditions;

4. Dielectric strength: 2kV, 50Hz/1min;

5. Flammability: Compliant with UL94-V0 rating;

6. Operating frequency: 20Hz to 10kHz.
